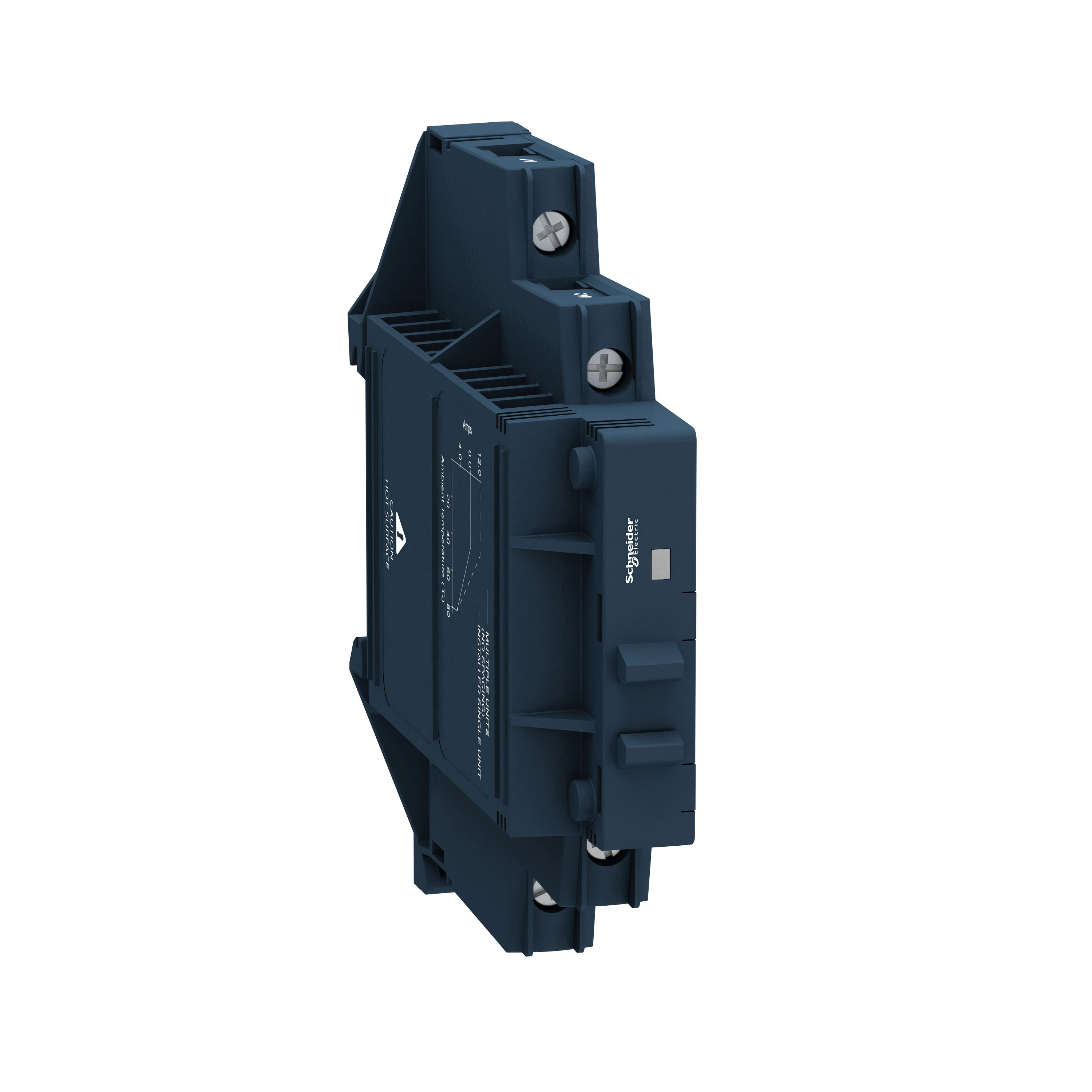

Harmony Relay Przekaźnik półprzewodnikowy wejście 4 32VDC/wyjście 48/600VAC, 12A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SSM1A312BD |
| GTIN(EAN) | 3606480579523 |
| Price unit | piece |
| Catalog price | 400,37 zł (325,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik półprzewodnikowy z wbudowanym radiatoerm dla wydłużenia jego żywotności. Montowany na 35mm szynie DIN. Wyposażony w bezpieczne złącze oraz wskaźnik informujący o jego stanie.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 94 g |
| ETIM class: | Solid state relay |
| Rated operation current Ie at AC-3: | 12 A |
| Rated operation current Ie at AC-1: | 12 A |
| Voltage type for actuating: | AC/DC |
| Rated control supply voltage AC 60 Hz: | 48 - 600 V |
| Rated control supply voltage AC 50 Hz: | 48 - 600 V |
| Rated control supply voltage DC: | 4 - 32 V |
| Number of phases: | 1 |
| Switching at zero-crossing: | no |
| Rated operation current Ie at AC-53b: | 12 A |
| Modular version: | yes |
| Rated operation current Ie at AC-51: | 12 A |
| Rated operation current Ie at AC-53a: | 12 A |
| Operating voltage: | 48 - 660 V |
