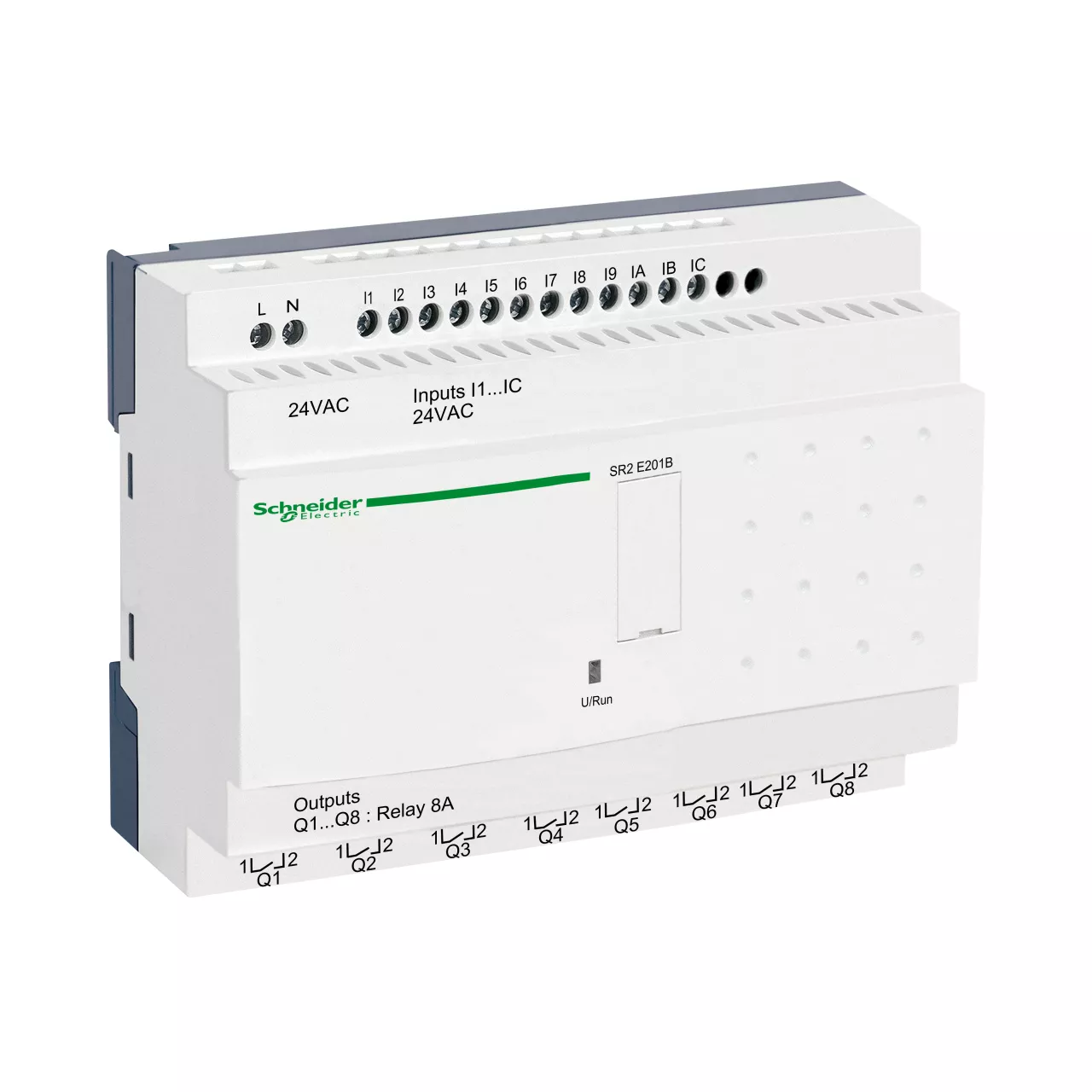

Zelio Logic, przekaźnik kompaktowy, zegar, 12 wejść, 8 wyjść, 24VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SR2E201B |
| GTIN(EAN) | 3389110549843 |
| Price unit | piece |
| Catalog price | 1 694,94 zł (1 378,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten produkt należy do Smart Relay - Zelio Logic SR2/SR3, oferty prostych systemów automatyki od 10 do 40 wejśc/wyjść. Ten kompaktowy inteligentny przekaźnik Zelio Logic zawiera 20 wejść/wyjść, wyświetlacz lokalny, od 0 do 240 linii schematu sterowania programowania drabinkowego i od 0 do 500 linii schematu sterowania programowania FBD. Jest to moduł o znamionowym napięciu zasilania 24V AC i czasie cyklu od 6ms do 90ms. Oferuje 12 wejść dyskretnych z napięciem 24V AC oraz 4 wyjścia przekaźnikowe z zakresem napięć od 24V do 250V AC oraz od 5V do 30V DC. Jest to produkt o stopniach ochrony IP20 i IP40. Waży 0.35 kg. Głównym zastosowaniem tego modułu jest sektor przemysłowy i budowlany/usługowy. Ten produkt posiada certyfikaty C-Tick, GL, UL, CSA i GOST. Spełnia normy EN/IEC 60068-2-6 Fc i EN/IEC 61000-4-11. Łatwy w użyciu, Zelio Logic zapewnia prawdziwą alternatywę dla rozwiązań opartych na logice przewodowej lub specjalnych kartach.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 328 g |
| ETIM class: | Logic module |
| Number of digital inputs: | 12 |
| Suitable for safety functions: | no |
| Number of digital outputs: | 8 |
| Number of analogue inputs: | 0 |
| Supporting protocol for LON: | no |
| Number of analogue outputs: | 0 |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| IO link master: | no |
| Explosion safety category for dust: | None |
| Width: | 124.6 mm |
| With time switch clock: | yes |
| Expansion device: | no |
| Expandable: | no |
| With relay output: | yes |
| Basic device: | yes |
| Radio standard GPRS: | no |
| Explosion safety category for gas: | None |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Performance level according to EN ISO 13849-1: | None |
| Wall mounting/direct mounting: | yes |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| With display: | no |
| Rack-assembly possible: | no |
| Supporting protocol for KNX: | no |
| Front built-in possible: | yes |
| Supporting protocol for Data-Highway: | no |
| Supply voltage AC 60 Hz: | 24 - 24 V |
| Supply voltage AC 50 Hz: | 24 - 24 V |
| Supporting protocol for Modbus: | no |
| Switching current: | 8 A |
| Rail mounting possible: | yes |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Appendant operation agent (Ex ib): | no |
| Supporting protocol for ASI: | no |
| Degree of protection (IP): | IP20 |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Appendant operation agent (Ex ia): | no |
| Depth: | 59.5 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Voltage type (supply voltage): | AC/DC |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Redundancy: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 90 mm |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 1 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of interfaces PROFINET: | 0 |
| Supporting protocol for SERCOS: | no |
| SIL according to IEC 61508: | None |
| With optical interface: | no |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces industrial Ethernet: | 0 |
