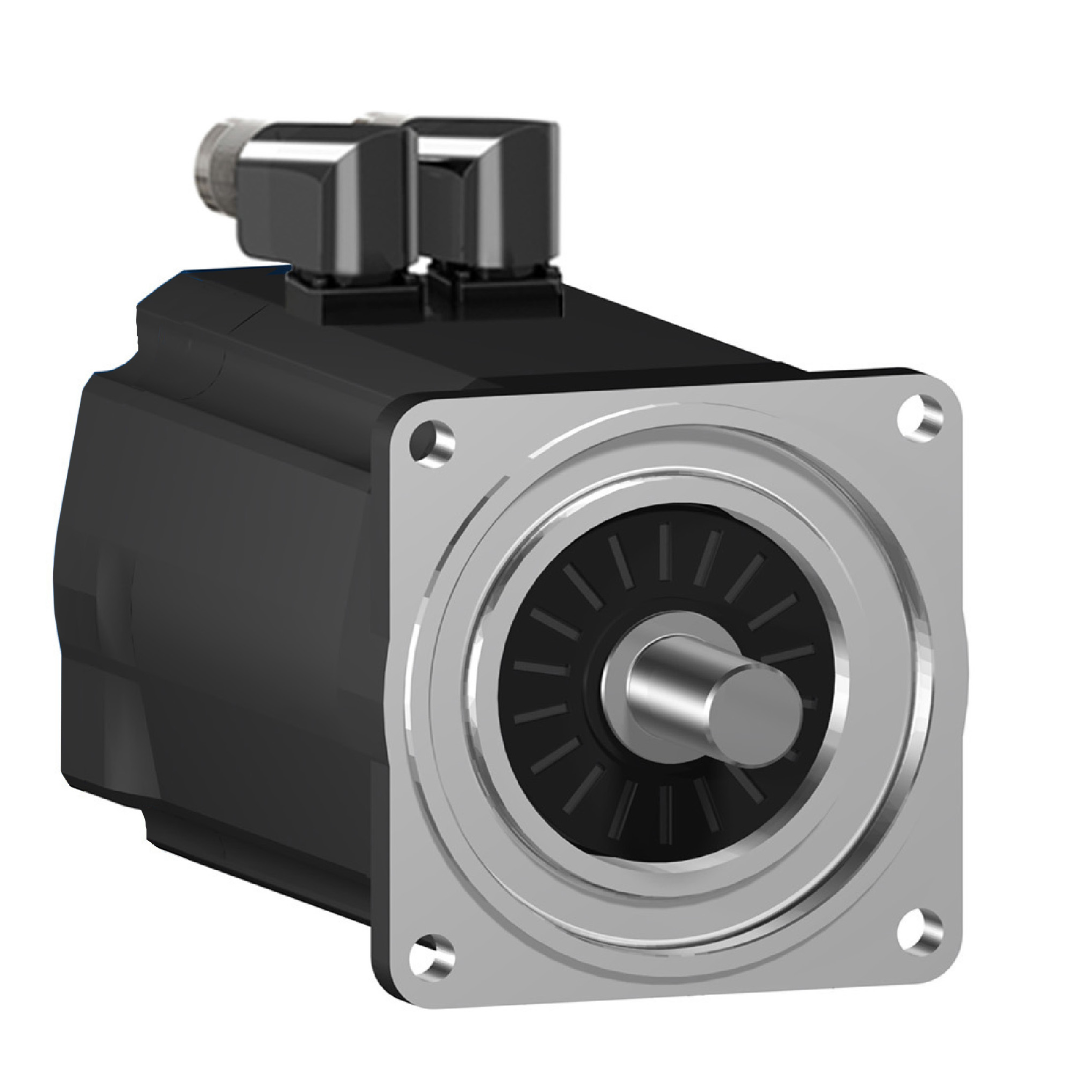

Schneider Electric Serwosilnik SH3 140mm 33,4Nm hamulec złącze kątowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SH31404P11F2100 |
| GTIN(EAN) | 3606481550675 |
| Price unit | piece |
| Catalog price | 30 697,11 zł (24 957,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 28,9 kg |
| ETIM class: | Electric motor |
| Voltage type: | AC |
| Housing material: | Other |
| Rated rotational speed at rated frequency: | 3000 1/min |
| Motor efficiency class: | Other |
| With anti-condensation: | no |
| Number of poles: | 6 |
| Degree of protection (IP): | Other |
| Nominal torque: | 0.26 Nm |
| Construction type: | Other |
| Model: | Other |
| Rated frequency: | 50 - 60 Hz |
| Operating temperature: | 0 - 50 °C |
| With positive temperature coefficient resistor (PTC): | no |
| Shaft end type: | Other |
| Vacuum pressure impregnation (VPI): | Other |
| With resistance temperature detector (RTD): | no |
| Intrinsic safety (IS): | None |
| Suitable for frequency control: | no |
| Overload capability: | no |
| Cooling method: | Other |
| Duty cycle: | Other |
| Rated performance at rated frequency: | 0.26 kW |
| Rated current: | 1.78 A |
| Rated voltage: | 115 V |
| Number of phases: | 3 |
| Insulation class according to IEC: | Other |
| Starting current ratio: | 0 |
| Starting torque ratio: | 0 |
| Breakdown torque ratio: | 0 |
| Bearing: | Other |
