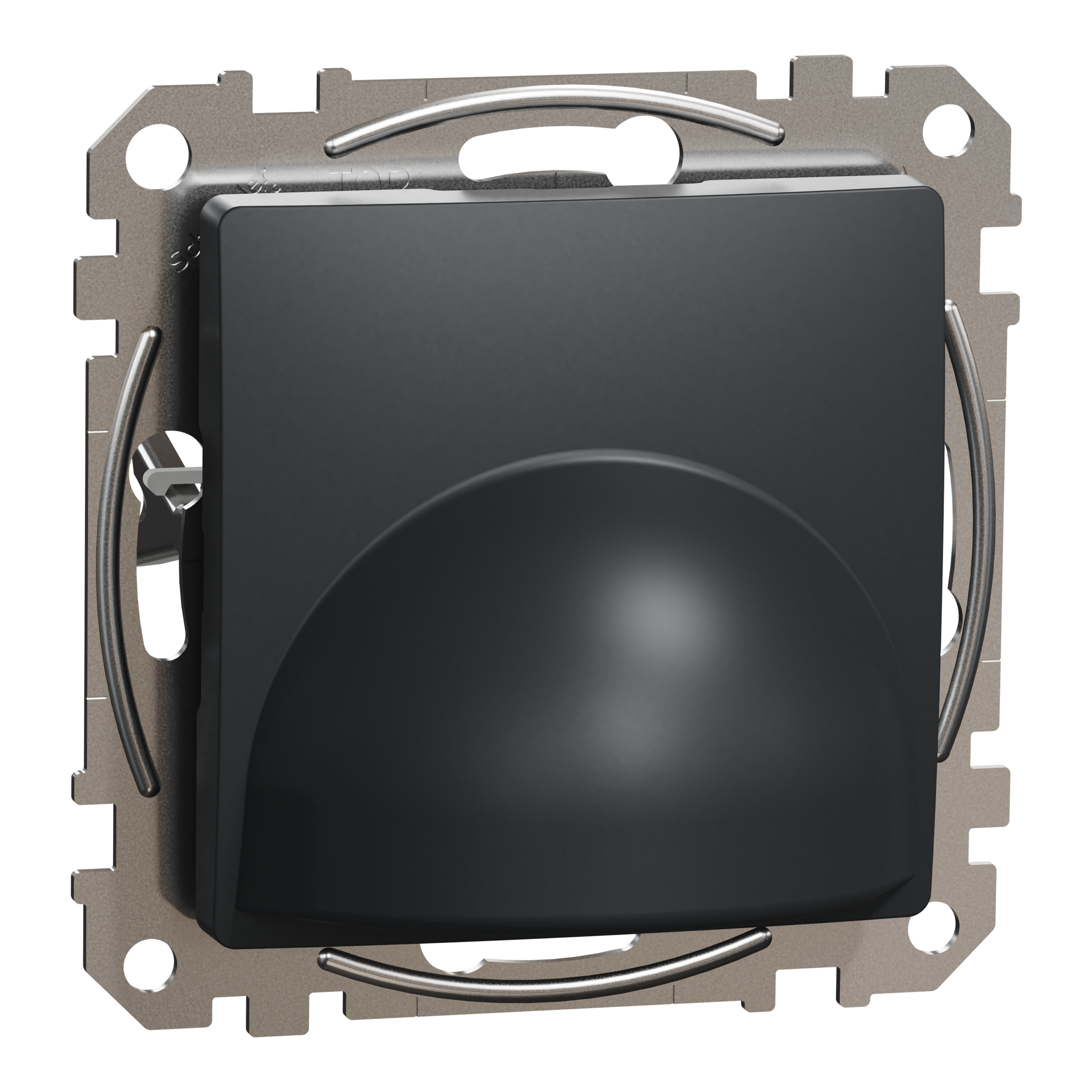

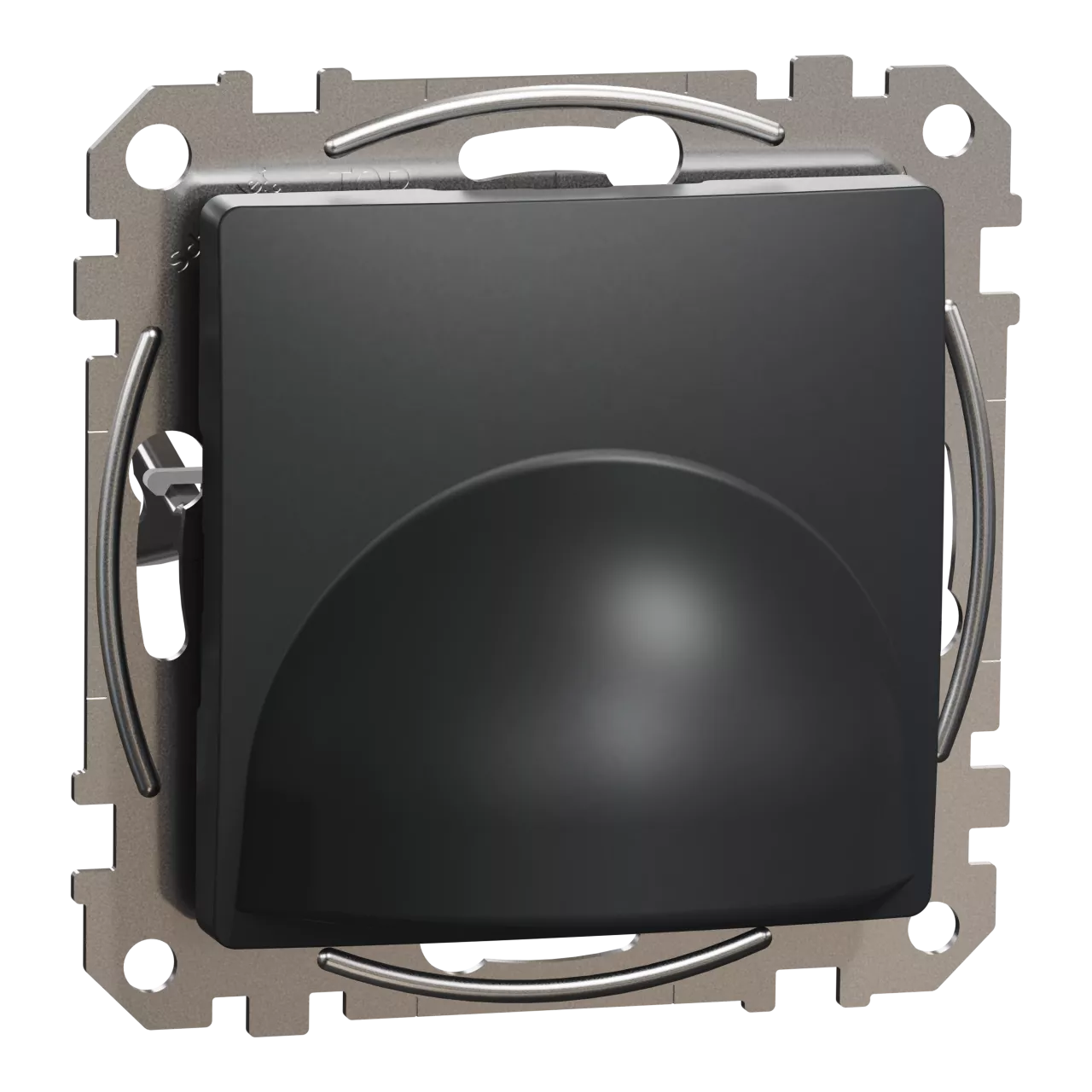

Wypust kablowy, Sedna Design & Elements, czarny antracyt
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SDD114903 |
| GTIN(EAN) | 3606481480293 |
| Price unit | piece |
| Catalog price | 56,36 zł (45,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wypust kablowy, czarny antracyt, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Wypust kablowy ma malowane wykończenie powierzchni w kolorze czarnego antracytu i posiada następujące wymiary: szerokość 73 mm, wysokość 58 mm, głębokość 73 mm, głębokość wystawania 31 mm. Długość izolacji zdejmowanej z kabla to 13 mm. Wypust charakteryzuje się stopniem ochrony IP20. Do produkcji wypustu wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zacis ki bezśrubowe. Uwaga: produkty Sedna Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 4 |
| Gross weight: | 85 g |
| ETIM class: | Insert/cover for communication technology |
| Material: | Plastic |
| Surface protection: | Other |
| With hinged lid: | no |
| With strain relief: | yes |
| Luster terminal: | no |
| With lighting: | no |
| Support ring: | no |
| Suitable for degree of protection (IP): | IP20 |
| RAL-number (similar): | 7021 |
| Utilization: | Cable outlet |
| Device depth: | 73 mm |
| Min. depth of built-in installation box: | 31 mm |
| Transparent: | no |
| Colour: | Anthracite |
| Imprintable label: | Without indication field |
| Device width: | 73 mm |
| Device height: | 58 mm |
| Type of fastening: | Mounting with claw and screw |
| Surface finishing: | Matt |
| Shielded buses: | no |
| With dust cover: | no |
| With imprint: | no |
| Mounting method: | Flush-mounted |
| Halogen free: | yes |
| Material quality: | Other |
| Outlet direction: | Bottom |
| Shielded housing: | no |
| Suitable for number of connectors: | 3 |
| Assembly arrangement: | Basic element with central cover plate |
| With buses/couplings: | no |
| Impact strength: | IK02 |
| Anti-bacterial treatment: | no |
