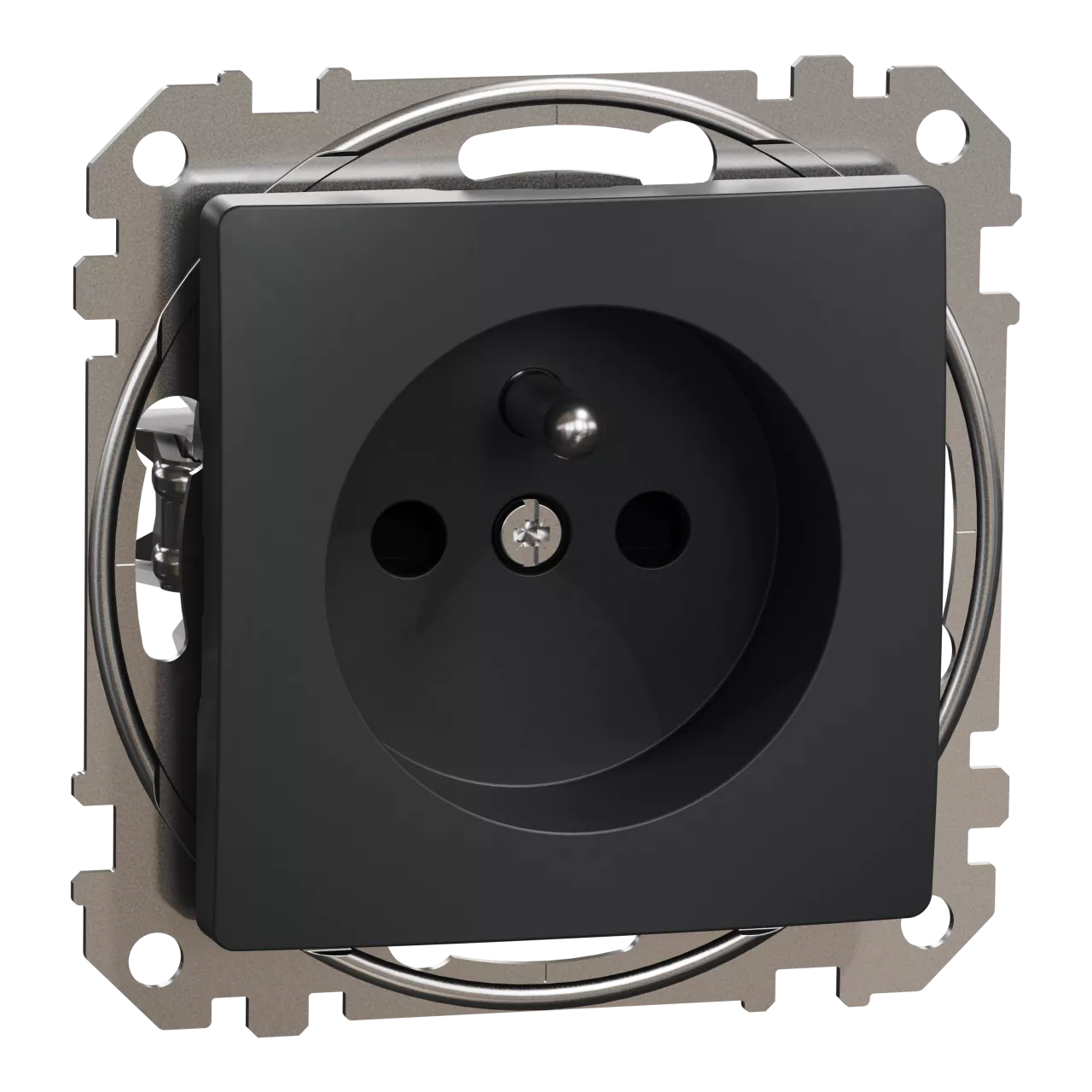

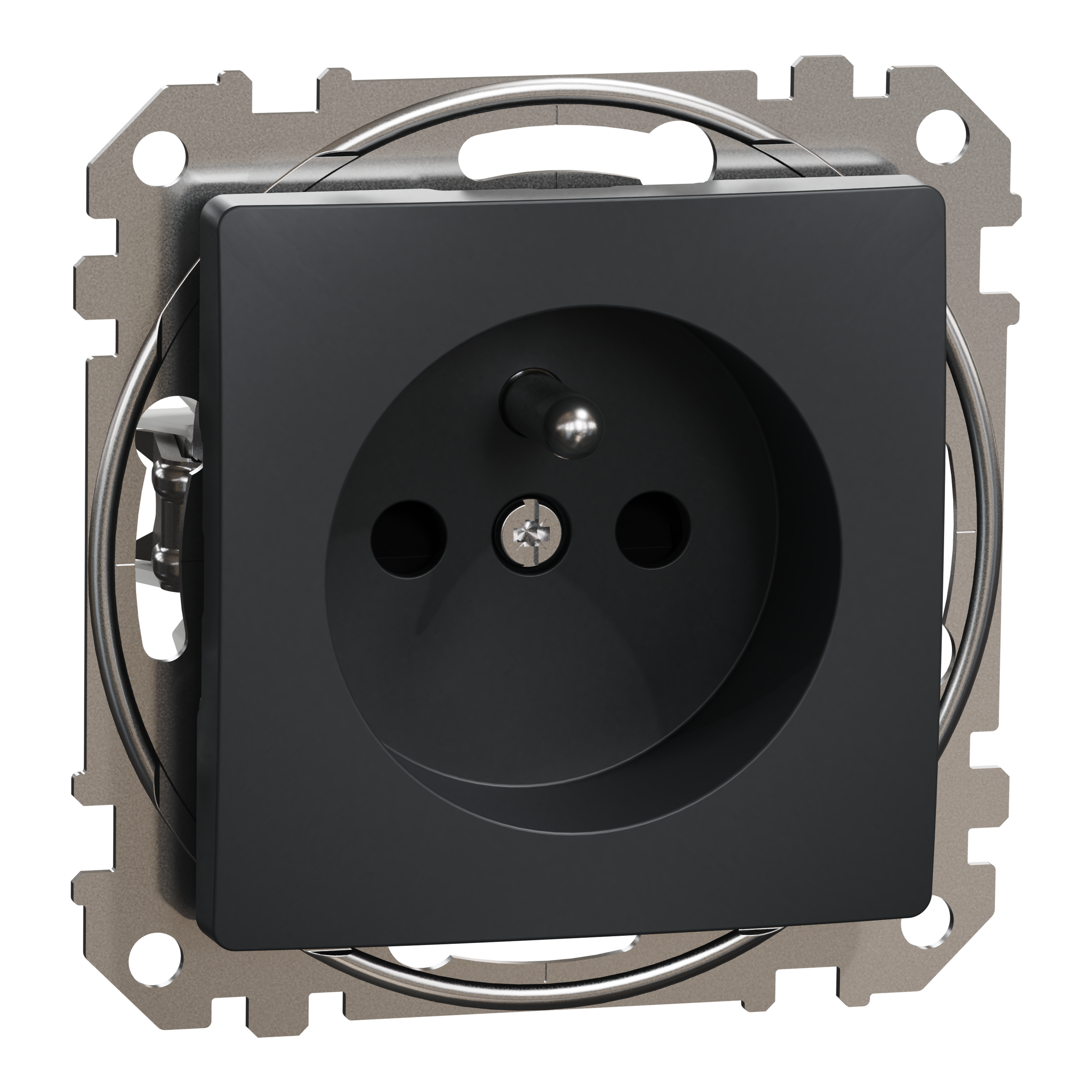

Gniazdo 2P+PE z przesłonami (zaciski bezgwintowe), Sedna Design & Elements, czarny antracyt
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SDD114012 |
| GTIN(EAN) | 3606481479747 |
| Price unit | piece |
| Catalog price | 34,23 zł (27,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo zasilające 2P+PE z przesłonami torów prądowych, zaciski bezgwintowe, czarny antracyt, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Gniazdo zasilające ma malowane wykończenie powierzchni w kolorze czarnego antracytu i posiada następujące wym iary: szerokość 73 mm, wysokość 73 mm, głębokość 38 mm, głębokość wystawania 29 mm. Długość izolacji zdejmowanej z kabla to 13 mm. Gniazdo charakteryzuje się stopniem ochrony IP20 i zakresem mocy wynoszącym 3680 W. Do produkcji gniazda wykorzystano tworzywo termoplastyc zne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zaciski bezśrubowe. Uwaga: produkty Sedna Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 3 |
| Gross weight: | 67 g |
| ETIM class: | Socket outlet |
| Surface protection: | Other |
| Frequency: | 50 - 50 Hz |
| Type of fastening: | Mounting with claw and screw |
| Material: | Plastic |
| Halogen free: | yes |
| With enhanced contact protection: | no |
| Transparent: | no |
| Device height: | 73 mm |
| Colour: | Anthracite |
| Device width: | 73 mm |
| Number of socket outlets switchable: | 0 |
| Model: | Earthing pin |
| Device depth: | 38 mm |
| Insulated mounting: | no |
| Suitable for degree of protection (IP): | IP20 |
| Impact strength: | IK02 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Anti-bacterial treatment: | no |
| Compatible with Amazon Alexa: | no |
| With hinged lid: | no |
| Rotated central insert: | no |
| Nominal current: | 16 A |
| Over voltage protection: | no |
| Nominal voltage: | 250 V |
| Fault current protection: | no |
| Special power supply: | No special power supply |
| Mounting method: | Flush-mounted |
| Connection type: | Other |
| With on/off switch: | no |
| Eject-mechanism: | no |
| Number of modules (module system): | 0 |
| Number of units: | 1 |
| Number of phases: | 1 |
| Number of active contacts (flat): | 0 |
| With signal lamp: | no |
| Number of active contacts (round): | 3 |
| Lockable: | no |
| With miniature fuse: | no |
| IFTTT support available: | no |
| With loop through function: | no |
| Label space/information surface: | no |
| Surface finishing: | Matt |
| With function lighting: | no |
| With orientation lighting: | no |
| Min. depth of built-in installation box: | 40.0 mm |
| Metallic colour: | no |
| Imprint/indication: | None |
| Material quality: | Thermoplastic |
| For heavy conditions according to VDE: | no |
| With built-in USB power supply: | no |
| Protective contact: | yes |
| Protective earth pin round: | no |
| RAL-number (similar): | 7021 |
