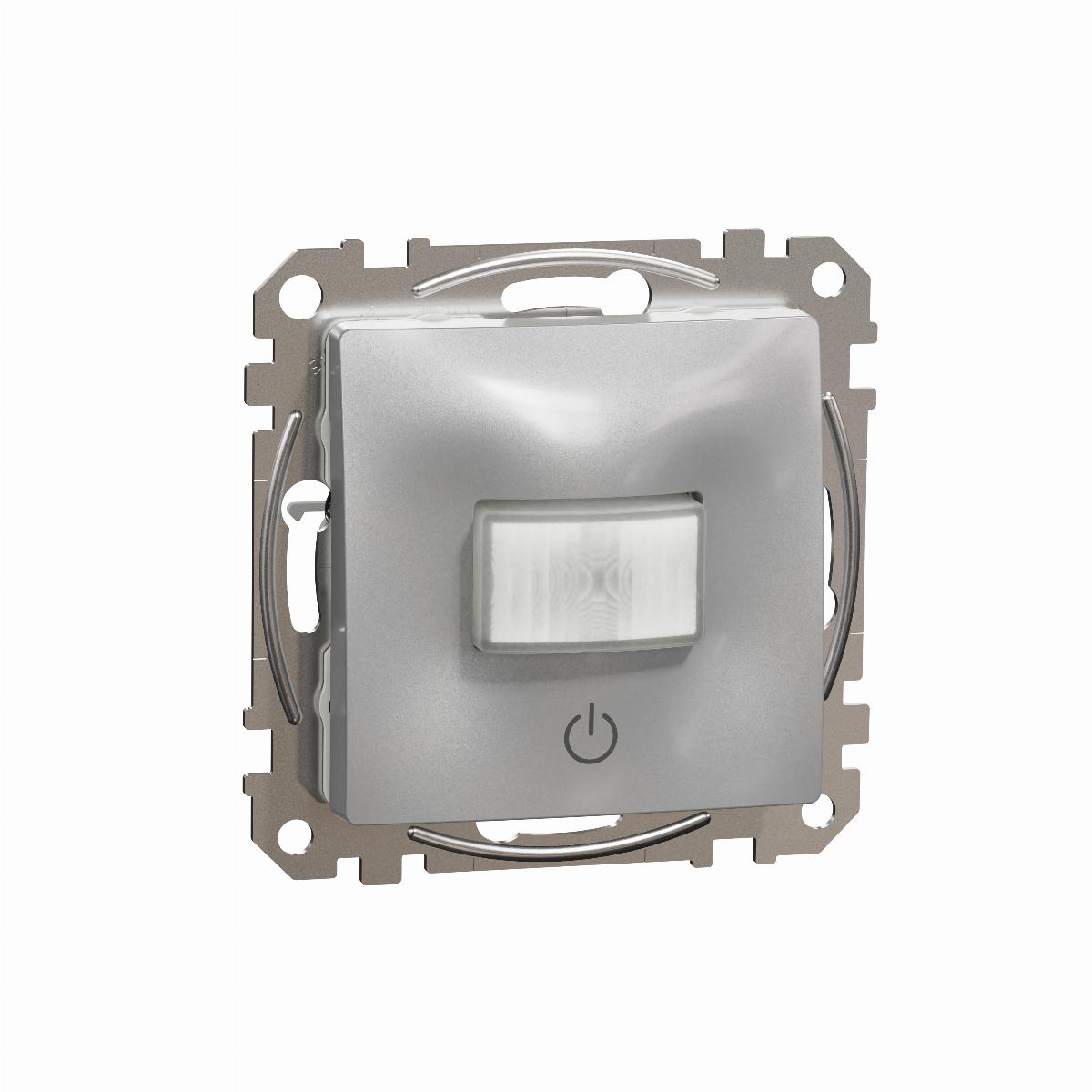

Czujnik ruchu z łącznikiem, Sedna Design & Elements, srebrne aluminium
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SDD113504 |
| GTIN(EAN) | 3606481467089 |
| Price unit | piece |
| Catalog price | 543,06 zł (441,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czujnik ruchu 160° (10A), srebrne aluminium, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Czujnik ruchu ma malowane wykończenie powierzchni w kolorze srebrnego aluminium i posiada następujące wymiary: szerokość 73 mm, wysokość 73 mm, głębokość 48 mm, głębokość wystawania 17 mm. Długość izolacji zdejmowanej z kabla to 8 mm. Czujnik charakteryzuje się stopniem ochrony IP20. Do produkcji czujnika wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zacisk śrubowy. Uwaga: produkty Sedna Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 40 |
| Gross weight: | 166 g |
| ETIM class: | Movement sensor/presence detector complete |
| Networkable: | no |
| Response value sensitivity adjustable: | no |
| Constant light control: | yes |
| Max. reach frontally: | 8 m |
| Max. reach sideways: | 8 m |
| With DALI interface: | no |
| Detection angle horizontal: | 160 - 160 ° |
| Height: | 73 mm |
| Staircase light controller: | no |
| Suitable for ceiling mounting: | no |
| Colour: | Aluminium |
| Width: | 73 mm |
| Built-in width: | 73 mm |
| With remote control: | no |
| Bridging switch: | no |
| Min. switch-on time: | 5 s |
| Nominal voltage: | 230 V |
| Connection type: | Screwed terminal |
| Mounting method: | Flush-mounted |
| Temperature: | 5 - 35 °C |
| Material quality: | Thermoplastic |
| Depth: | 48 mm |
| Suitable for C-load: | no |
| Substation input: | yes |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Animal zone: | no |
| Optimum mounting height: | 1.1 m |
| Anti-bacterial treatment: | no |
| Max. duty cycle: | 30 min |
| Surface protection: | Other |
| Remote operation: | yes |
| Max. switching power: | 2200 W |
| Frequency: | 50 - 50 Hz |
| Built-in depth: | 27 mm |
| Dim function with dimmer basic element: | no |
| Model: | Movement sensor |
| RAL-number (similar): | 7047 |
| IFTTT support available: | no |
| Forced switch off: | yes |
| With alarm function: | no |
| Response value luminosity adjustable: | no |
| Min. depth of built-in installation box: | 40 mm |
| Scan angle: | 160 ° |
| Degree of protection (IP): | IP20 |
| Transparent: | no |
| With signal unit: | no |
| Sensor type: | Passive infrared |
| Response value luminosity: | 5 - 1000 lx |
| HVAC-control: | no |
| Surface finishing: | Matt |
| Voltage type: | AC |
| Suitable for wireless transmission: | yes |
| Material: | Plastic |
| Suitable for wall mounting: | yes |
| Halogen free: | yes |
| Creep-under protection: | no |
| Teach-function for response value luminosity: | no |
| Pivoting range sensor, horizontal: | 160 - 160 ° |
| Number of switching zones: | 10 |
| Pivoting range sensor, vertical: | 45 - 45 ° |
| Switching-on delay: | 0 s |
| Switch-off delay: | 1800 s |
| Forced switch on: | yes |
| Max. switching power LED: | 200 W |
