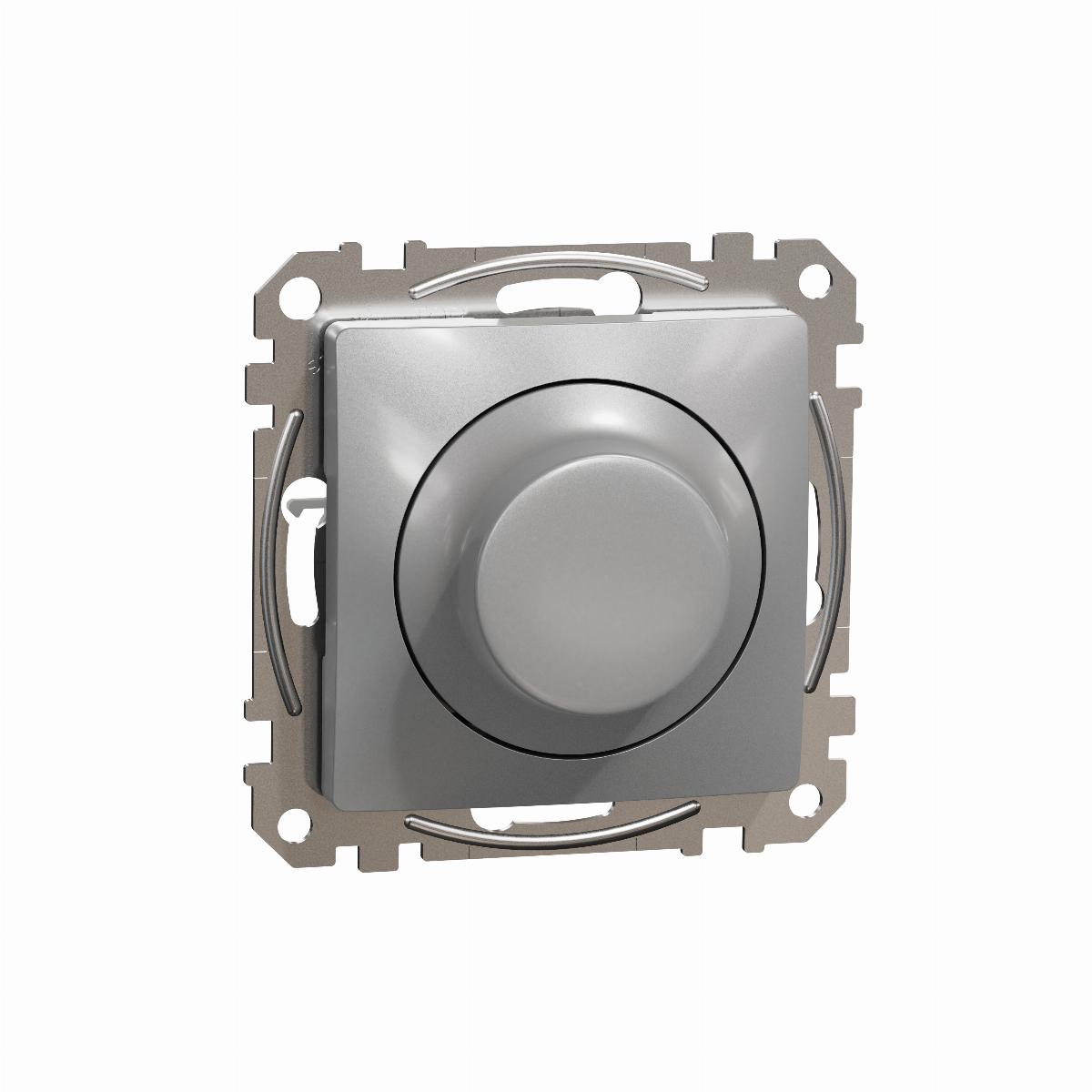

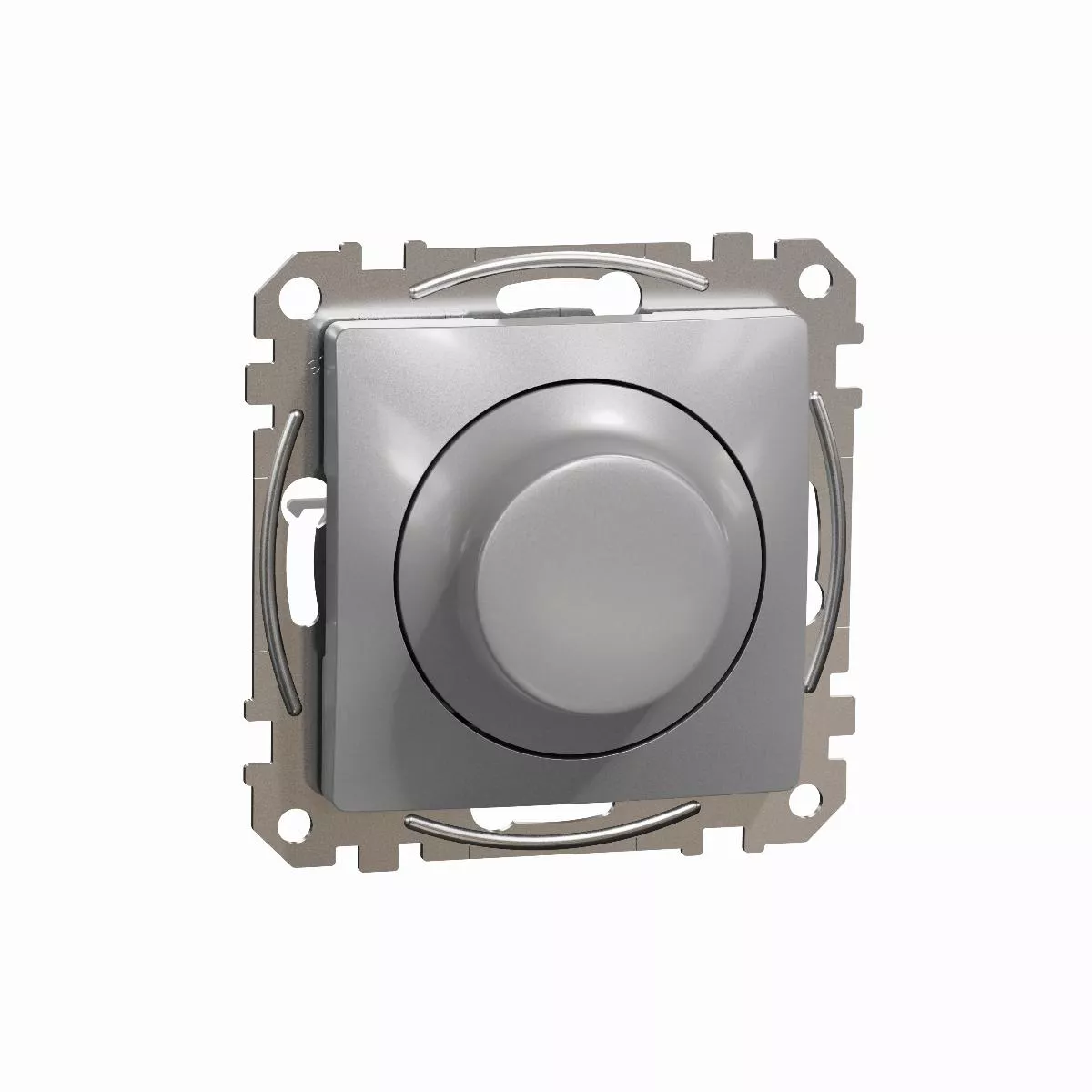

Ściemniacz LED obrotowy rc/rl,sSedna Design & Elements,srebrne aluminium
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | SDD113502 |
GTIN(EAN) | 3606481467065 |
Price unit | piece |
Catalog price | 548,17 zł (445,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ściemniacz uniwersalny do LED, srebrne aluminium, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Ściemniacz uniwersalny do LED ma malowane wykończenie powierzchni w kolorze srebrnego aluminium i posiada następujące wymiary: szerokość 73 mm, wysokość 73 mm, głębokość 55 mm, głębokość wystawania 24 mm. Ściemniacz charakteryzuje się stopniem ochrony IP20. Do produkcji ściemniacza wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zacisk śru bowy. Uwaga: produkty Sedna Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 41 |
Gross weight: | 157 g |
ETIM class: | Dimmer |
IFTTT support available: | no |
Dimming phase cut-on: | yes |
Dimming phase cut-off: | yes |
Serial dimmer: | no |
Surface protection: | Other |
Frequency: | 50 - 50 Hz |
Type of load: | Universal and LED Retrofit |
Type of fastening: | Mounting with screw |
Material: | Other |
Halogen free: | yes |
Surface finishing: | Matt |
Transparent: | no |
Core cross section: | 1.5 - 2.5 mm² |
Assembly arrangement: | Basic element with central cover plate |
Applicable with time switch/timer: | no |
Device height: | 73 mm |
Method of operation: | Turn/push button |
Applicable with button: | yes |
Colour: | Aluminium |
Min. depth of built-in installation box: | 27 mm |
Device width: | 73 mm |
Device depth: | 55 mm |
Suitable for degree of protection (IP): | IP20 |
Impact strength: | IK02 |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
Applicable with infrared button: | no |
Applicable with transmission button: | no |
Applicable with presence indicator: | no |
Light value memory: | yes |
Applicable with movement sensor: | no |
App control via Bluetooth: | no |
Connection type: | Screwed terminal |
Substation input: | yes |
Material quality: | Thermoplastic |
Mounting method: | Flush-mounted |
Nominal voltage: | 230 - 230 V |
Max. switching power LED: | 100 W |
Nominal power capacitive load: | 5 - 150 VA |
Nominal power inductive load: | 5 - 150 VA |
Nominal power resistive load: | 5 - 200 W |
RAL-number (similar): | 7047 |
