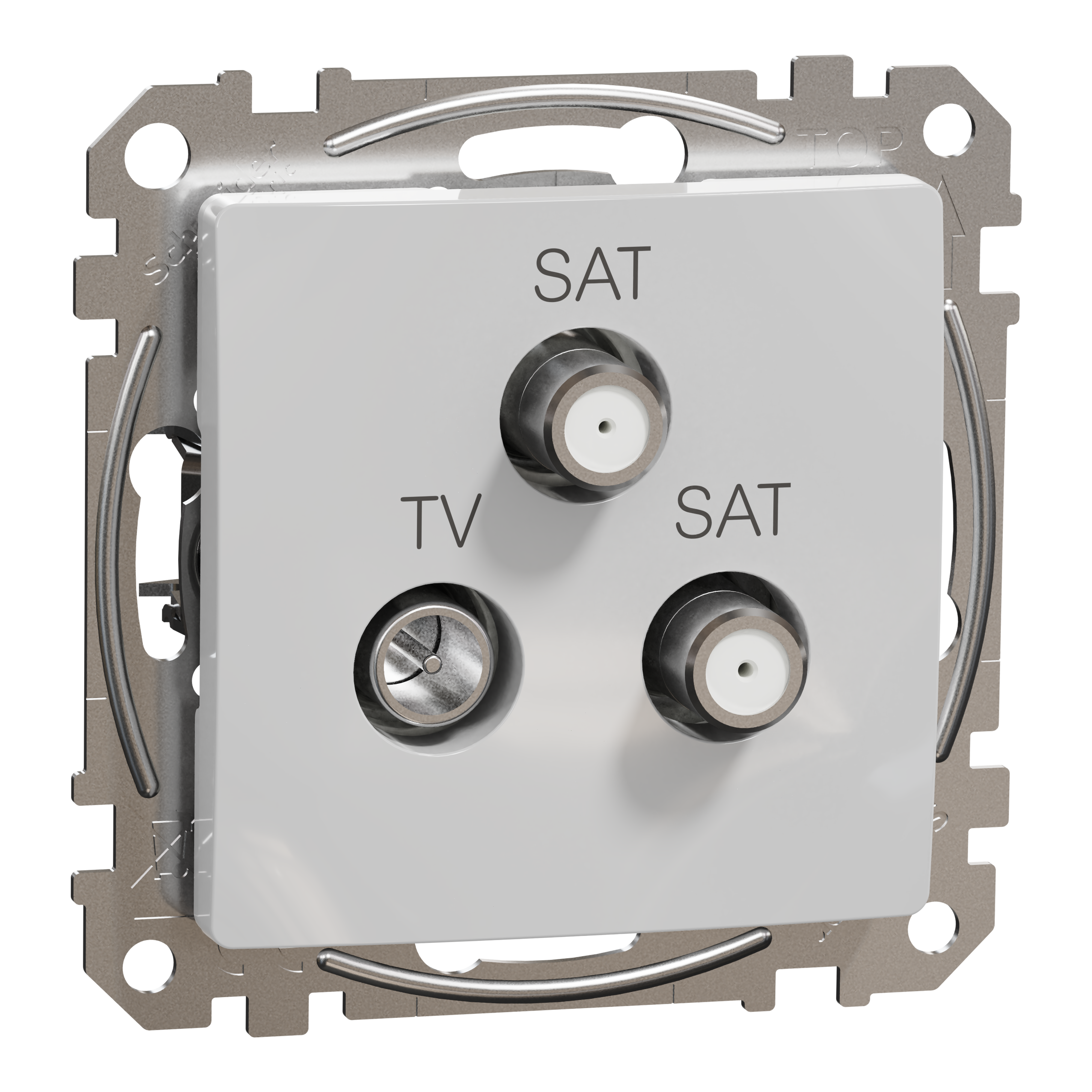

Gniazdo TV/SAT/SAT końcowe (4dB), Sedna Design & Elements, srebrne aluminium
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SDD113481S |
| GTIN(EAN) | 3606481467003 |
| Price unit | piece |
| Catalog price | 156,00 zł (126,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo TV/SAT/SAT końcowe (4dB), srebrne aluminium, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Gniazdo TV/SAT/SAT końcowe (4dB) ma malowane wykończenie powierzchni w kolorze srebrnego aluminium i posiada następujące wymiary: szerokość 73 mm, wys okość 73 mm, głębokość 41 mm, głębokość wystawania 17.4 mm. Gniazdo charakteryzuje się stopniem ochrony IP20. Do produkcji gniazda wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo. Uwaga: produkty Sed na Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 12 |
| Gross weight: | 104 g |
| ETIM class: | Insert/cover for communication technology |
| Surface protection: | Other |
| Support ring: | yes |
| Type of fastening: | Mounting with claw and screw |
| With dust cover: | no |
| Material: | Plastic |
| Shielded buses: | no |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Shielded housing: | no |
| Transparent: | no |
| Assembly arrangement: | Basic element with central cover plate |
| Device height: | 73 mm |
| Suitable for number of connectors: | 3 |
| Colour: | Aluminium |
| Min. depth of built-in installation box: | 22.5 mm |
| Device width: | 73 mm |
| Utilization: | Other |
| Device depth: | 41 mm |
| Suitable for degree of protection (IP): | IP20 |
| With hinged lid: | no |
| Luster terminal: | no |
| With strain relief: | no |
| With imprint: | yes |
| Material quality: | Thermoplastic |
| Mounting method: | Flush-mounted |
| Outlet direction: | Straight |
| Number of modules (module system): | 0 |
| Imprintable label: | Without indication field |
| With buses/couplings: | yes |
| RAL-number (similar): | 7047 |
| Impact strength: | IK02 |
| Anti-bacterial treatment: | no |
| With lighting: | no |
