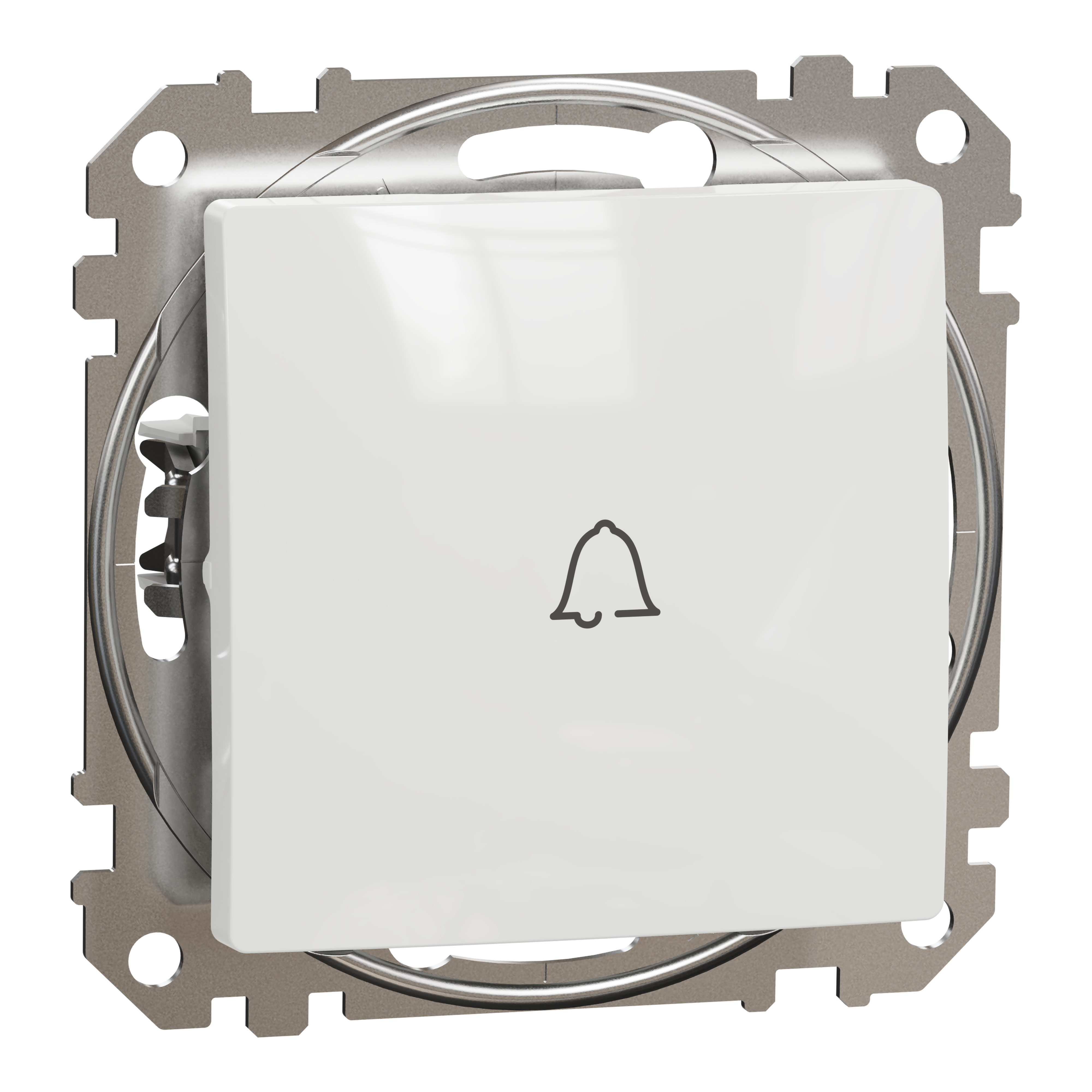

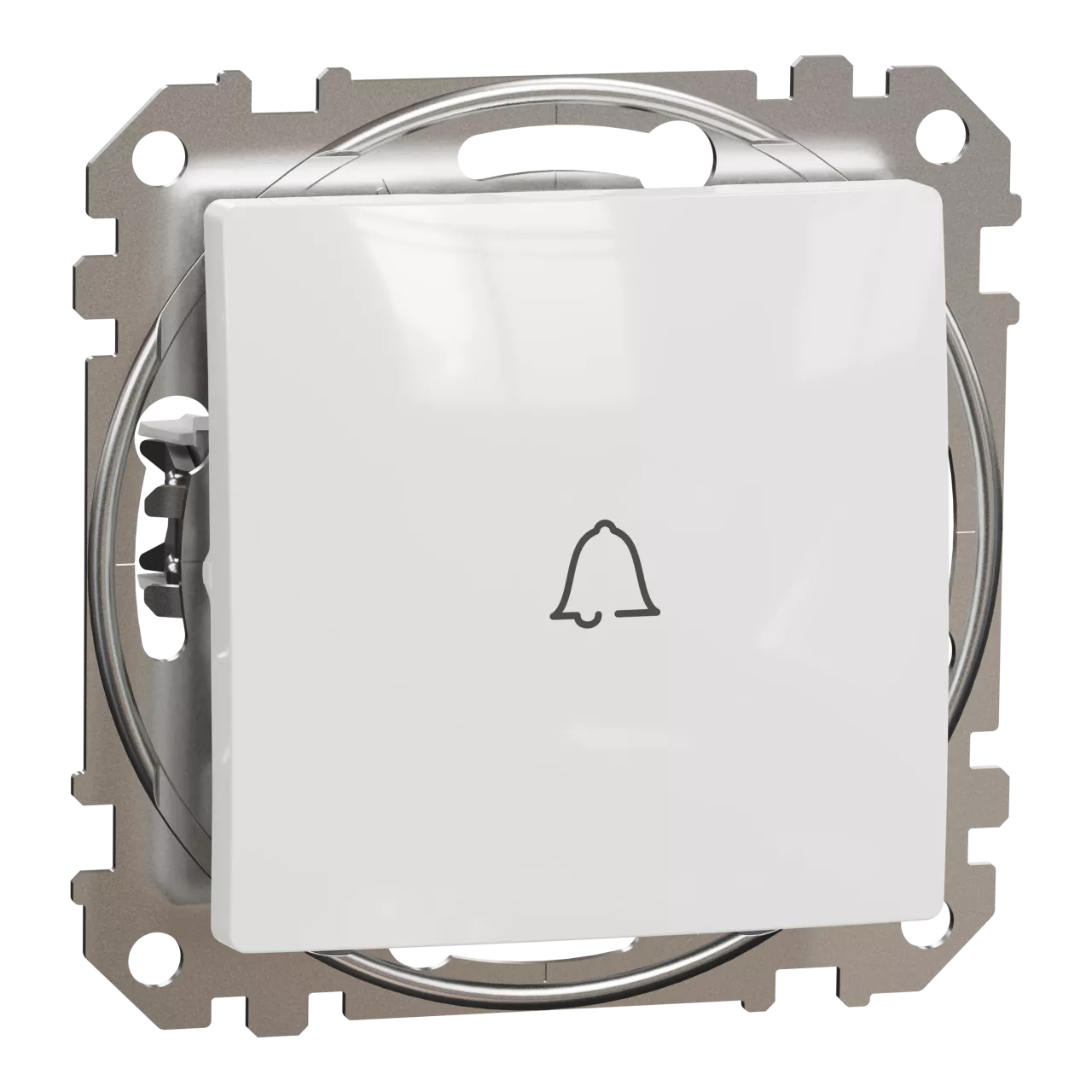

Przycisk "dzwonek", Sedna Design & Elements, biały
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | SDD111131 |
| GTIN(EAN) | 3606481478245 |
| Price unit | piece |
| Catalog price | 28,70 zł (23,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Przycisk 1-biegunowy "dzwonek", biały, to osprzęt serii Sedna Design & Elements marki Schneider Electric. Przycisk 1-biegunowy ma lśniące wykończenie powierzchni w kolorze białym i posiada następujące wymiary: szerokość 73 mm, wysokość 73 mm, głębokość 37 mm, głębokość wystawania 24 mm. Długość izolacji zdejmowanej z kabla to 13 mm. Przycisk charakteryzuje się stopniem ochrony IP20 i zakresem mocy wynoszącym 2300 W. Do produkcji przycisku wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zaciski bezśrubowe. Uwaga: produkty Sedna Design & Elements nie są kompatybilne z serią Sedna!
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 2 |
| Gross weight: | 58 g |
| ETIM class: | Push button |
| IFTTT support available: | no |
| Surface protection: | Untreated |
| With light source: | no |
| Type of fastening: | Mounting with claw and screw |
| Material: | Plastic |
| Label space/information surface: | no |
| Halogen free: | yes |
| Surface finishing: | Glossy |
| Transparent: | no |
| Number of poles: | 1 |
| Device height: | 73 mm |
| Assembly arrangement: | Basic element with central cover plate |
| Method of operation: | Rocker |
| Min. depth of built-in installation box: | 40 mm |
| Colour: | White |
| Device width: | 73 mm |
| Imprint: | Symbol "bell" |
| Model: | Single push button |
| Device depth: | 37 mm |
| Suitable for degree of protection (IP): | IP20 |
| Impact strength: | IK02 |
| Compatible with Apple HomeKit: | no |
| Feedback-signal contact: | no |
| Number of contacts as change-over contact: | 0 |
| Compatible with Google Assistant: | no |
| Number of contacts as normally open contact: | 1 |
| Anti-bacterial treatment: | no |
| Compatible with Amazon Alexa: | no |
| Number of contacts as normally closed contact: | 0 |
| Number of revolving contacts: | 0 |
| Contactless type: | no |
| With lighting: | no |
| Nominal voltage: | 250 V |
| Material quality: | Thermoplastic |
| Connection type: | Other |
| Mounting method: | Flush-mounted |
| Rated current: | 10 A |
| Number of rockers: | 1 |
| With signal lamp: | no |
| RAL-number (similar): | 9003 |
| Number of modules (module system): | 0 |
