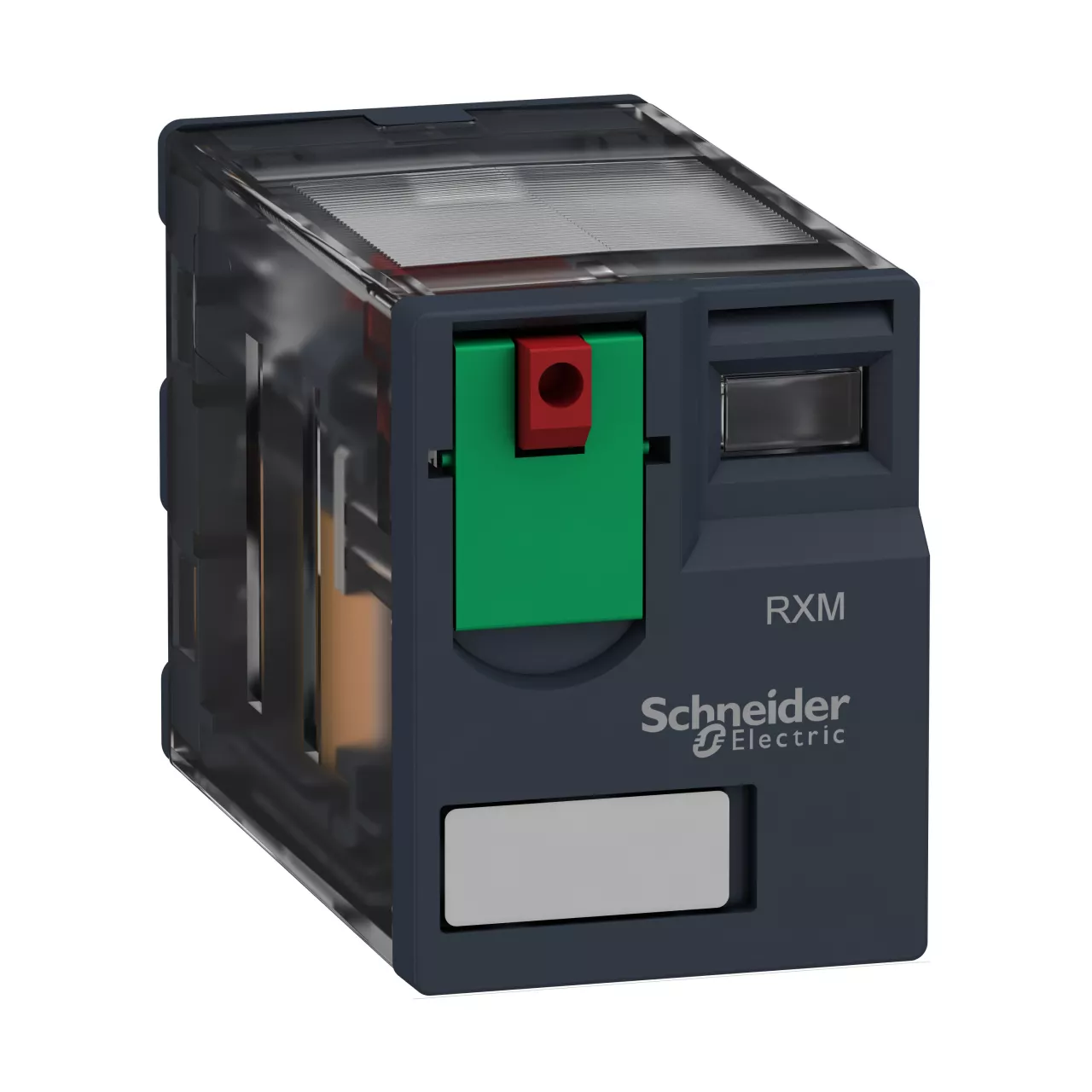

Harmony Relay Przekaźnik miniaturowy 120V AC, 10A, 3 styki C/O
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RXM3AB1F7 |
| GTIN(EAN) | 3389119403580 |
| Price unit | piece |
| Catalog price | 56,96 zł (46,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik wtykowy stworzony w oparciu o doświadczenie w budowie przekaźników zbierane od 1924. Wysoka niezawodność odpowiednia dla zastosowań przemysłowych takich jak: pakowanie, ogrzewanie, wentylacja oraz klimatyzacja. Kompaktowy rozmiar oraz szeroki wybór styków dla dopasowania do potrzeb prądowych. Wyposażony w mechaniczny wskaźnik statusu oraz blokowany przycisk testowy.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 36,29 g |
| ETIM class: | Switching relay |
| With LED indication: | no |
| Degree of protection (IP): | IP40 |
| Material of contact surface: | Other |
| Depth: | 55 mm |
| Width: | 21 mm |
| Type of electric connection: | Plug-in connection |
| Number of contacts as change-over contact: | 3 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Drive, polarization: | Polarity free |
| Nominal current: | 10 A |
| With forced-guided contacts: | yes |
| Drive, switching attitude: | Mono stable |
| Complete with socket: | no |
| Type of switch contact: | Other |
| Voltage type for actuating: | AC |
| Material of contact insert: | Other |
| Height: | 27 mm |
| Rated control supply voltage AC 60 Hz: | 120 - 120 V |
| Rated control supply voltage AC 50 Hz: | 120 - 120 V |
| Material contact: | Other |
| With detachable clamps: | yes |
