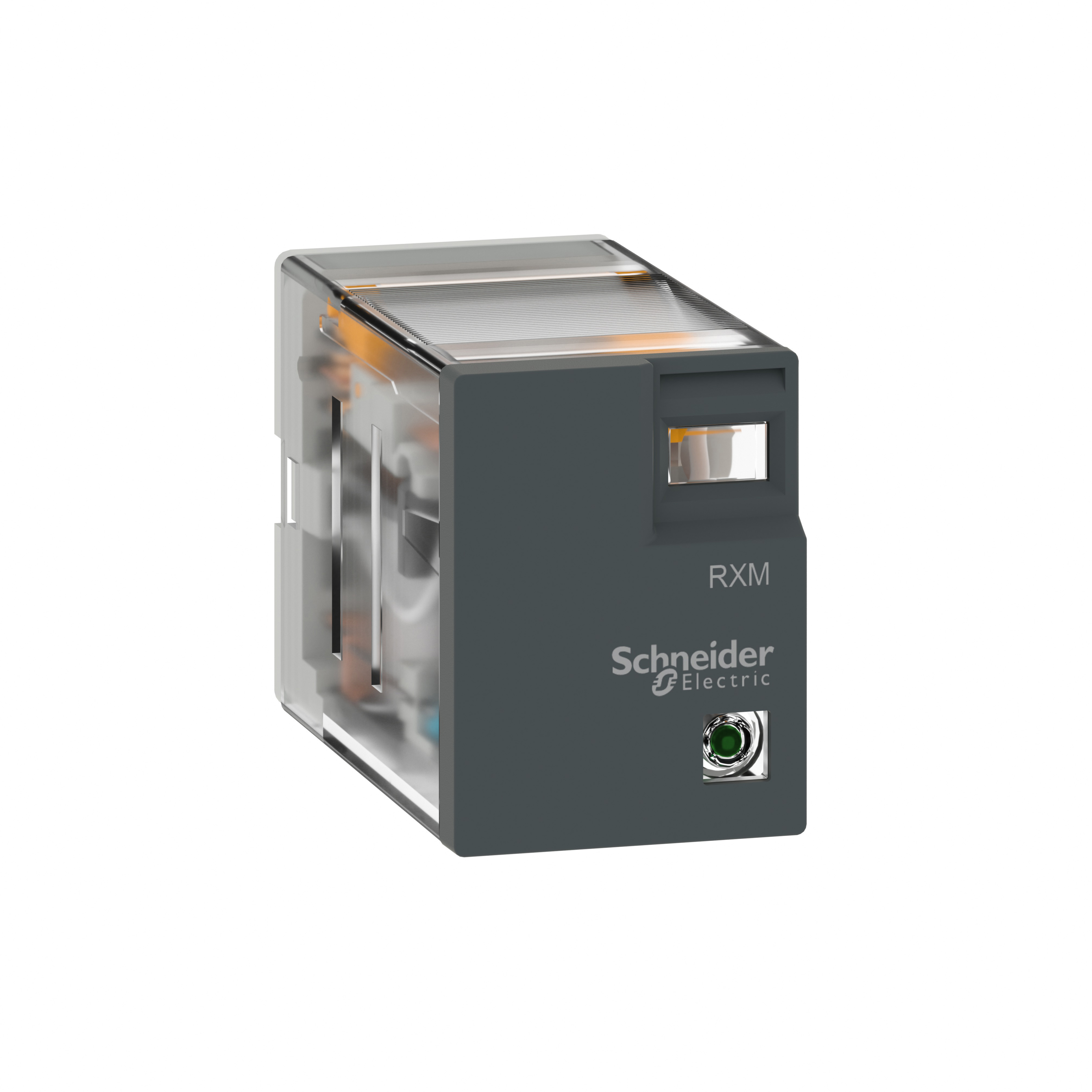

Harmony Relay Przekaźnik miniaturowy 2L LED 24V DC, 5A, 2 styki C/O
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RXM2LB2BD |
| GTIN(EAN) | 3389119215275 |
| Price unit | piece |
| Catalog price | 43,79 zł (35,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźniki miniaturowe RXM są częścią przekaźników elektromechanicznych Harmony Jest to przekaźnik wtykowy do montażu na gniazdo RXZE. Produkt ma stopień ochrony IP40 i posiada przezroczystą pokrywę umożliwiającą operatorowi wizualną kontrolę stanu styków. Zielona dioda LED na froncie zapali się, gdy przekaźnik jest włączony. Wskaźnik stanu z diodą LED: wyraźna sygnalizacja zarówno w dzień jak i w nocy. Sprzedawany jest w partiach po 10 sztuk, a referencja obejmuje tylko przekaźnik.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 33 g |
| ETIM class: | Switching relay |
| With LED indication: | yes |
| Degree of protection (IP): | IP40 |
| Material of contact surface: | Other |
| Depth: | 46 mm |
| Width: | 21 mm |
| Type of electric connection: | Other |
| Number of contacts as change-over contact: | 2 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Drive, polarization: | Polarity free |
| Nominal current: | 5 A |
| With forced-guided contacts: | yes |
| Drive, switching attitude: | Mono stable |
| Complete with socket: | no |
| Type of switch contact: | Other |
| Voltage type for actuating: | DC |
| Material of contact insert: | Other |
| Height: | 27 mm |
| Rated control supply voltage DC: | 24 - 24 V |
| Material contact: | Other |
| With detachable clamps: | yes |
