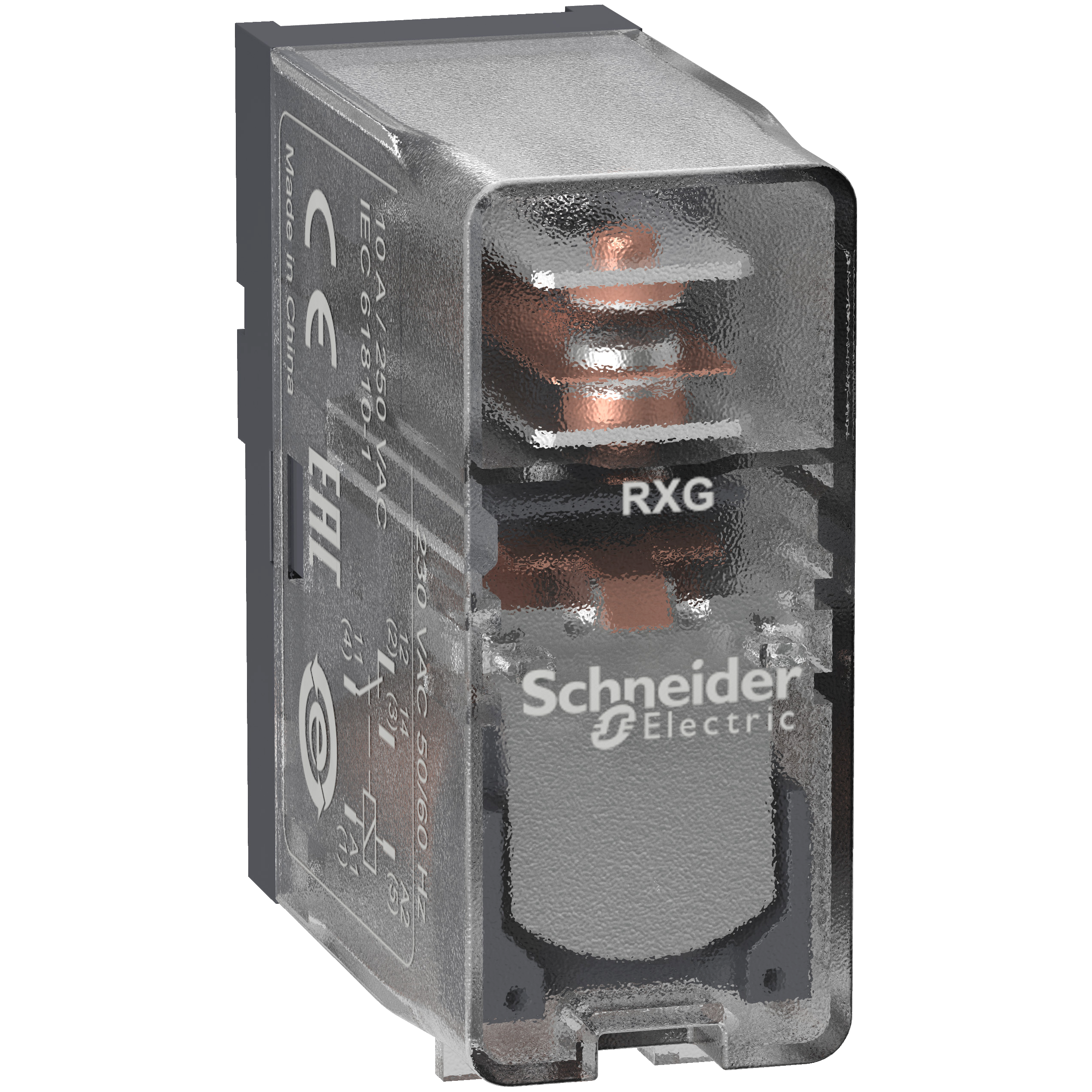

Harmony Relay Przekaźnik interfejsowy z przezroczystą obudową 1C/O 10A, 230V AC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | RXG15P7 |
GTIN(EAN) | 3606480688928 |
Price unit | piece |
Catalog price | 43,25 zł (35,16 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik mocy odzwierciedla kompetencje Schneider Electric w zakresie przekaźników od 1924 poprzez zarówno zredukowanie wielkości obudowy jak i zwiększenie niezawodności dla maszyn przemsyłowych oraz systemów pakujących, tekstylnych, HVAC, paneli sterowania automatyki , sterowania silnikiem, zasilaczy, wyposażenia budowlanego lub medycznego, sterowania oświetleniem. Posiada szeroki wybór kontaktów dla wysokich wartości prądu.
Additional features:
Information | Value |
---|---|
Gross weight: | 221 g |
ETIM class: | Switching relay |
With LED indication: | no |
Degree of protection (IP): | IP40 |
Material of contact surface: | Other |
Depth: | 29 mm |
Width: | 13 mm |
Type of electric connection: | Flat plug-in connection |
Number of contacts as change-over contact: | 1 |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
Drive, polarization: | Polarity free |
Nominal current: | 10 A |
With forced-guided contacts: | no |
Drive, switching attitude: | Mono stable |
Complete with socket: | no |
Type of switch contact: | Single contact |
Voltage type for actuating: | AC |
Material of contact insert: | Other |
Height: | 28 mm |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Material contact: | Other |
With detachable clamps: | no |
