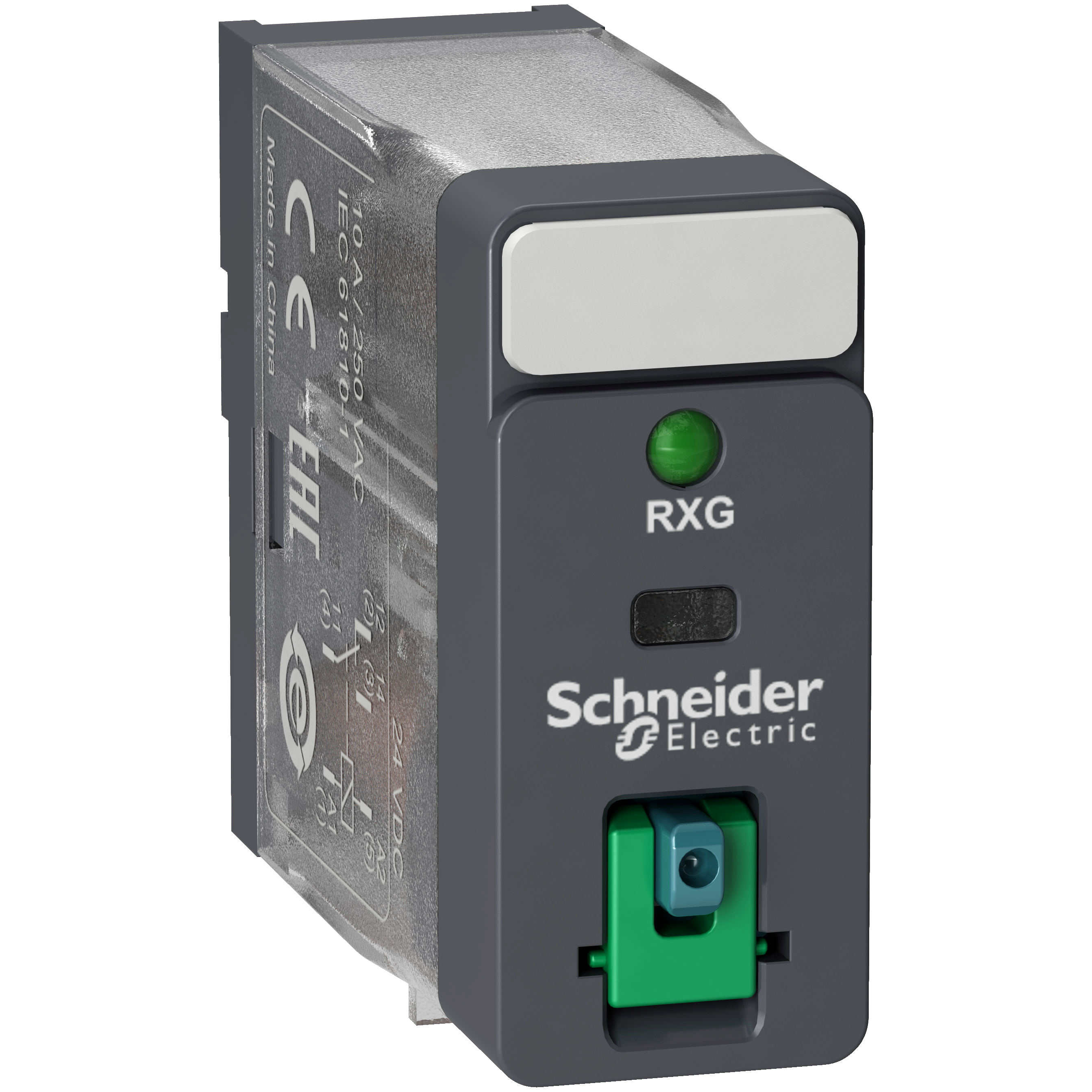

Harmony Relay Przekaźnik interfejsowy z przyciskiem test i LED 48V DC, 10A, 1 styk C/O
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RXG12ED |
| GTIN(EAN) | 3606480688744 |
| Price unit | piece |
| Catalog price | 40,59 zł (33,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik wtykowy stworzony w oparciu o doświadczenie w budowie przekaźników zbierane od 1924. Wysoka niezawodność odpowiednia dla zast osowań przemysłowych takich jak: pakowanie, ogrzewanie, wentylacja oraz klimatyzacja. Szeroki wybór styków dla dopasowania do potrzeb prądowych. Wyposażony w diodę LED oraz blokowany przycisk testowy.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 228 g |
| ETIM class: | Switching relay |
| With LED indication: | yes |
| Degree of protection (IP): | IP40 |
| Material of contact surface: | Other |
| Depth: | 28.8 mm |
| Width: | 13 mm |
| Type of electric connection: | Flat plug-in connection |
| Number of contacts as change-over contact: | 1 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Drive, polarization: | Polarized |
| Nominal current: | 10 A |
| With forced-guided contacts: | no |
| Drive, switching attitude: | Mono stable |
| Complete with socket: | no |
| Type of switch contact: | Single contact |
| Voltage type for actuating: | DC |
| Material of contact insert: | Other |
| Height: | 34.5 mm |
| Rated control supply voltage DC: | 48 - 48 V |
| Material contact: | Other |
| With detachable clamps: | no |
