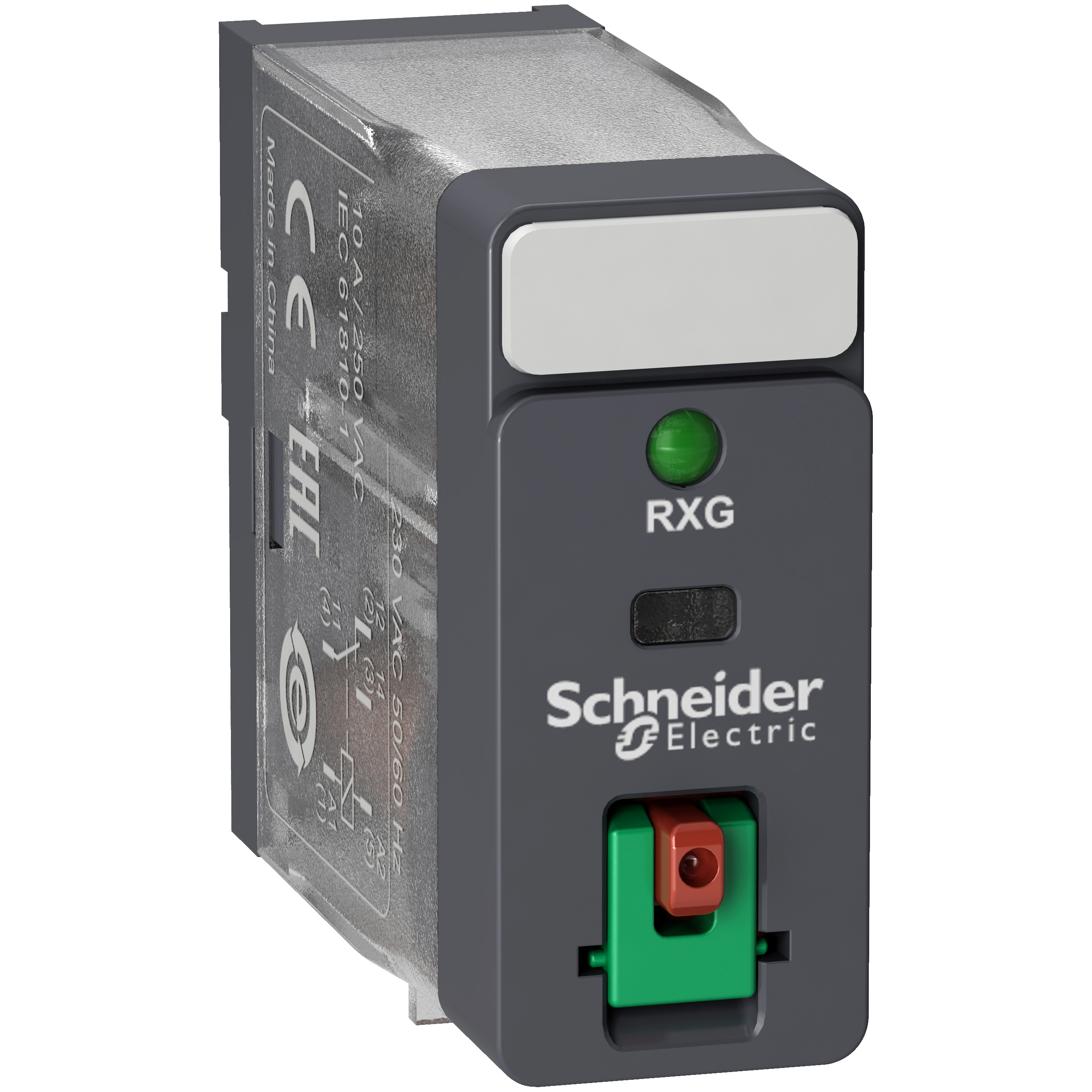

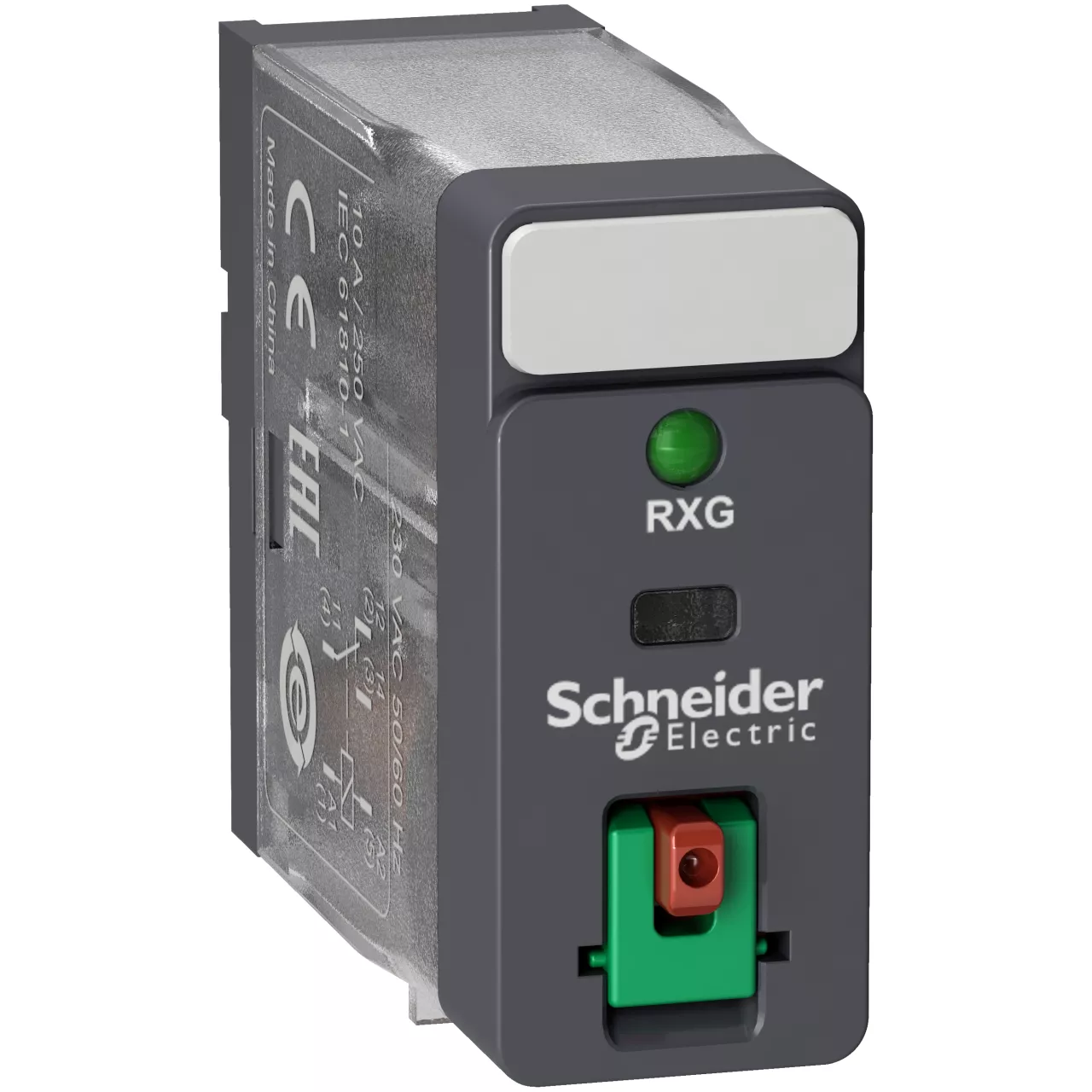

Harmony Relay Przekaźnik interfejsowy z przyciskiem test i LED 1C/O 10A, 24V AC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RXG12B7 |
| GTIN(EAN) | 3606480688669 |
| Price unit | piece |
| Catalog price | 56,81 zł (46,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik mocy odzwierciedla kompetencje Schneider Electric w zakresie przekaźników od 1924 poprzez zarówno zredukowanie wielkości obudowy jak i zwiększenie niezawodności dla maszyn przemsyłowych oraz systemów pakujących, tekstylnych, HVAC, paneli sterowania automatyki , sterowania silnikiem, zasilaczy, wyposażenia budowlanego lub medycznego, sterowania oświetleniem. Posiada szeroki wybór kontaktów dla wysokich wartości prądu. Oferuje także blokowalny przycisk testowy i wskaźnik LED.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 22 g |
| ETIM class: | Switching relay |
| With LED indication: | yes |
| Degree of protection (IP): | IP40 |
| Material of contact surface: | Other |
| Depth: | 28.8 mm |
| Width: | 13 mm |
| Type of electric connection: | Flat plug-in connection |
| Number of contacts as change-over contact: | 1 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Drive, polarization: | Polarity free |
| Nominal current: | 10 A |
| With forced-guided contacts: | no |
| Drive, switching attitude: | Mono stable |
| Complete with socket: | no |
| Type of switch contact: | Single contact |
| Voltage type for actuating: | AC |
| Material of contact insert: | Other |
| Height: | 34.5 mm |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Material contact: | Other |
| With detachable clamps: | no |
