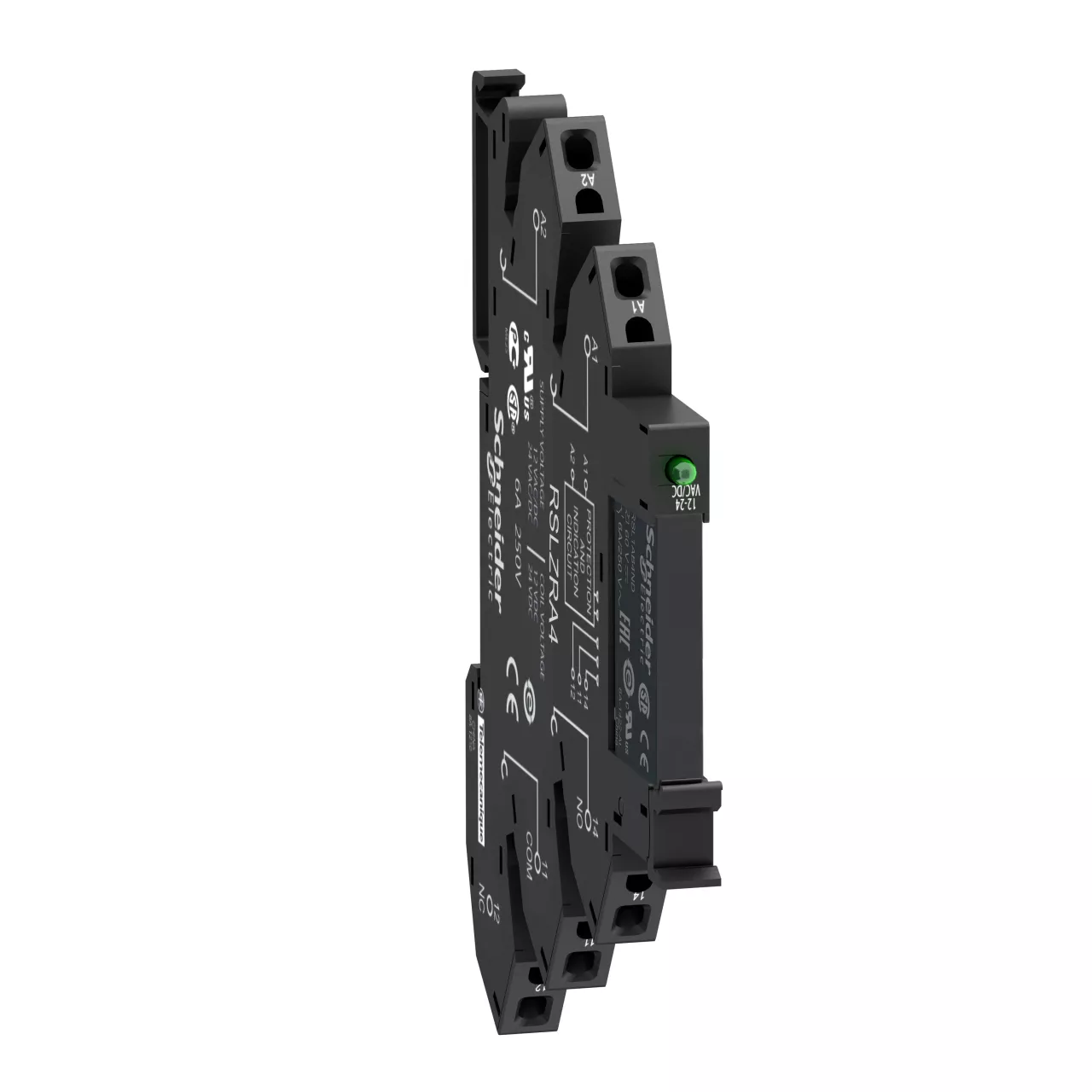

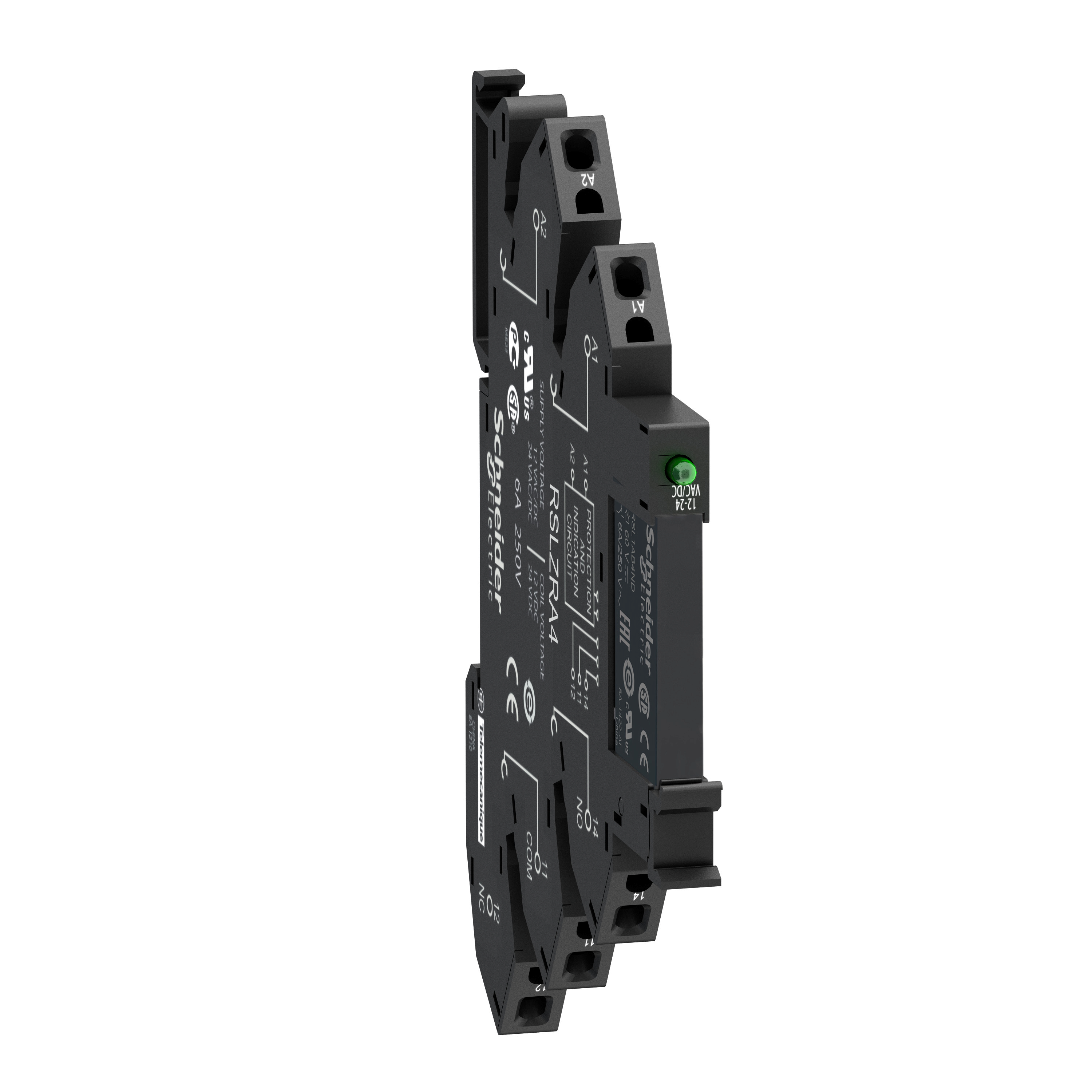

Zelio Relay Przekaźnik interfejsowy z LED 12V DC, 6A, 1 styk C/O
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | RSL1PRJU |
GTIN(EAN) | 3606480077890 |
Price unit | piece |
Catalog price | 108,51 zł (88,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik wtykowy interfejsowy stworzony w oparciu o doświadczenie w budowie przekaźników zbierane od 1924. Wysoka niezawodność odpowie dnia dla zastosowań przemysłowych takich jak: pakowanie, ogrzewanie, wentylacja oraz klimatyzacja. Szeroki wybór styków dla dopasowania do potrzeb prądowych. Wyposażony w diodę LED oraz obwód ochronny.
Additional features:
Information | Value |
---|---|
Gross weight: | 31 g |
ETIM class: | Switching relay |
With LED indication: | yes |
Degree of protection (IP): | IP40 |
Material of contact surface: | Other |
Depth: | 101 mm |
Width: | 6.2 mm |
Type of electric connection: | Spring clamp connection |
Number of contacts as change-over contact: | 1 |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
Drive, polarization: | Polarity free |
Nominal current: | 6 A |
With forced-guided contacts: | yes |
Drive, switching attitude: | Mono stable |
Complete with socket: | yes |
Type of switch contact: | Single contact |
Voltage type for actuating: | AC/DC |
Material of contact insert: | Other |
Height: | 78.6 mm |
Rated control supply voltage AC 60 Hz: | 12 - 12 V |
Rated control supply voltage AC 50 Hz: | 12 - 12 V |
Rated control supply voltage DC: | 12 - 12 V |
Material contact: | Other |
With detachable clamps: | yes |
