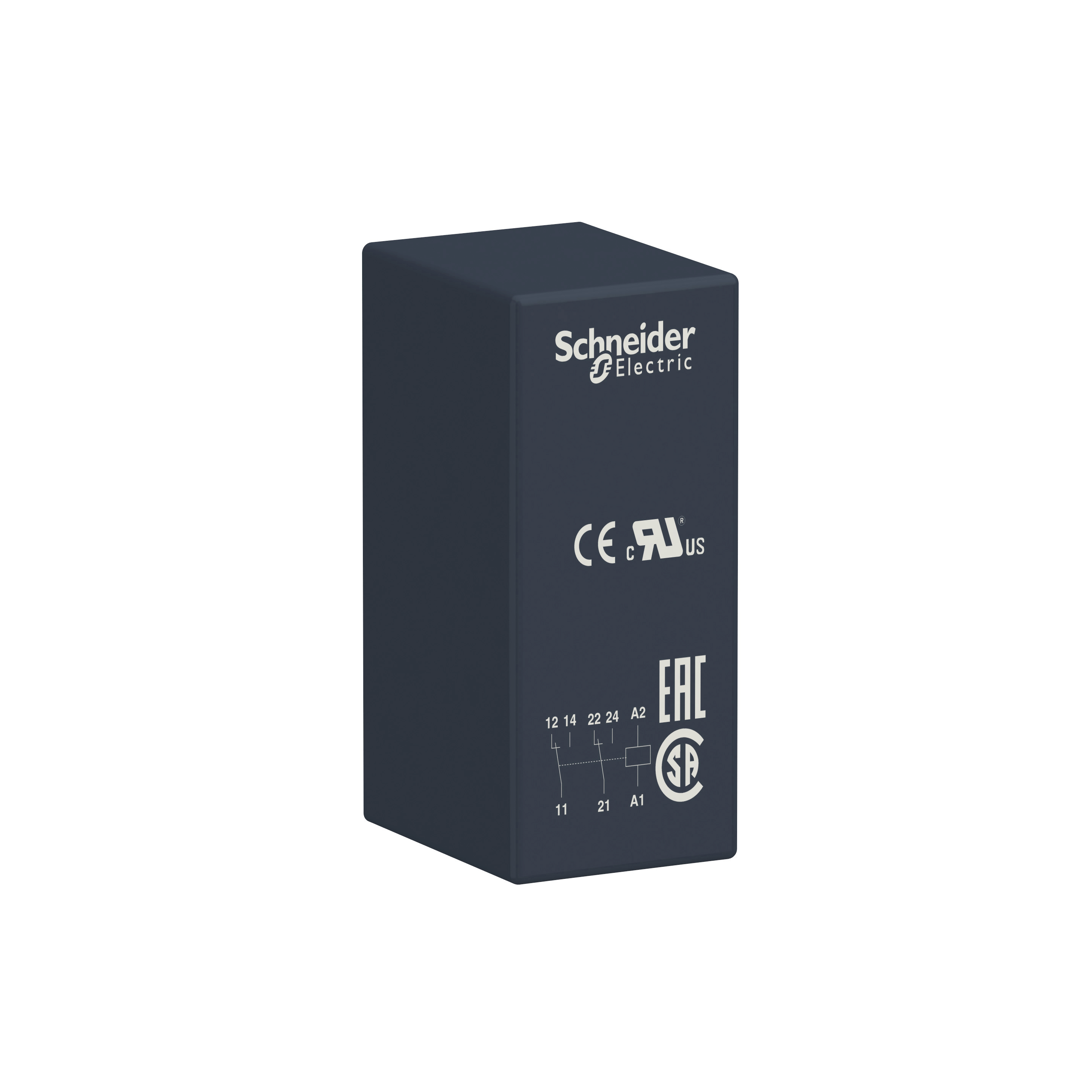

Harmony Relay Przekaźnik interfejsowy 2C/O 8A, 230V AC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RSB2A080P7 |
| GTIN(EAN) | 3389110256611 |
| Price unit | piece |
| Catalog price | 79,02 zł (64,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten przekaźnik wtykowy z interfejsem Harmony RSB ma napięcie cewki sterującej 230 V AC i ma 2 styki przełączne dwuprzerwowe o wartości znamionowej 8 A Pomaga zmniejszyć rozmiar obudów i zwiększa niezawodność maszyny, można zamontować niemal wszędzie. Typ wtykowy umożliwia łatwą instalację i konserwację. Produkt ma stopień ochrony IP40 i posiada przezroczystą pokrywę umożliwiającą operatorowi wizualną kontrolę stanu styków.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 6 |
| Gross weight: | 13 g |
| ETIM class: | Switching relay |
| With LED indication: | no |
| Degree of protection (IP): | IP20 |
| Material of contact surface: | Other |
| Depth: | 15.7 mm |
| Width: | 12.5 mm |
| Type of electric connection: | Other |
| Number of contacts as change-over contact: | 2 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Drive, polarization: | Polarity free |
| Nominal current: | 8 A |
| With forced-guided contacts: | no |
| Drive, switching attitude: | Mono stable |
| Complete with socket: | no |
| Type of switch contact: | Other |
| Voltage type for actuating: | AC |
| Material of contact insert: | Other |
| Height: | 29 mm |
| Rated control supply voltage AC 60 Hz: | 230 - 230 V |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Material contact: | Other |
| With detachable clamps: | no |
