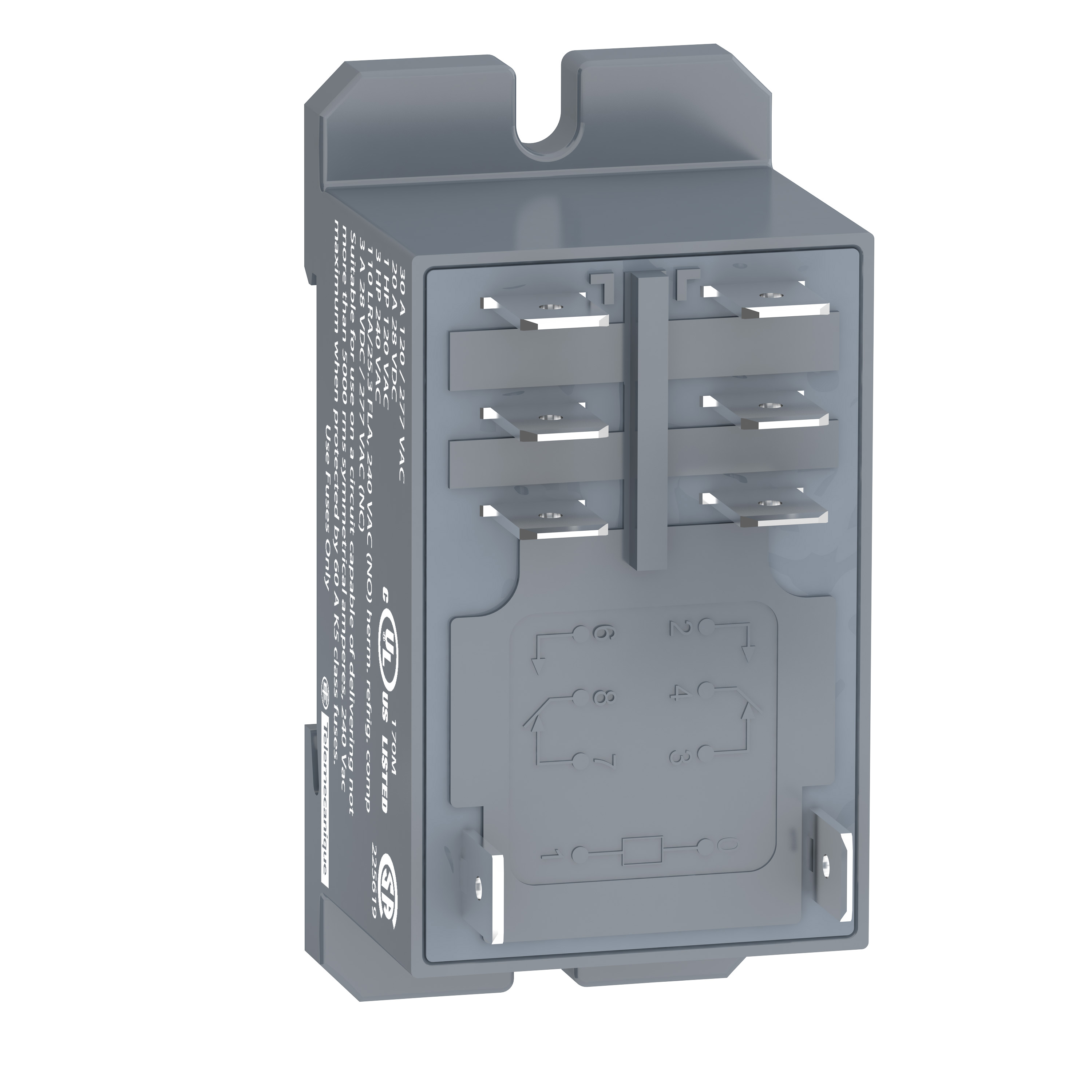

Harmony Relay Przekaźnik mocy, wtykowy 2 styki C/O, 24V DC, 30A
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | RPF2BBD |
GTIN(EAN) | 3389119401593 |
Price unit | piece |
Catalog price | 84,98 zł (69,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 84 g |
ETIM class: | Switching relay |
With LED indication: | no |
Degree of protection (IP): | IP40 |
Material of contact surface: | Other |
Depth: | 39.2 mm |
Width: | 33.7 mm |
Type of electric connection: | Flat plug-in connection |
Number of contacts as change-over contact: | 2 |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
Drive, polarization: | Polarity free |
Nominal current: | 30 A |
With forced-guided contacts: | yes |
Drive, switching attitude: | Mono stable |
Complete with socket: | no |
Type of switch contact: | Double contact |
Voltage type for actuating: | DC |
Material of contact insert: | Other |
Height: | 68.5 mm |
Rated control supply voltage DC: | 24 - 24 V |
Material contact: | Other |
With detachable clamps: | yes |
