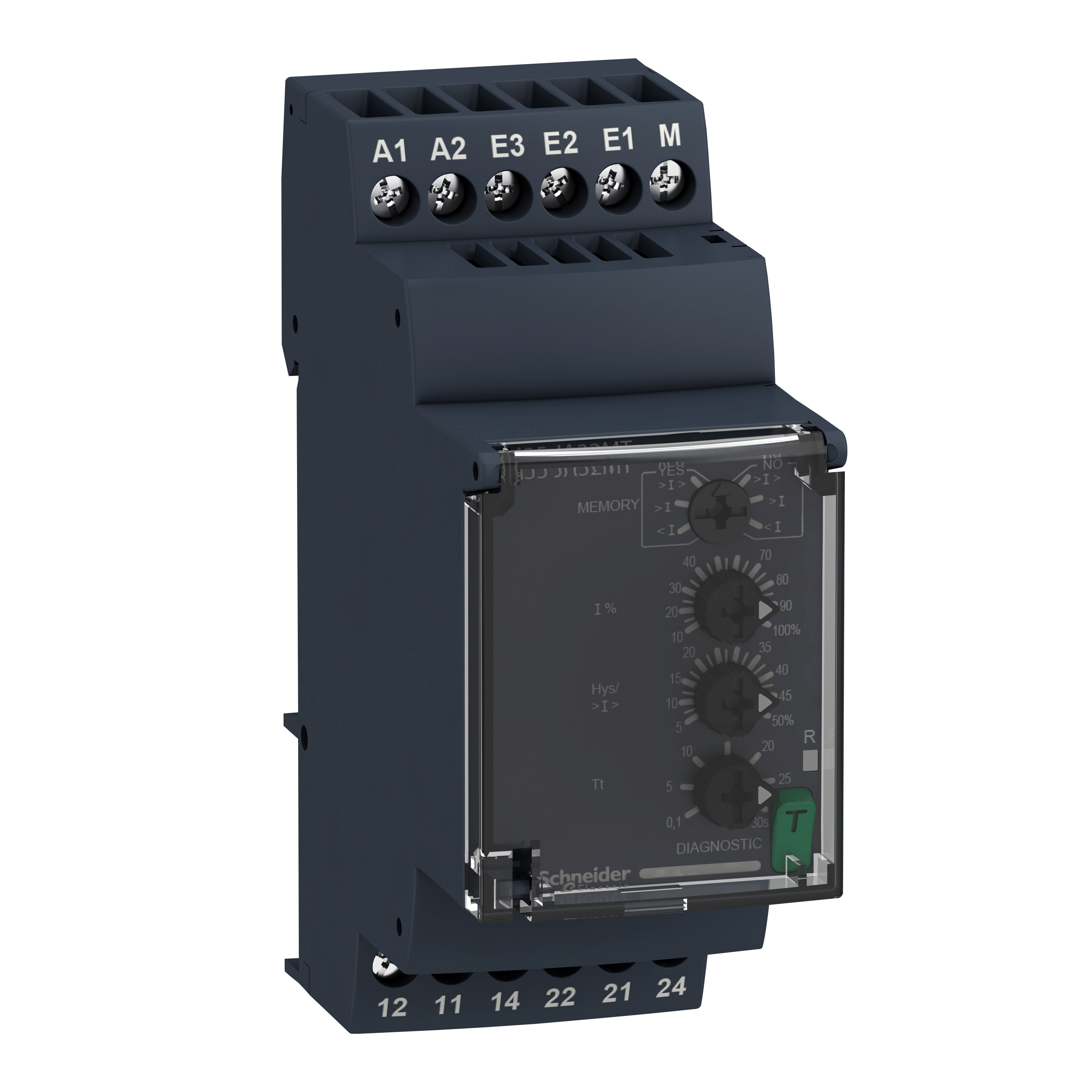

Harmony Control Przekaźnik kontroli prądu przetężeniowy 0.15A…15A, 380/451V AC, 2C/O 5A
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RM35JA32MT |
| GTIN(EAN) | 3606480792311 |
| Price unit | piece |
| Catalog price | 1 074,60 zł (873,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Modułowy trójfazowy przekaźnik jest idealny do kontrolowania wartości elektrycznych i zmian prądu w przemysłowych i budowlanych panelach kontrolnych. Znajduje szerokie zastosowanie w aplikacjach automatyki przemysłowej takich jak podnoszenie, pakowanie, przemysł teksty lny, woda. Jego budowa jest jedną z najsmuklejszych na rynku (35mm szerokości) pozwalając na elastyczny i prosty montaż w szynie DIN, tak jak dowolne 3-biegunowe urządzenie DIN. Oferuje także funkcję pamięci, zintegrowaną diodę LED statusu, zamykaną pokrywę, proste i pr ecyzyjne ustawienia..
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 129 g |
| ETIM class: | Current monitoring relay |
| Single-phase under current possible: | yes |
| Single-phase overcurrent possible: | yes |
| Three-phase under current possible: | no |
| Contains function DC-voltage under current: | yes |
| Current measuring range: | 0.15 - 15 A |
| Three-phase overcurrent possible: | no |
| Contains function DC-voltage overcurrent: | yes |
| Function DC-current hysteresis: | yes |
| Max. permitted delay-on energization time: | 0.3 s |
| Depth: | 73 mm |
| Width: | 35 mm |
| Type of electric connection: | Screw connection |
| Number of contacts as change-over contact: | 2 |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 2 |
| External current transformer: | no |
| Three-phase hysteresis possible: | no |
| Single-phase hysteresis possible: | yes |
| Height: | 90 mm |
| Min. adjustable delay-on energization time: | 0.1 s |
| Min. adjustable off-delay time: | 0.1 s |
| Max. permitted off-delay time: | 30 s |
| With detachable clamps: | no |
| Voltage type for actuating: | AC |
| Rated control supply voltage AC 50 Hz: | 380 - 415 V |
| Rated control supply voltage AC 60 Hz: | 380 - 415 V |
| Rated control supply voltage DC: | 380 - 415 V |
