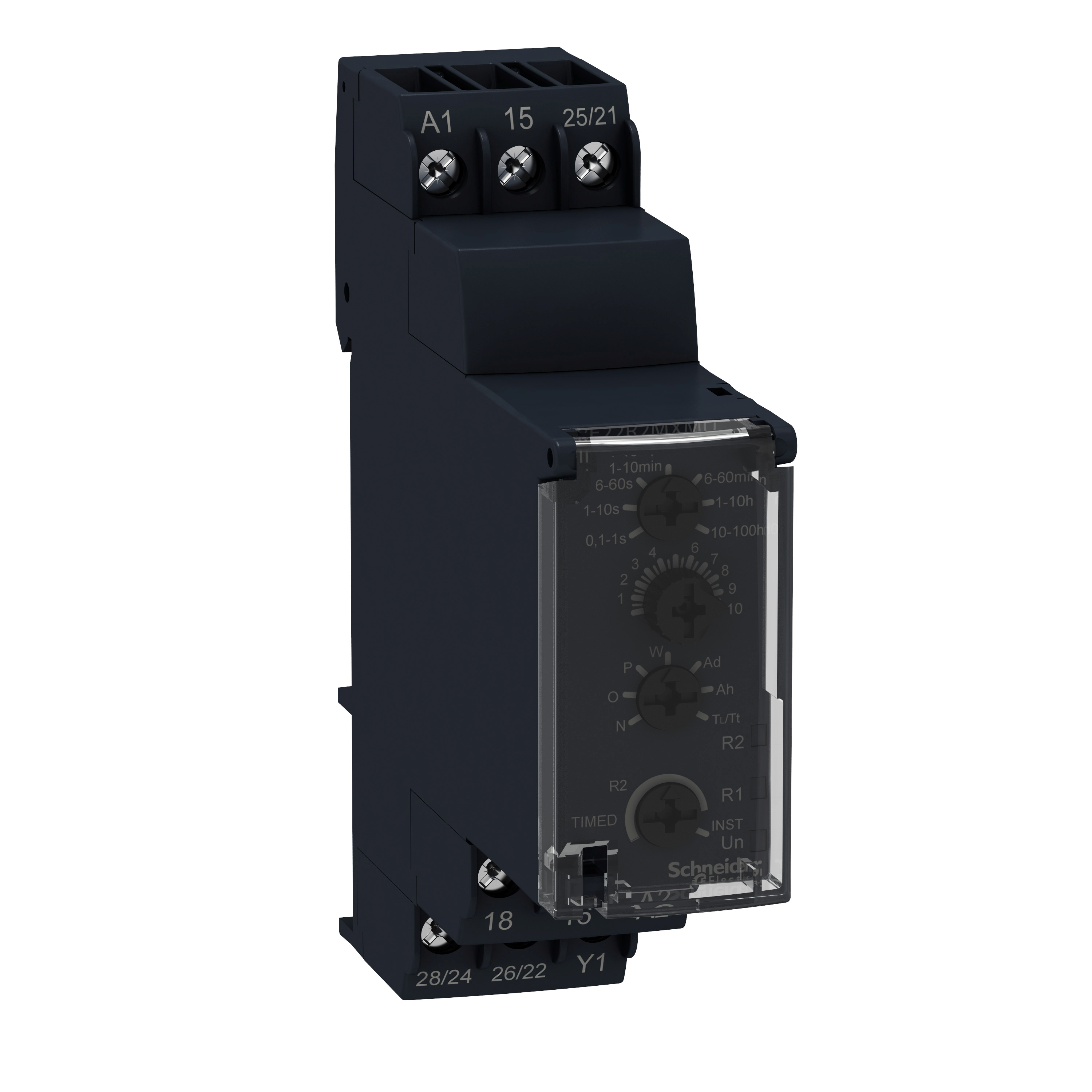

przekaźnik czasowy, Zelio Time, wielofunkcyjny, 0.1s/100h, 12V AC/DC, 2 C/O
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | RE22R2MJU |
| GTIN(EAN) | 3606480676598 |
| Price unit | piece |
| Catalog price | 522,36 zł (424,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik ten jest urządzeniem kontrolującym cykliczność procesu w takich zastosowaniach jak: automatyczne drzwi, alarmy, światło w toale tach, szlabany. Jest jednym z najwęźszych (22.5mm)tego typu urządzeń na rynku co pozwala go prosto zamontować na szynie DIN. Precyzyjny mechanizm sterujący jest chroniony zamykaną obudową z plastiku.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 103 g |
| ETIM class: | Timer relay |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 1 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Function delay-on energization: | yes |
| Number of outputs, delayed, change-over contact: | 2 |
| Function floating contact on energization: | no |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| With semiconductor output: | no |
| Depth: | 79.5 mm |
| Width: | 22.5 mm |
| Pluggable on auxiliary contact block: | no |
| Function flashing, starting with pulse, fixed time: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Clock function, starting with pulse, variable: | no |
| Clock function, starting with pause, variable: | no |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Function delay on de-energization: | yes |
| Type of electric connection: | Screw connection |
| Function pulse shaping: | yes |
| Function floating contact on de-energization: | no |
| Suitable as remote control: | no |
| Remote operation possible: | yes |
| Nominal current: | 8 A |
| Outputs, reversible delayed/undelayed: | yes |
| Voltage type for actuating: | AC/DC |
| Height: | 90 mm |
| Rated control supply voltage AC 60 Hz: | 12 - 12 V |
| Rated control supply voltage AC 50 Hz: | 12 - 12 V |
| Rated control supply voltage DC: | 12 - 12 V |
| Function star-delta: | no |
| Time range: | 0.1 - 360000 s |
| Suitable for front mounting: | no |
| With plug-in socket: | no |
