Zestaw listew zaciskowych Faza+N
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | R9H13405 |
| GTIN(EAN) | 3606480928017 |
| Price unit | piece |
| Catalog price | 44,53 zł (36,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

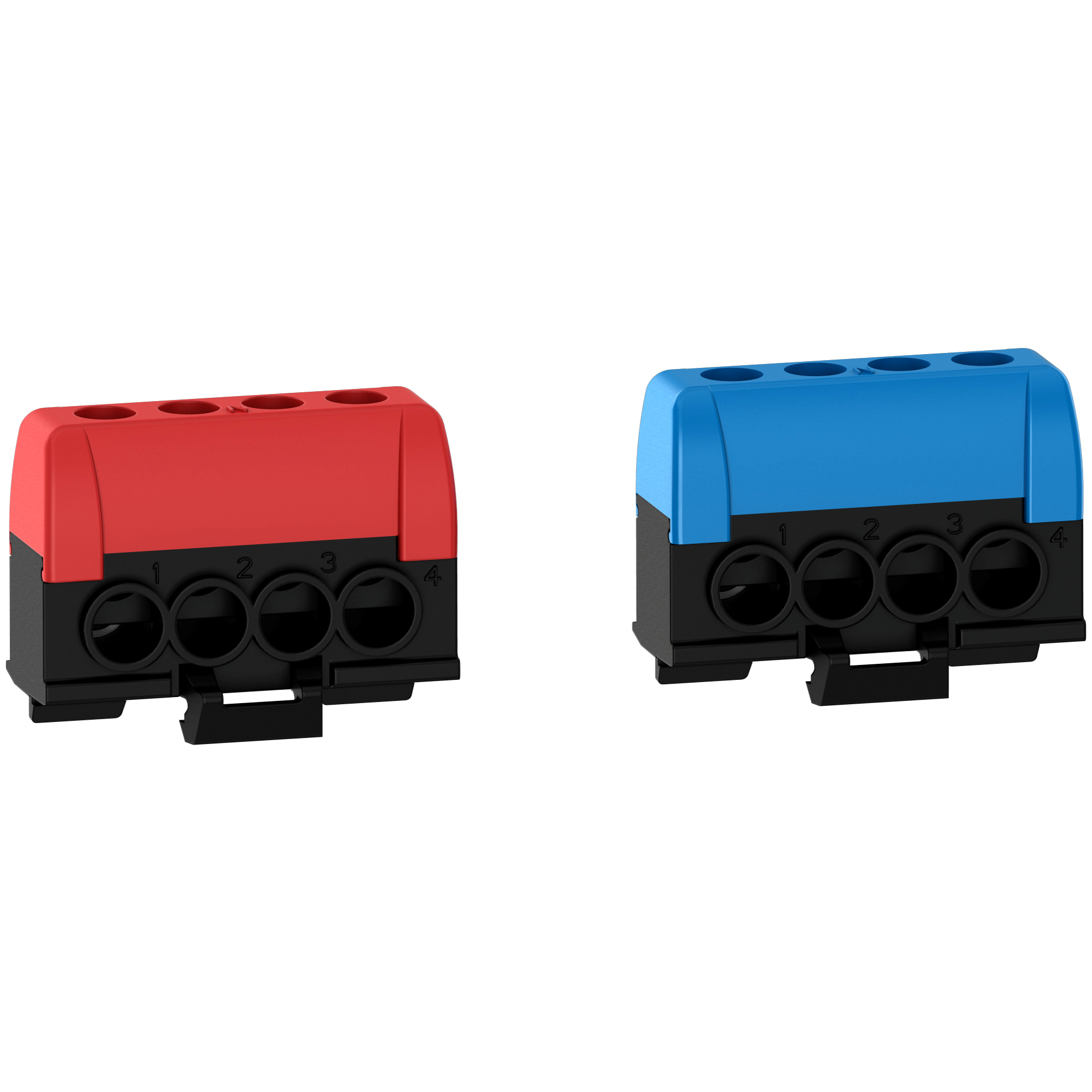

Jest to listwa zaciskowa Faza-N składająca się z 2 izolowanych listew zaciskowych. Zapewnia 8 wyjść (8 połączeń śrubowych rozmieszczonych po 8 na 16 mm²). Przeznaczona jest do montażu w budynkach mieszkalnych.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 70 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 4 |
| Connectable conductor cross section solid-core: | 2.5 - 16 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 16 mm² |
| Halogen free: | no |
| Mounting method: | Other |
| Transparent: | no |
| Number of poles: | 2 |
| Height: | 22 mm |
| Depth: | 32 mm |
| Closing plate required: | no |
| Colour: | Other |
| Rated voltage: | 440 V |
| Type of electrical connection 1: | Screw connection |
| Width: | 42 mm |
| Material insulation body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 63 A |
| Connectable conductor cross section multi-wired: | 2.5 - 16 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 16 mm² |
| Operating temperature: | -25 - 60 °C |
