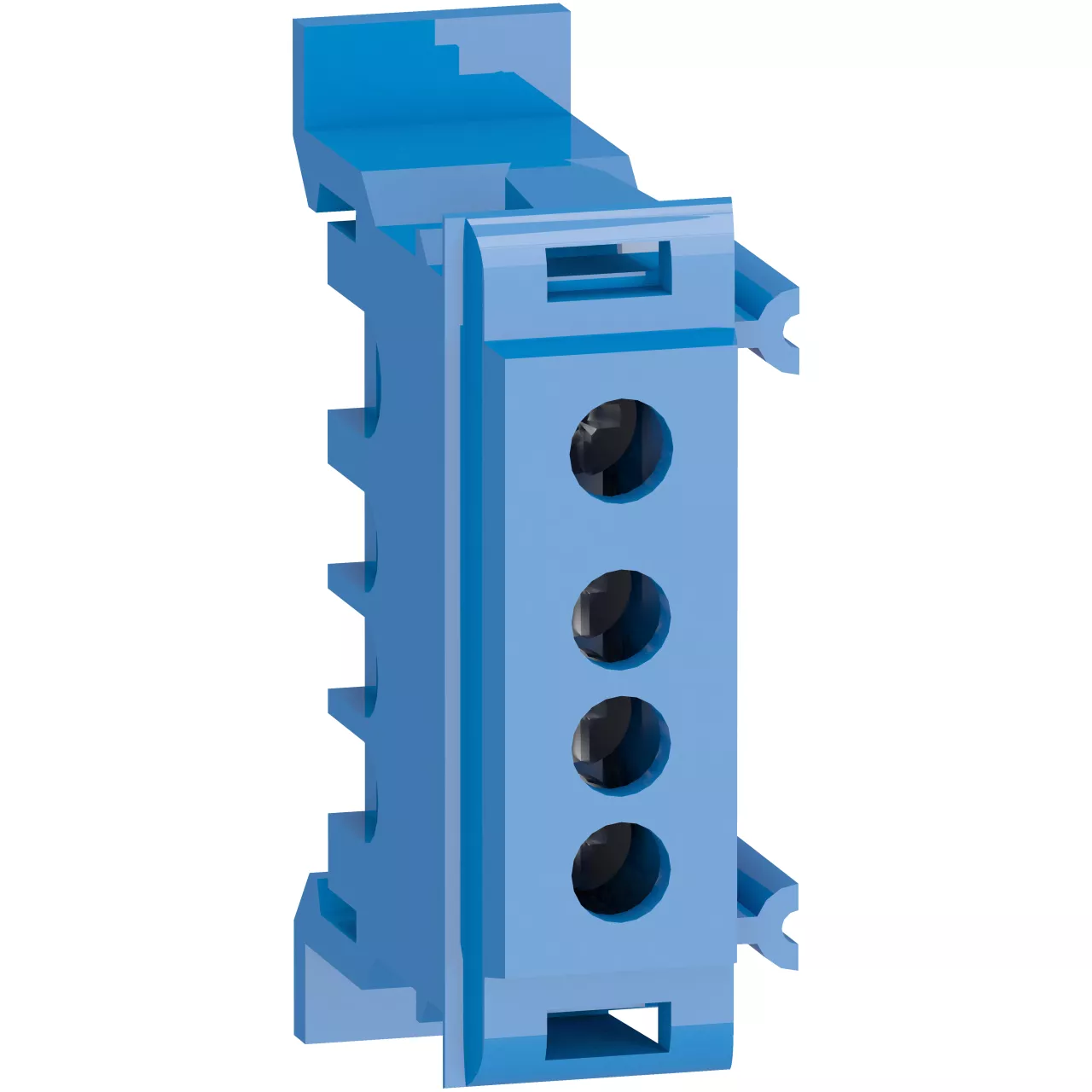

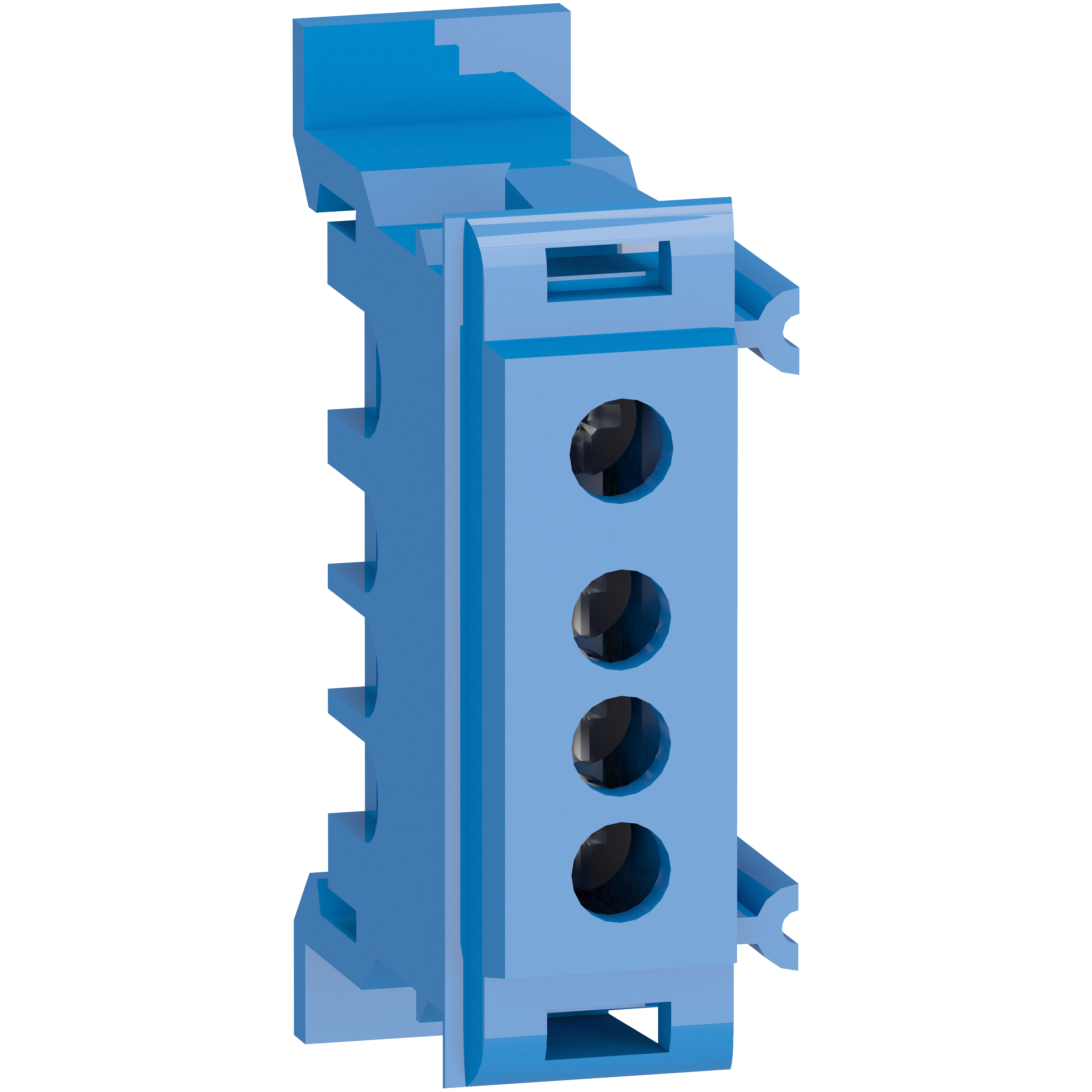

Blok zacisków Resi9 KV o 4 wprowadzeniach
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | R9H10955 |
| GTIN(EAN) | 3606481330765 |
| Price unit | piece |
| Catalog price | 136,53 zł (111,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 21 g |
| ETIM class: | Main line branch terminal |
| Suitable for extra fine-strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | yes |
| Suitable for fine strand conductors: | yes |
| Number of inputs: | 1 |
| Number of outputs: | 3 |
| Contact safe: | yes |
| Nominal current: | 63 A |
| Mounting method: | Screw |
| Connection type: | Screwing |
| Number of poles: | 1 |
| Height: | 49 mm |
| Suitable for stranded conductors: | yes |
| Depth: | 25 mm |
| Suitable for solid conductors: | yes |
| Width: | 13 mm |
| Conductor cross section, output: | 10 - 10 mm² |
| Conductor cross section, input: | 16 - 16 mm² |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
