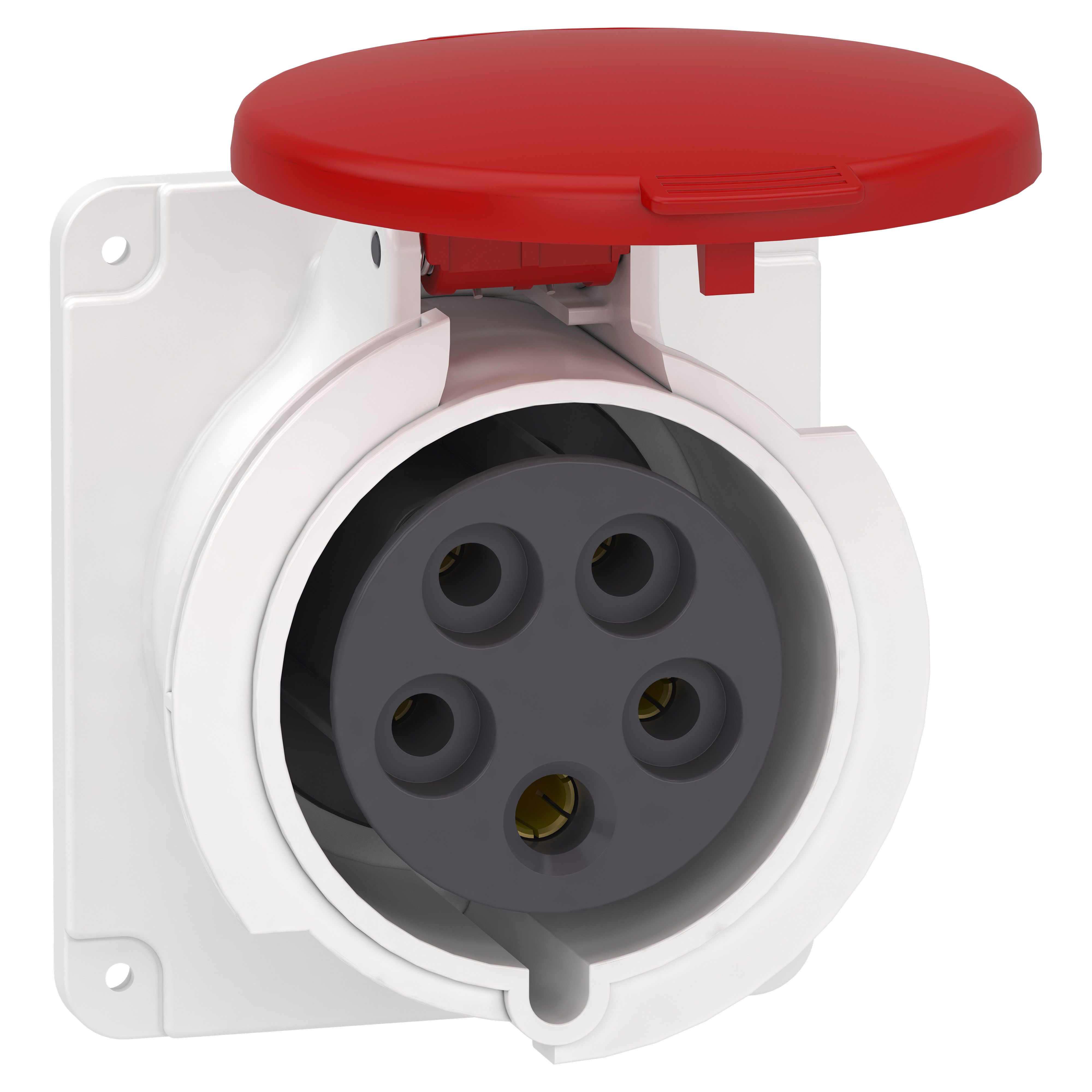

Gniazdo Pratika 32A 3P-N-E 380-415V IP44 50-60Hz
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | PKF32G435 |
GTIN(EAN) | 3303432033644 |
Price unit | piece |
Catalog price | 156,30 zł (127,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 246 g |
ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
RAL-number: | 7035 |
Drill hole distance vertical: | 85 mm |
Drill hole distance horizontal: | 77 mm |
Flange size vertical: | 100 mm |
Flange size horizontal: | 90 mm |
Identification colour: | Red |
Material: | Plastic |
Number of poles: | 5 |
Clock hour position: | 6 h |
Degree of protection (IP): | IP44 |
Rated voltage: | 380 - 415 V |
Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
IEC-amperage: | 32 A |
Connection system: | Screwed terminal |
Insert direction: | Straight |
Rated frequency: | 50 - 60 Hz |
Military model: | no |
Cable entry: | None |
