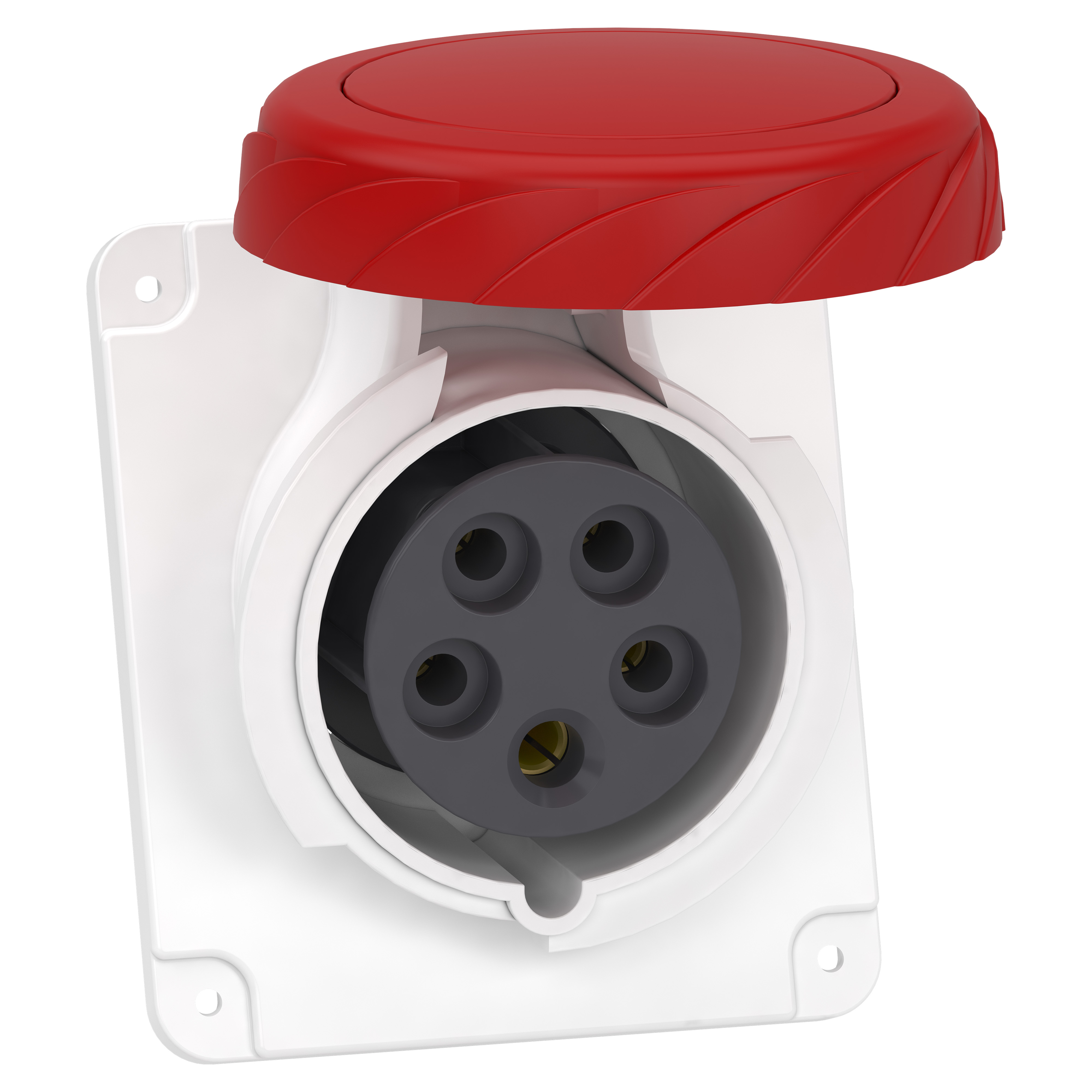

Gniazdo Pratika 16A 3P-N-E 380-415V IP67 50-60Hz
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | PKF16F735 |
| GTIN(EAN) | 3303432033262 |
| Price unit | piece |
| Catalog price | 106,55 zł (86,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 187 g |
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| RAL-number: | 7035 |
| Drill hole distance vertical: | 85 mm |
| Drill hole distance horizontal: | 77 mm |
| Flange size vertical: | 100 mm |
| Flange size horizontal: | 90 mm |
| Identification colour: | Red |
| Material: | Plastic |
| Number of poles: | 5 |
| Clock hour position: | 6 h |
| Degree of protection (IP): | IP67 |
| Rated voltage: | 380 - 415 V |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| IEC-amperage: | 16 A |
| Connection system: | Screwed terminal |
| Insert direction: | Angled |
| Rated frequency: | 50 - 60 Hz |
| Military model: | no |
| Cable entry: | None |
