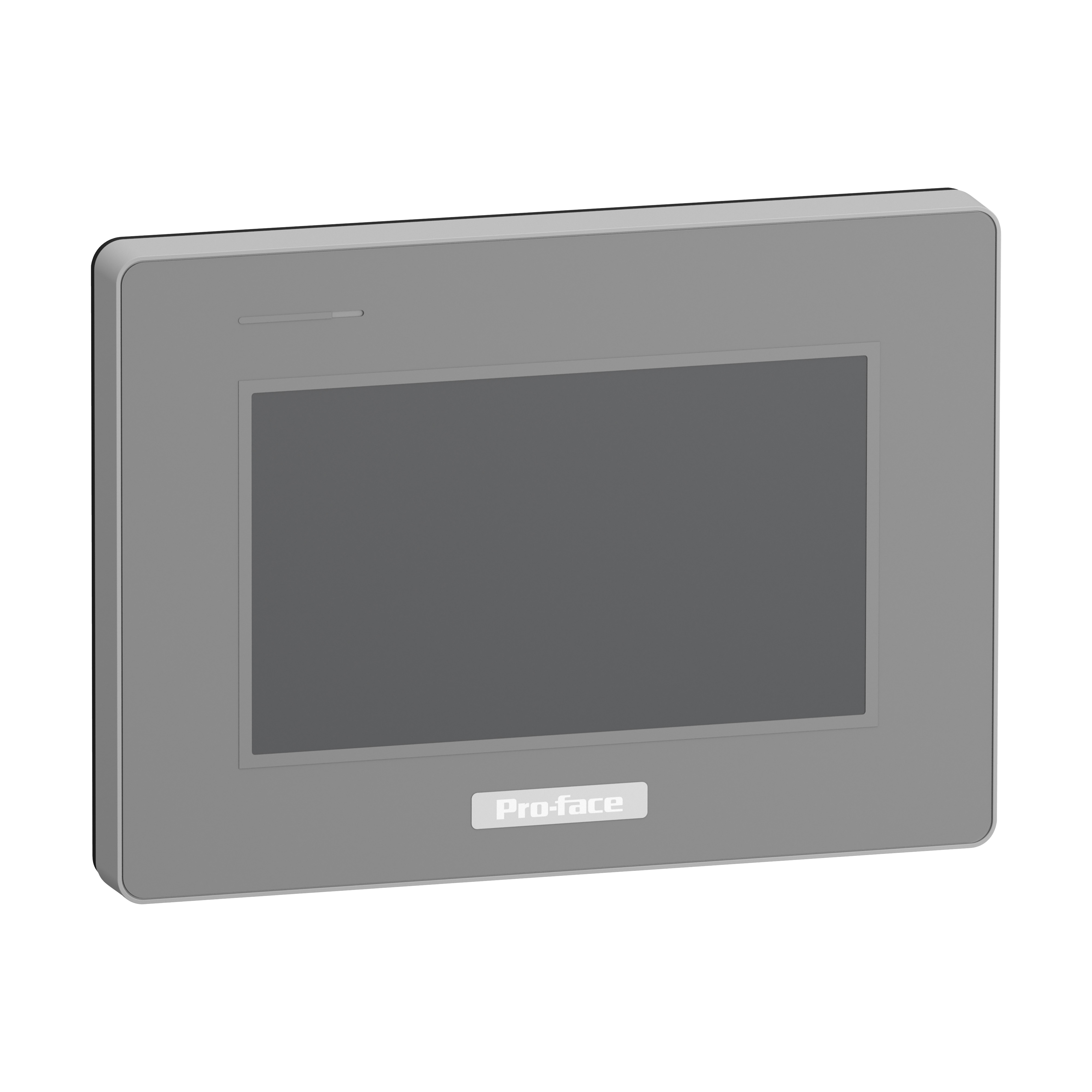

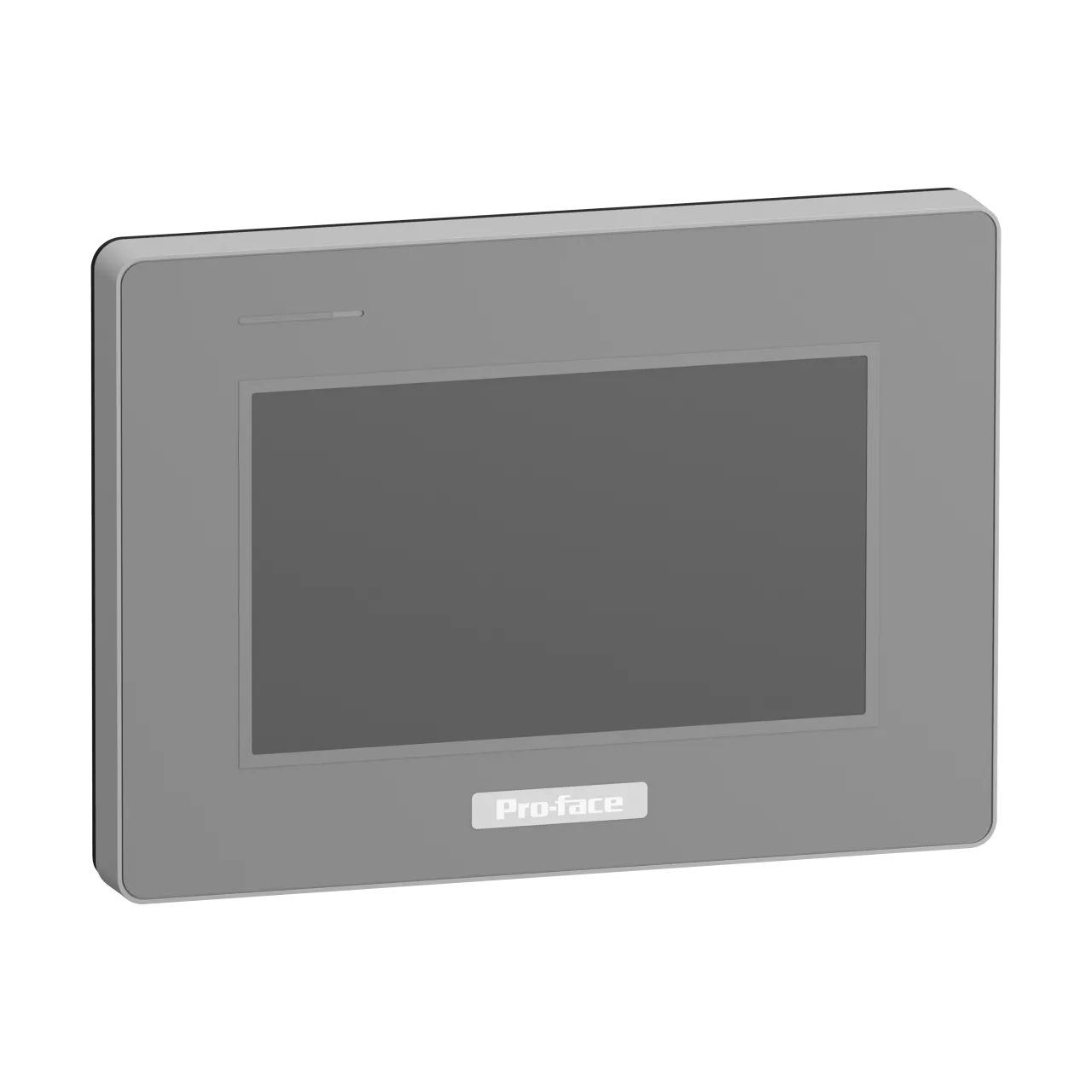

4”W Panel Basic Ekran STM6
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | PFXSTM62TP |
| GTIN(EAN) | 3606481856463 |
| Price unit | piece |
| Catalog price | 2 202,93 zł (1 791,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 374 g |
| ETIM class: | Graphic panel |
| Number of pixels, horizontal: | 480 |
| Height of the front: | 101.1 mm |
| Width of the front: | 140.4 mm |
| Suitable for safety functions: | no |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| Number of colours of the display: | 16000000 |
| IO link master: | no |
| Colour display: | yes |
| Degree of protection (IP), front side: | IP65 |
| Screen diagonal: | 4 cal |
| With SW interfaces: | yes |
| Operating temperature: | 0 - 50 °C |
| With message indication: | no |
| Process value representation (output) possible: | no |
| With message system (incl. buffer and confirmation): | no |
| With recipes: | no |
| Process default value (input) possible: | no |
| With printer output: | no |
| Radio standard GPRS: | no |
| Number of password levels: | 0 |
| Radio standard GSM: | no |
| Additional software components, loadable: | no |
| Radio standard UMTS: | no |
| Number of online languages: | 0 |
| Type of display: | TFT |
| Number of pixels, vertical: | 272 |
| Number of grey-scales/blue-scales of display: | 16 |
| With alpha numeric keyboard: | no |
| With numeric keyboard: | no |
| Wall mounting/direct mounting: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Built-in depth: | 29.8 mm |
| Supporting protocol for KNX: | no |
| Supply voltage DC: | 0 - 24 V |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Degree of protection (NEMA), front side: | 13 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 1 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces industrial Ethernet: | 0 |
