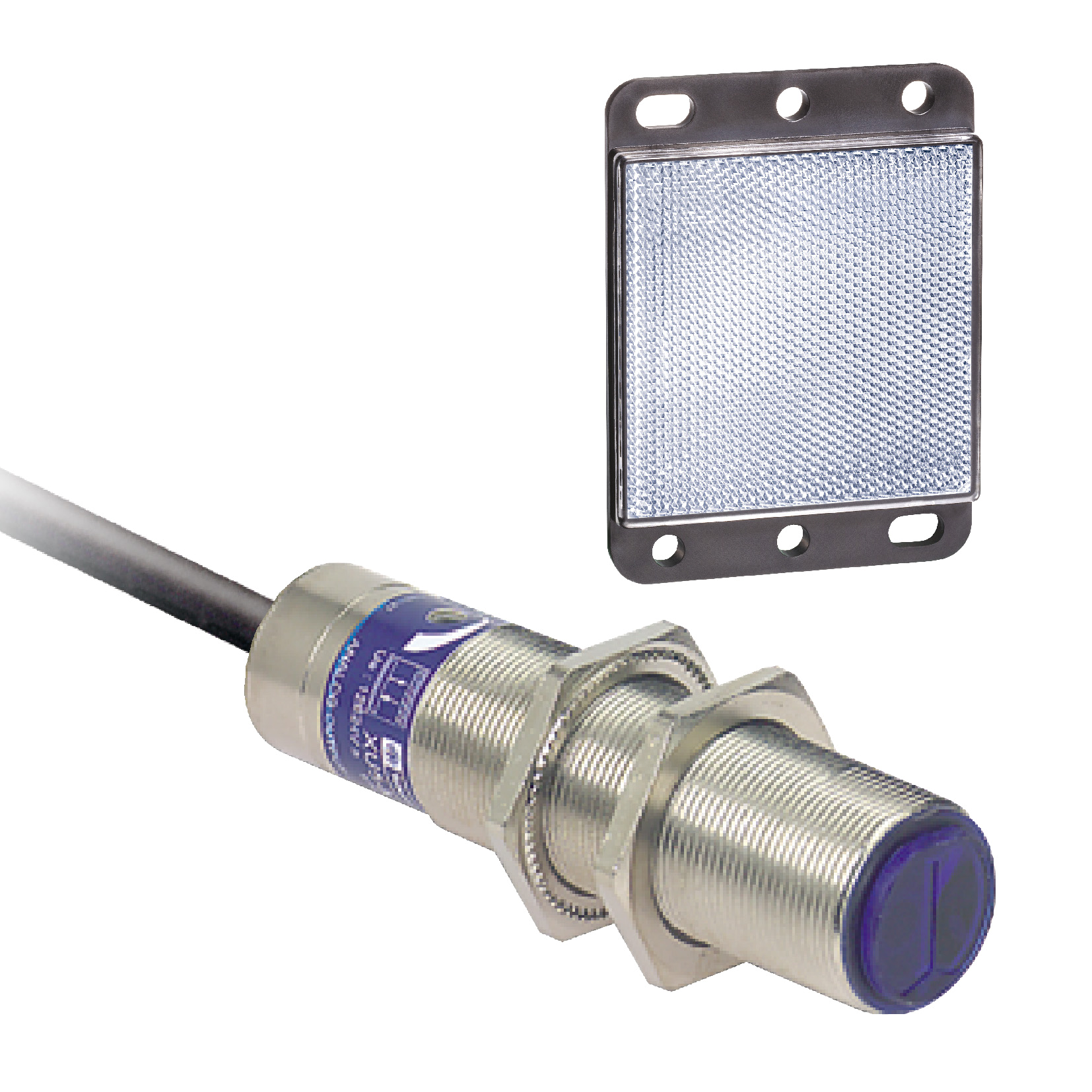

OsiSense XU Czujnik fotoelektryczny M18 1NO, 24…240V AC/DC, kabel 2m XU9M18MA230
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | XU9M18MA230 |
GTIN(EAN) | 3389110735864 |
Price unit | piece |
Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
Sale price | from 653,94 zł / szt. (531,66 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 151 g |
ETIM class: | Retroreflective photoelectric sensor |
Length of sensor: | 82 mm |
Housing material: | Metal |
Suitable for safety functions: | no |
Type of safety according to IEC 61496-1: | 1 |
Explosion safety category for dust: | None |
With reflector: | no |
With restart blockage: | no |
With monitoring function downstream switching devices: | no |
With communication interface Ethernet: | no |
With communication interface SSD: | no |
With communication interface RS-485: | no |
With communication interface RS-422: | no |
With communication interface RS-232: | no |
Ambient temperature: | -25 - 55 °C |
Min. reflector distance: | 1000 mm |
Setting procedure: | Manual adjustment |
Explosion safety category for gas: | None |
With communication interface SSI: | no |
With communication interface PROFIBUS: | no |
With communication interface INTERBUS: | no |
Max. output current: | 200 mA |
Rated control supply voltage AC 60 Hz: | 24 - 240 V |
Rated control supply voltage AC 50 Hz: | 24 - 240 V |
Rated control supply voltage DC: | 24 - 240 V |
Operation agent-safety class: | Safety class 0 |
Max. output current at protected output: | 200 mA |
With communication interface DeviceNet: | no |
With communication interface CANOpen: | no |
Switching frequency: | 25 Hz |
With communication interface AS-Interface: | no |
With communication interface analogue: | no |
With time function: | no |
Voltage type: | AC/DC |
Type of light: | Polarized red light |
Laser protection class: | None |
Degree of protection (IP): | IP67K |
Type of interface for safety communication: | Other |
Material of optical surface: | Plastic |
Max. switching distance: | 3000 mm |
Type of switching output: | 2-wire |
Type of electric connection: | Cable radial |
Type of switch function: | Normally open contact (NO) |
Response time: | 20 ms |
With other analogue output: | no |
Number of contact energized outputs with signalling function: | 0 |
Number of semiconductor outputs with signalling function: | 1 |
Number of protected semiconductor outputs: | 0 |
Pre failure notice: | no |
Construction type housing: | Cylinder, screw-thread |
Number of protected contact energized outputs: | 0 |
Rated switching distance: | 2000 mm |
Diameter sensor: | 18 mm |
Analogue output -10 V ... +10 V: | no |
Analogue output 0 mA ... 20 mA: | no |
Analogue output 0 V ... 10 V: | no |
Analogue output 4 mA ... 20 mA: | no |
Sensing mode: | Dark switching |
