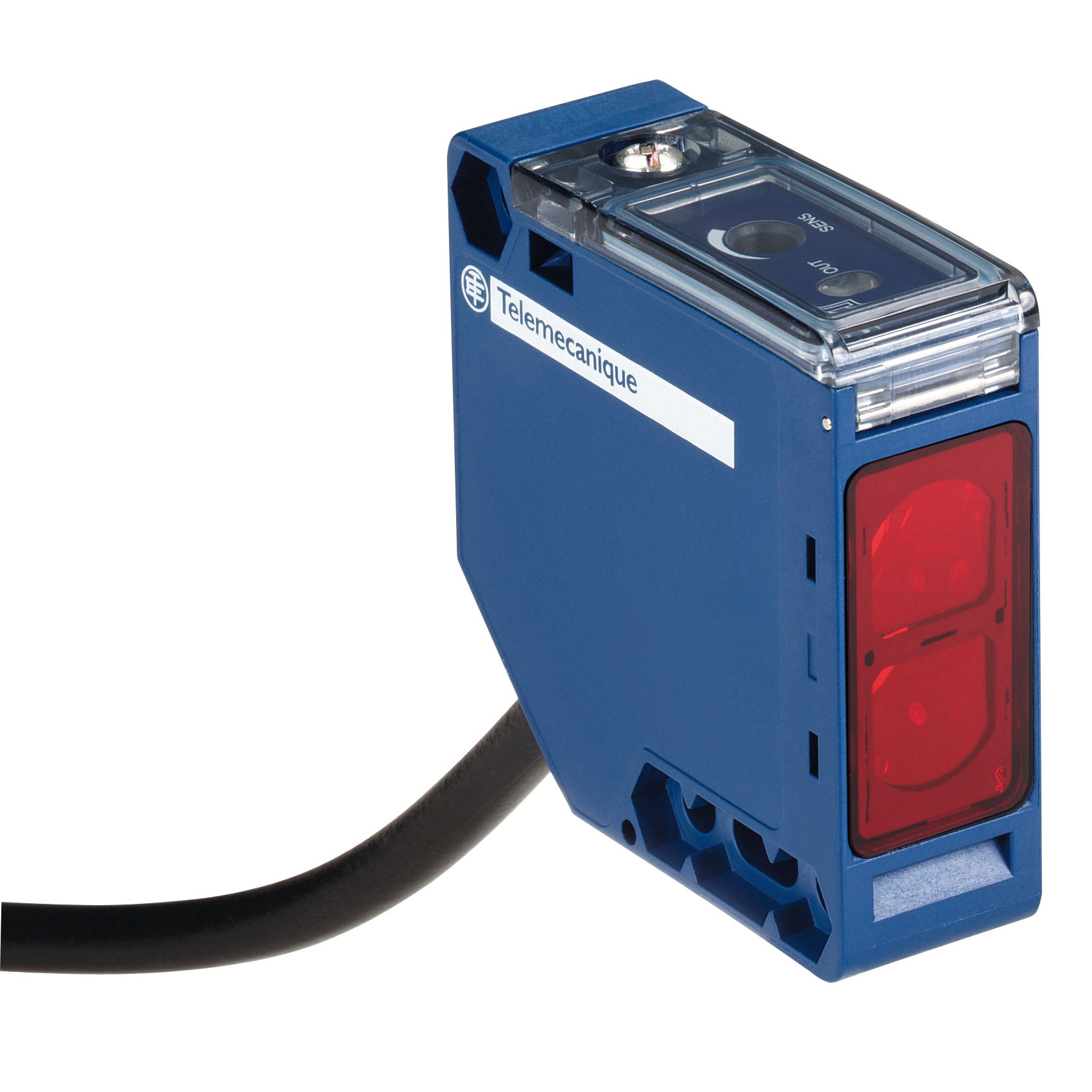

OsiSense XU Czujnik fotoelektryczny kompaktowy 1 styk C/O 24/240 V AC kabel 2m XUK1ARCNL2

• buy at the outlet / on sale
• Buy online

Information	Value
Supplier	Schneider Electric Polska Sp. z o.o.
Symbol	XUK1ARCNL2
GTIN(EAN)	3389110161076
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Additional features:

Information	Value
Gross weight:	185 g
ETIM class:	Retroreflective photoelectric sensor
Length of sensor:	50 mm
Housing material:	Plastic
Suitable for safety functions:	no
Type of safety according to IEC 61496-1:	1
Explosion safety category for dust:	None
With reflector:	no
Height of sensor:	50 mm
With restart blockage:	no
With monitoring function downstream switching devices:	no
With communication interface Ethernet:	no
With communication interface SSD:	no
With communication interface RS-485:	no
With communication interface RS-422:	no
With communication interface RS-232:	no
Ambient temperature:	-25 - 55 °C
Min. reflector distance:	5000 mm
Setting procedure:	Other
Explosion safety category for gas:	None
With communication interface SSI:	no
With communication interface PROFIBUS:	no
With communication interface INTERBUS:	no
Max. output current:	3000 mA
Rated control supply voltage AC 60 Hz:	24 - 240 V
Rated control supply voltage AC 50 Hz:	24 - 240 V
Rated control supply voltage DC:	24 - 240 V
Operation agent-safety class:	Safety class 0
Max. output current at protected output:	100 mA
With communication interface DeviceNet:	no
With communication interface CANOpen:	no
Switching frequency:	20 Hz
With communication interface AS-Interface:	no
With communication interface analogue:	no
With time function:	no
Width sensor:	18 mm
Voltage type:	AC/DC
Type of light:	Infrared light
Laser protection class:	None
Degree of protection (IP):	IP65
Type of interface for safety communication:	Other
Material of optical surface:	Plastic
Max. switching distance:	10000 mm
Type of switching output:	Relay contact
Type of electric connection:	Cable radial
Type of switch function:	Change-over contact (NO/NC)
Response time:	25 ms
With other analogue output:	no
Number of contact energized outputs with signalling function:	1
Number of semiconductor outputs with signalling function:	0
Number of protected semiconductor outputs:	0
Pre failure notice:	no
Construction type housing:	Cuboid
Number of protected contact energized outputs:	0
Rated switching distance:	7000 mm
Analogue output -10 V ... +10 V:	no
Analogue output 0 mA ... 20 mA:	no
Analogue output 0 V ... 10 V:	no
Analogue output 4 mA ... 20 mA:	no
Sensing mode:	Light switching

Additional information:

Information	Value
Updated:	2023-12-04 20:41:47
Files to download:	EUDoC NVE7094500-02 [XU] 2022-03-02.pdf (418,3 KB) (Deklaracja DOC CE (Deklaracja zgodności CE), ) ENVPEP111232EN_V2.pdf (284,9 KB) (Deklaracja EPD (Deklaracja Środowiskowa Produktu), ) ENVEOLI111207EN_V0.pdf (241,4 KB) (Inne, )
External links:	Głęboki link dot. REACH Instrukcja montażu Broszura sprzedaży
