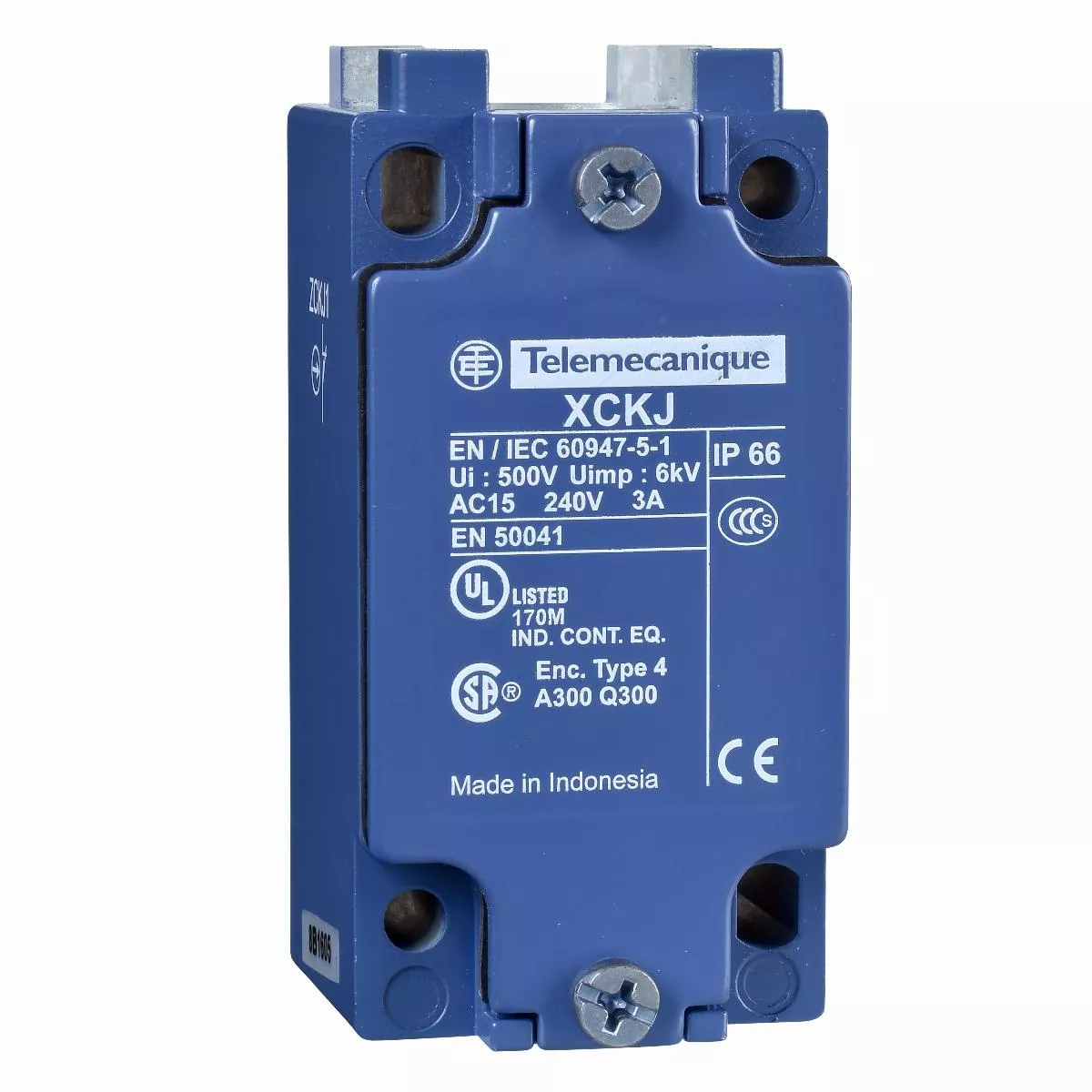

OsiSense XC Korpus łącznika krańcowego działanie migowe 1NC+1NO konektor M20 ZCKJ1H29
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ZCKJ1H29 |
| GTIN(EAN) | 3389110646641 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 100,64 zł / szt. (81,82 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Produkty ZC są częścią serii XC Standard, oferty łączników krańcowych ZCKJ1H29 to korpus łączników krańcowych kompatybilny z gamą XCKJ. Korpus tego łącznika krańcowego posiada 1 normalnie zamknięty + 1 normalnie otwarty styk zatrzaskowy posrebrzany, a jego minimalna prędkość aktywacji wynosi 0. 1m/min. Łączy się poprzez zaciski śrubowe (zdolność mocowania: 1 x 0. 4.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 286 g |
| ETIM class: | End switch |
| Width sensor: | 40 mm |
| Length of sensor: | 44 mm |
| Housing material: | Metal |
| Suitable for safety functions: | no |
| Switching function: | Quick-break switch |
| Degree of protection (IP): | IP65 |
| Rated operation current Ie at AC-15, 125 V: | 0 A |
| Explosion safety category for dust: | None |
| Type of interface for safety communication: | None |
| Switching function latching: | no |
| Rated operation current Ie at AC-15, 230 V: | 3 A |
| Rated operation current Ie at DC-13, 230 V: | 0.27 A |
| Type of electric connection: | Cable entry metrical |
| Rated operation current Ie at DC-13, 24 V: | 0 A |
| Height of sensor: | 77 mm |
| Rated operation current Ie at DC-13, 125 V: | 0 A |
| Rated operation current Ie at AC-15, 24 V: | 0 A |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 1 |
| Coating housing: | Other |
| With status indication: | no |
| Number of safety auxiliary contacts: | 0 |
| Construction type housing: | Cuboid |
| Output electronic: | no |
| Explosion safety category for gas: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Diameter sensor: | 0 mm |
| Type of interface: | None |
| Type of control element: | None |
| Alignment of the control element: | Other |
| Forced opening: | yes |
