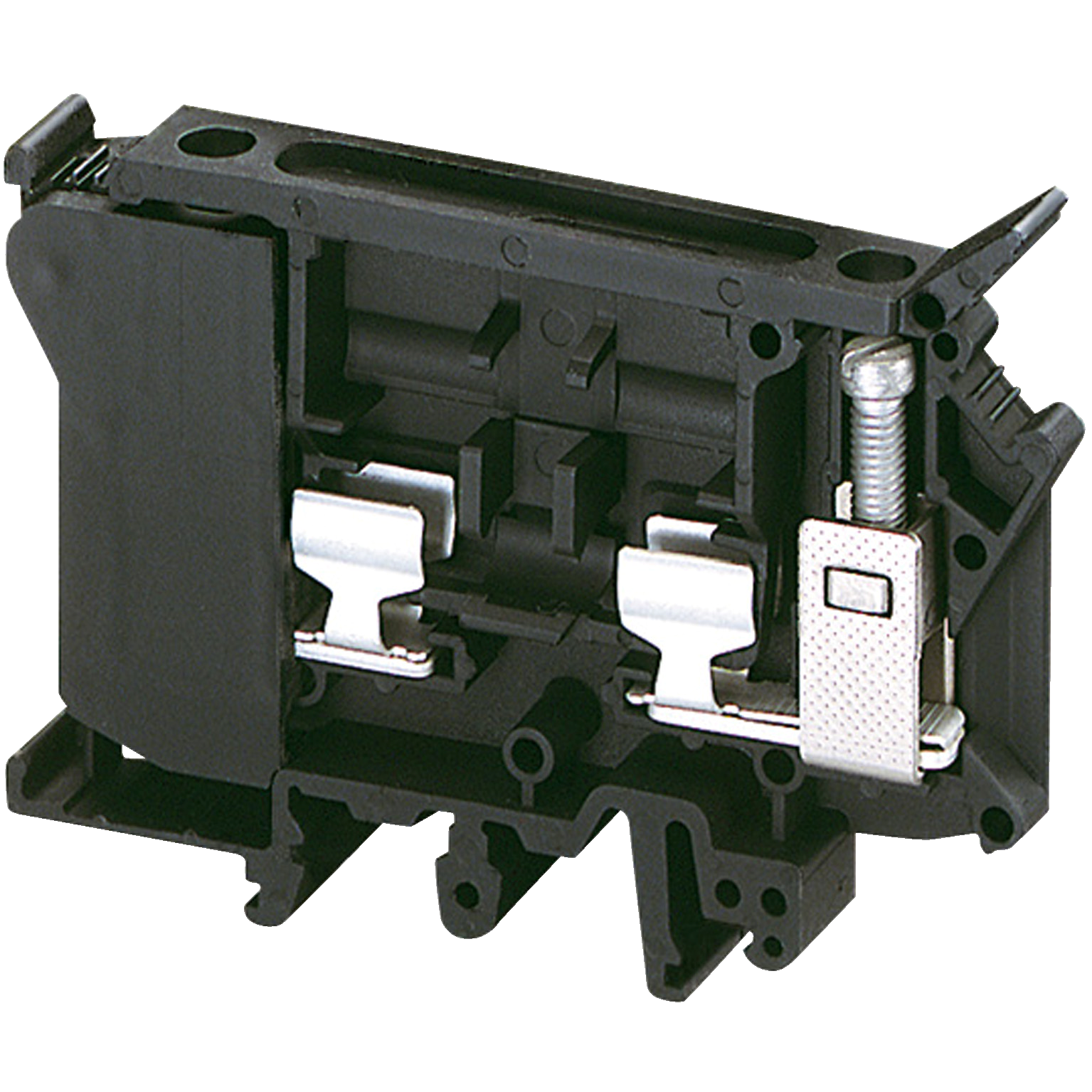

Złączki NSY, zacisk śrubowy złączone
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | NSYTRV42SF6 |
| GTIN(EAN) | 3606480532368 |
| Price unit | piece |
| Catalog price | 82,30 zł (66,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 34 g |
| ETIM class: | Fuse terminal block |
| Number of levels: | 1 |
| Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.2 - 4 mm² |
| Height: | 60.5 mm |
| Depth: | 79 mm |
| Closing plate required: | no |
| Type of electrical connection 2: | Screw connection |
| Colour: | Black |
| Type of electrical connection 1: | Screw connection |
| Rated voltage: | 500 V |
| Width: | 10.2 mm |
| Type of fuse insert: | G-fuse 6.3x32 mm |
| Material insulation body: | Thermoplastic |
| Type of indication element for defect indication: | None |
| Type of fuse holder: | Swivelling |
| Rated current In: | 10 A |
| Connectable conductor cross section multi-wired: | 0.5 - 16 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 4 mm² |
| Operating temperature: | -40 - 130 °C |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:56 |
| Files to download: | |
| External links: |
