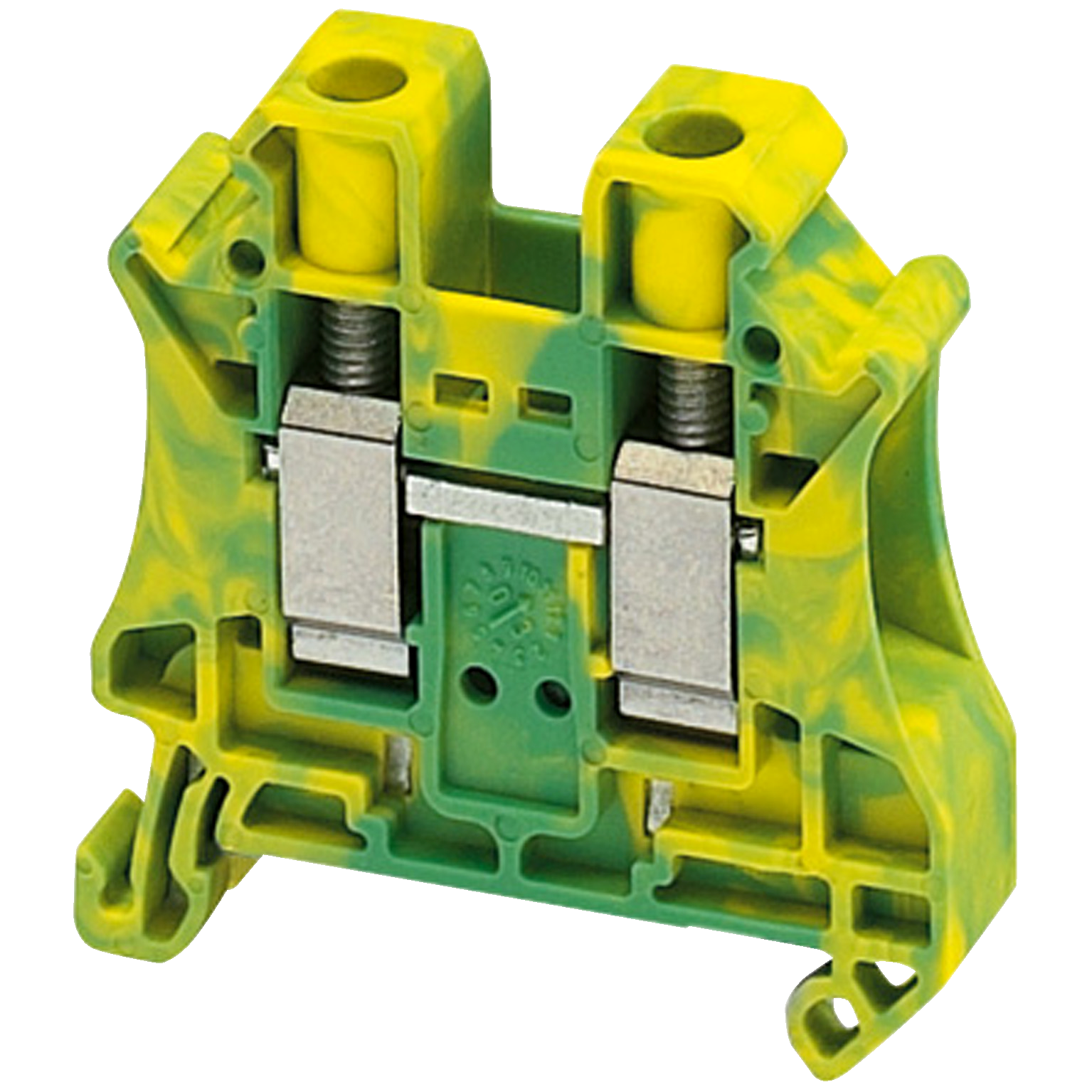

Złączki NSY, zacisk śrubowy uziemienie ochronne 2 punktowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | NSYTRV102PE |
GTIN(EAN) | 3606480532115 |
Price unit | piece |
Catalog price | 27,40 zł (22,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 28 g |
ETIM class: | Ground terminal block |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
Inflammability class of insulation material according to with UL94: | V0 |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.2 - 10 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
PEN function possible: | no |
Height: | 47.5 mm |
Closing plate required: | yes |
Depth: | 47.7 mm |
Type of electrical connection 2: | Screw connection |
Colour: | Green/yellow |
Width: | 10.2 mm |
Type of electrical connection 1: | Screw connection |
Material insulation body: | Thermoplastic |
Connectable conductor cross section multi-wired: | 0.5 - 16 mm² |
Operating temperature: | -40 - 130 °C |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 10 mm² |
