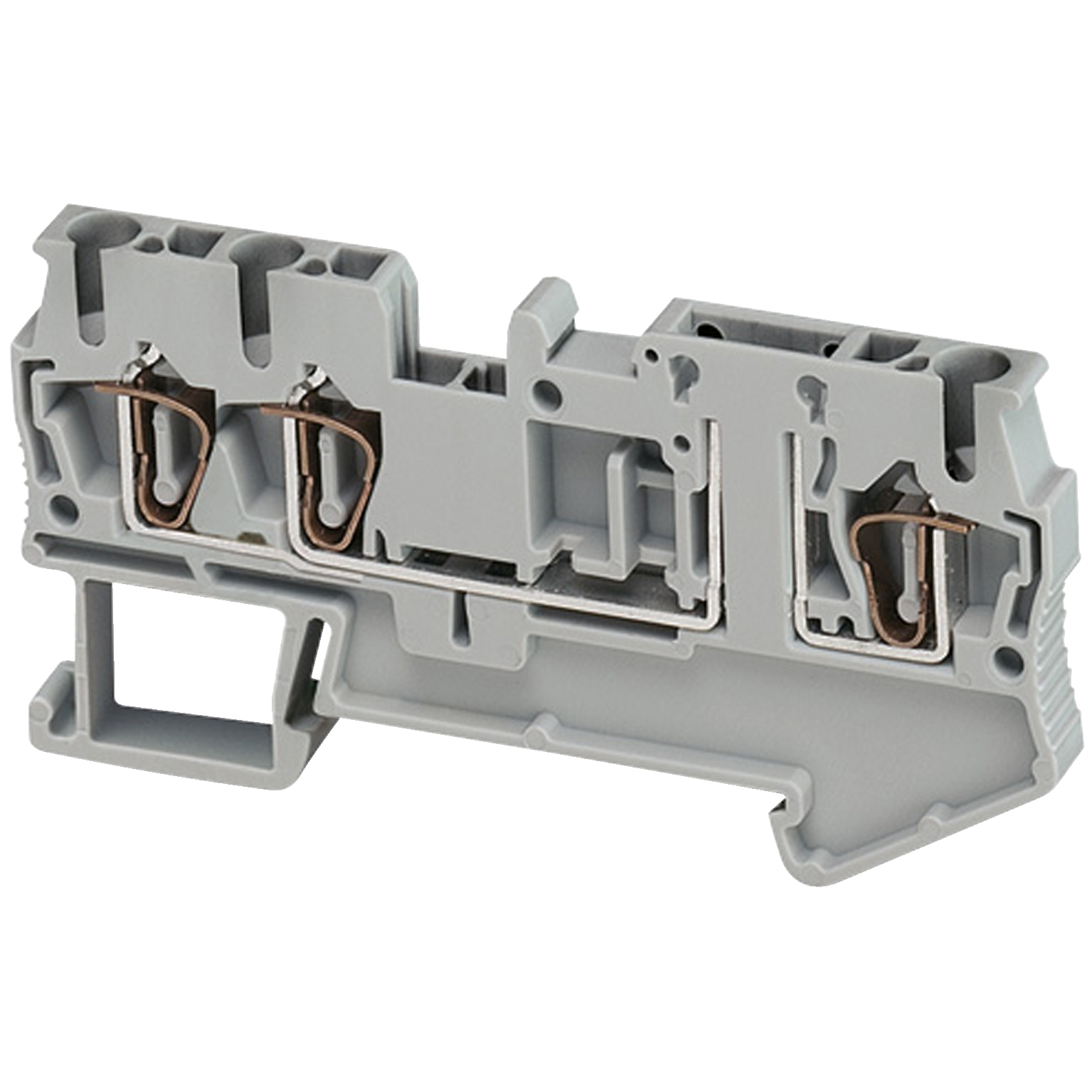

Złączki NSY, zacisk sprężynowy podstawowy rozłącznik blokowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | NSYTRR23TB |
GTIN(EAN) | 3606480532962 |
Price unit | piece |
Catalog price | 22,99 zł (18,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 9 g |
ETIM class: | Component terminal block |
Number of levels: | 1 |
Number of clamp positions per level: | 3 |
Connectable conductor cross section solid-core: | 0.8 - 4 mm² |
Internally connected stages: | no |
Inflammability class of insulation material according to with UL94: | V0 |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.8 - 4 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Height: | 36.5 mm |
Closing plate required: | yes |
Depth: | 72 mm |
Colour: | Grey |
Type of electrical connection 2: | Spring clamp connection |
Type of electrical connection 1: | Spring clamp connection |
Width: | 5.2 mm |
Rated voltage: | 400 V |
Type of component: | Free configurable |
Material insulation body: | Thermoplastic |
Explosion-tested version 'Ex e': | no |
Rated current In: | 20 A |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Operating temperature: | -40 - 130 °C |
