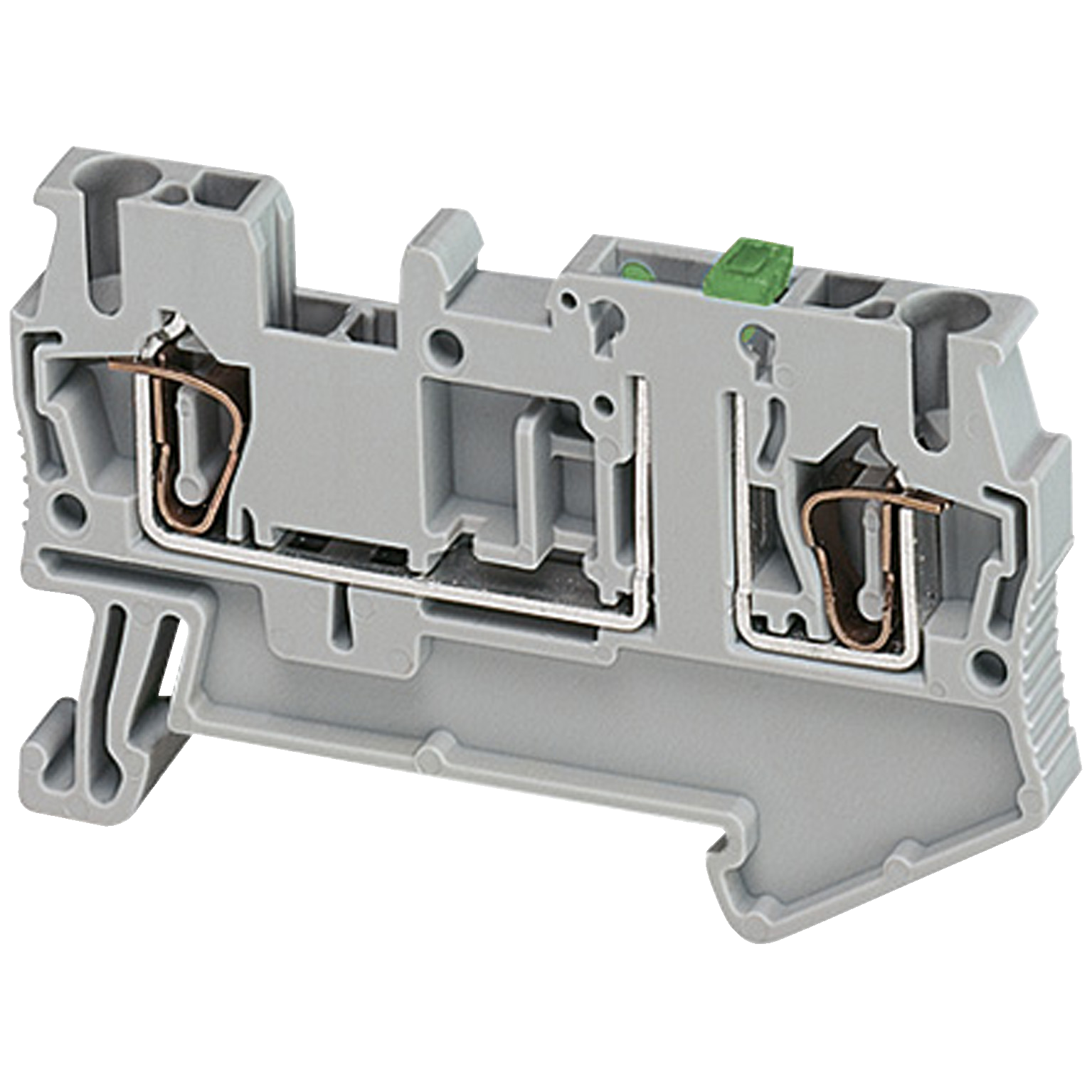

Złączki NSY, zacisk sprężynowy bezpiecznik nożowy 2 punktowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | NSYTRR22SC |
| GTIN(EAN) | 3606480532900 |
| Price unit | piece |
| Catalog price | 30,58 zł (24,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 8 g |
| ETIM class: | (Knife) disconnect terminal block |
| Number of levels: | 1 |
| Number of clamp positions per level: | 1 |
| Connectable conductor cross section solid-core: | 0.8 - 4 mm² |
| Internally connected stages: | no |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.8 - 4 mm² |
| Type of slitting: | Swivelling |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 36.5 mm |
| With integrated test socket: | no |
| Depth: | 60.5 mm |
| Closing plate required: | yes |
| Type of cross disconnection: | Swivelling |
| Colour: | Grey |
| Type of electrical connection 2: | Spring clamp connection |
| Type of electrical connection 1: | Spring clamp connection |
| Rated voltage: | 400 V |
| Width: | 5.2 mm |
| Material insulation body: | Thermoplastic |
| Rated current In: | 20 A |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Operating temperature: | -40 - 130 °C |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
