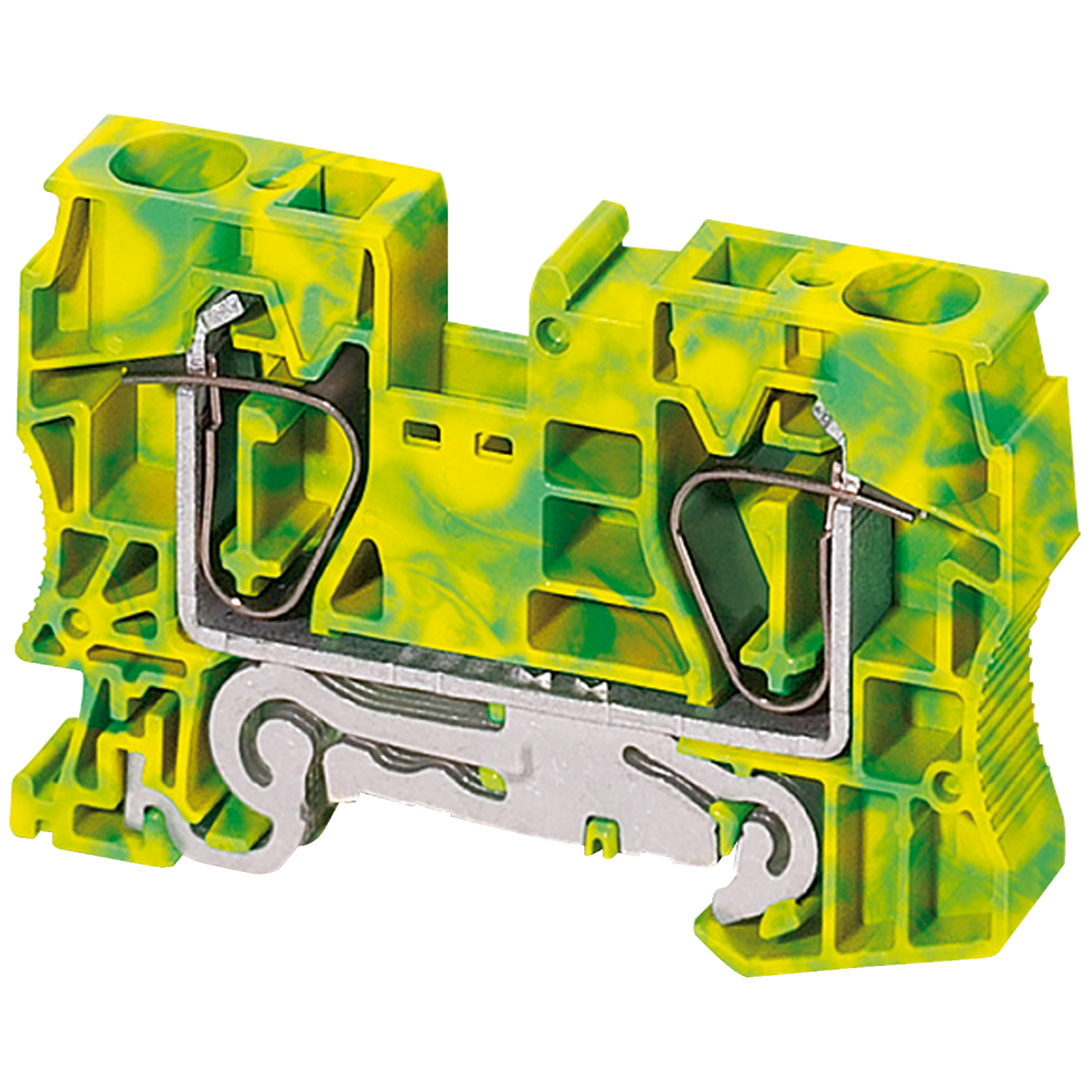

Złączki NSY, zacisk sprężynowy uziemienie ochronne 2 punktowy
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | NSYTRR162PE |
| GTIN(EAN) | 3606480532887 |
| Price unit | piece |
| Catalog price | 38,39 zł (31,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 48 g |
| ETIM class: | Ground terminal block |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Connectable conductor cross section solid-core: | 0.2 - 25 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.2 - 16 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| PEN function possible: | no |
| Height: | 51 mm |
| Closing plate required: | yes |
| Depth: | 80 mm |
| Type of electrical connection 2: | Spring clamp connection |
| Colour: | Green/yellow |
| Width: | 12.2 mm |
| Type of electrical connection 1: | Spring clamp connection |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section multi-wired: | 0.2 - 16 mm² |
| Operating temperature: | -40 - 130 °C |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 16 mm² |
