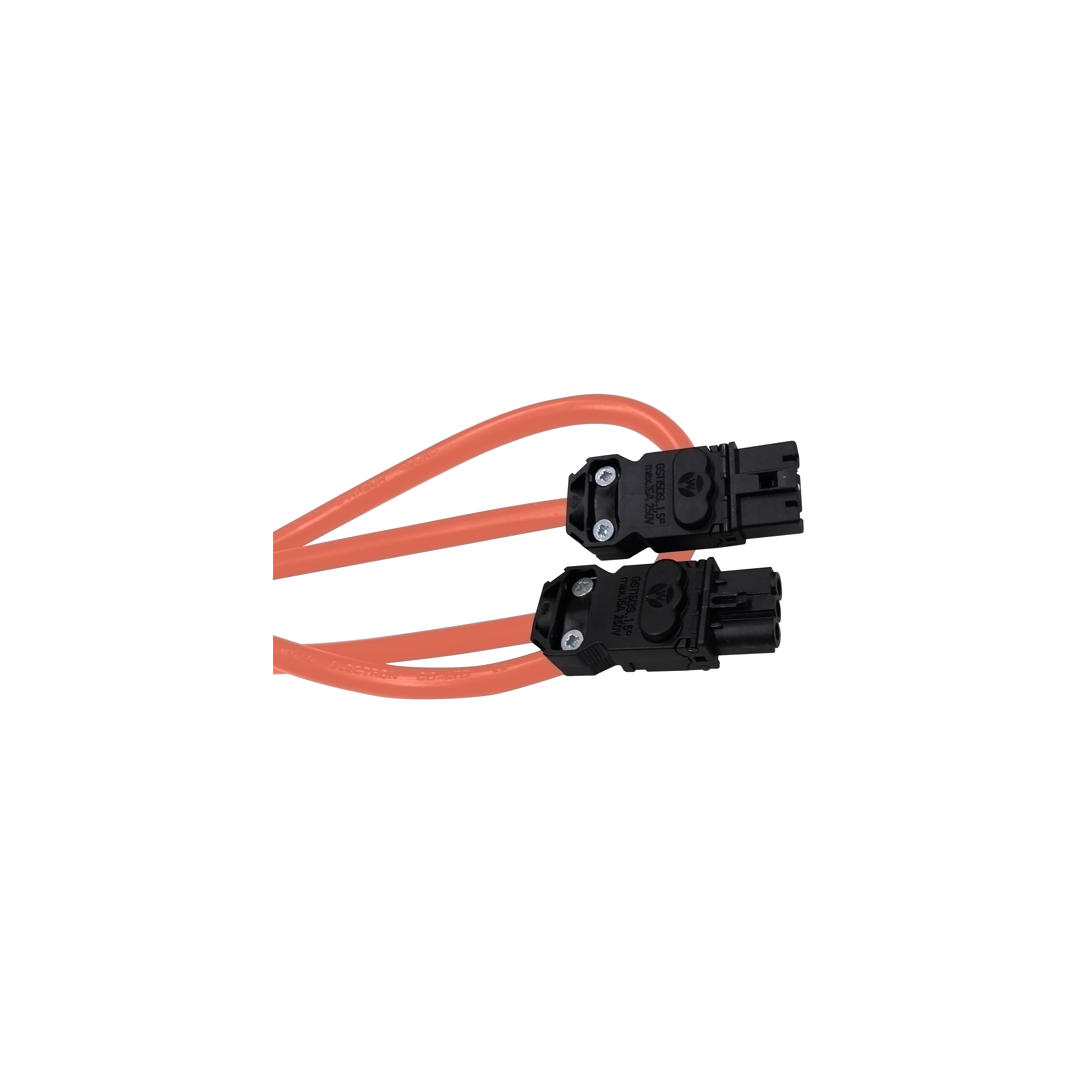

Pomarańczowy kabel zasilający, PanelSeT, lampa LED
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | NSYLAM3MN |
GTIN(EAN) | 3606489550868 |
Price unit | piece |
Catalog price | 352,48 zł (286,57 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 336 g |
ETIM class: | Power cable < 1 kV, for moving application |
Conductor material: | Copper |
Screen over stranding element: | None |
Outer diameter approx.: | 3 mm |
Screen over stranding: | None |
Material outer sheath: | Polyvinyl chloride (PVC) |
Nominal cross section conductor (AWG): | 10 kcmil |
AWG size: | 16 |
Conductor category: | Class 5 = flexible |
Nominal voltage U: | 500 V |
Stranding element: | No |
Colour outer sheath: | Orange |
Shape of conductor: | Round |
Min. permitted bending radius, stationary application/permanent installation: | 45 mm |
Min. permitted bending radius, moving application with forced guidance: | 180 mm |
Min. permitted bending radius, moving application/free movement: | 90 mm |
Specification core insulation: | Other |
Specification material outer sheath: | Other |
Permitted cable outer temperature during assembling/handling: | -16 - 65 °C |
Permitted cable outer temperature after assembling without vibration: | -10 - 60 °C |
Torsion resistant: | yes |
Cable geometry: | Round |
Nominal voltage U0: | 300 V |
Number of cores: | 3 |
Core identification: | Colour |
Suspension element: | None |
Nominal cross section conductor: | 1.5 mm² |
Material core insulation: | Polyvinyl chloride (PVC) |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d0 |
Reaction-to-fire according to EN 13501-6: Class: | None |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Conductor surface: | Bare |
Cable height approx.: | 0.7 mm |
Cable width approx.: | 8 mm |
Weight: | 0.352 kg/km |
Oil resistant according to EN IEC 60811-404: | yes |
Low temperature resistant according to EN 60811-504+505+506: | yes |
With protective conductor: | yes |
Halogen free according to EN 60754-1/2: | yes |
Low smoke (according to EN 61034-2): | no |
Flame retardant: | No |
