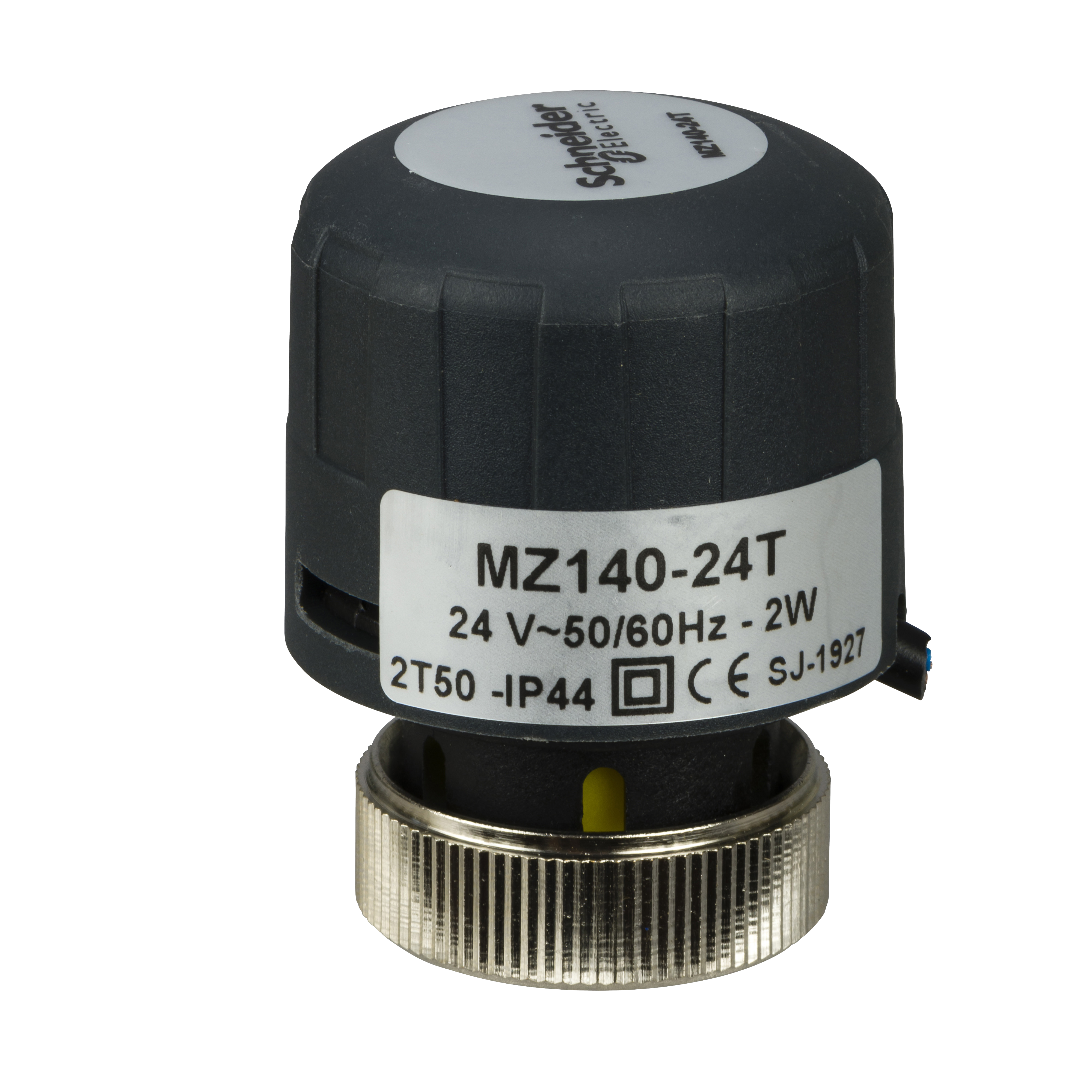

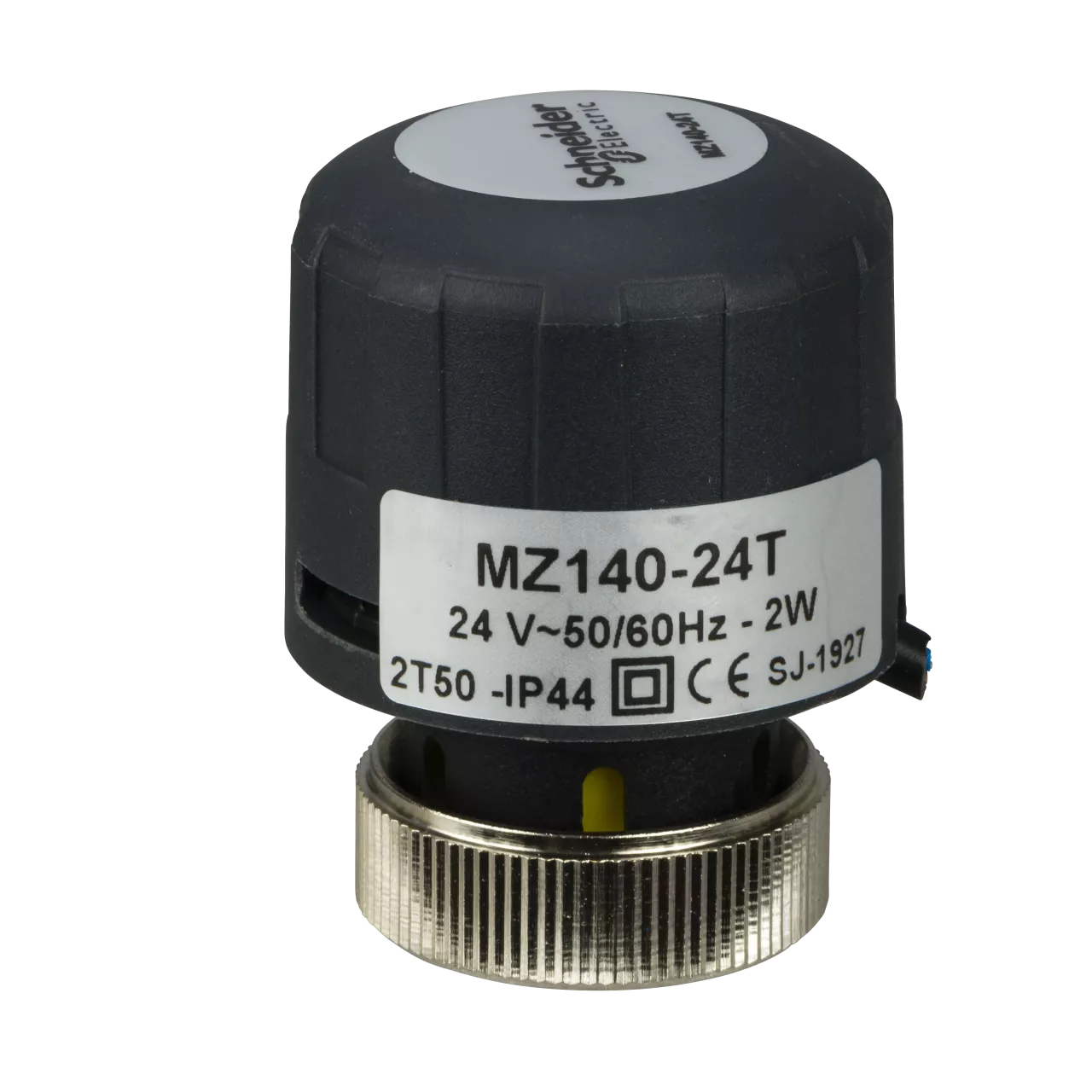

MZ140, siłownik zaworu, elektrotermiczny, 140 N, sterowanie on/off, zasilanie 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MZ140-24T |
| GTIN(EAN) | 3606489660505 |
| Price unit | piece |
| Catalog price | 356,70 zł (290,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MZ140-T to siłownik termoelektryczny zaprojektowany do sterowania dwoma pozycjami wł./wył. wraz z zaworami strefy VZ*08*. Siłownik bez zasilania jest wycofywany, aby zapewnić zamknięcie zaworu strefy. Przy włączonym zasilaniu trzpień siłownika jest wydłużany w celu otwarcia zaworu. Kompaktowa konstrukcja zapewnia niewielką powierzchnię. Zasilanie 24 Vac. Siła trzonka 140N. Klasa ochrony IP44 do montażu pionowego. Maks. skok 4 mm. EMC 24/18/CE, LVD 26/95/CE.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 180 g |
| ETIM class: | Thermal servomotor |
| Auxiliary contacts: | no |
| Cable length: | 1.5 m |
| With end contacts: | no |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP44 |
| Automatic stroke recognition: | no |
| Protected against overvoltage: | no |
| Colour: | Black |
| Width: | 98 mm |
| Model: | Other |
| Connection to stop valve: | M30 x 1.5 |
| With position indicator: | no |
| Suitable for manual operation: | no |
| Control signal: | Two-point |
| Ambient temperature: | 2 - 50 °C |
| Nominal power: | 2 VA |
| Height: | 53 mm |
| First open: | no |
| Stroke length: | 4 mm |
| Operating time: | 350 s |
| Length: | 130 mm |
| Function: | Deactivated when closed NC |
| Diameter: | 42 mm |
| Supply voltage: | 24 V AC |
