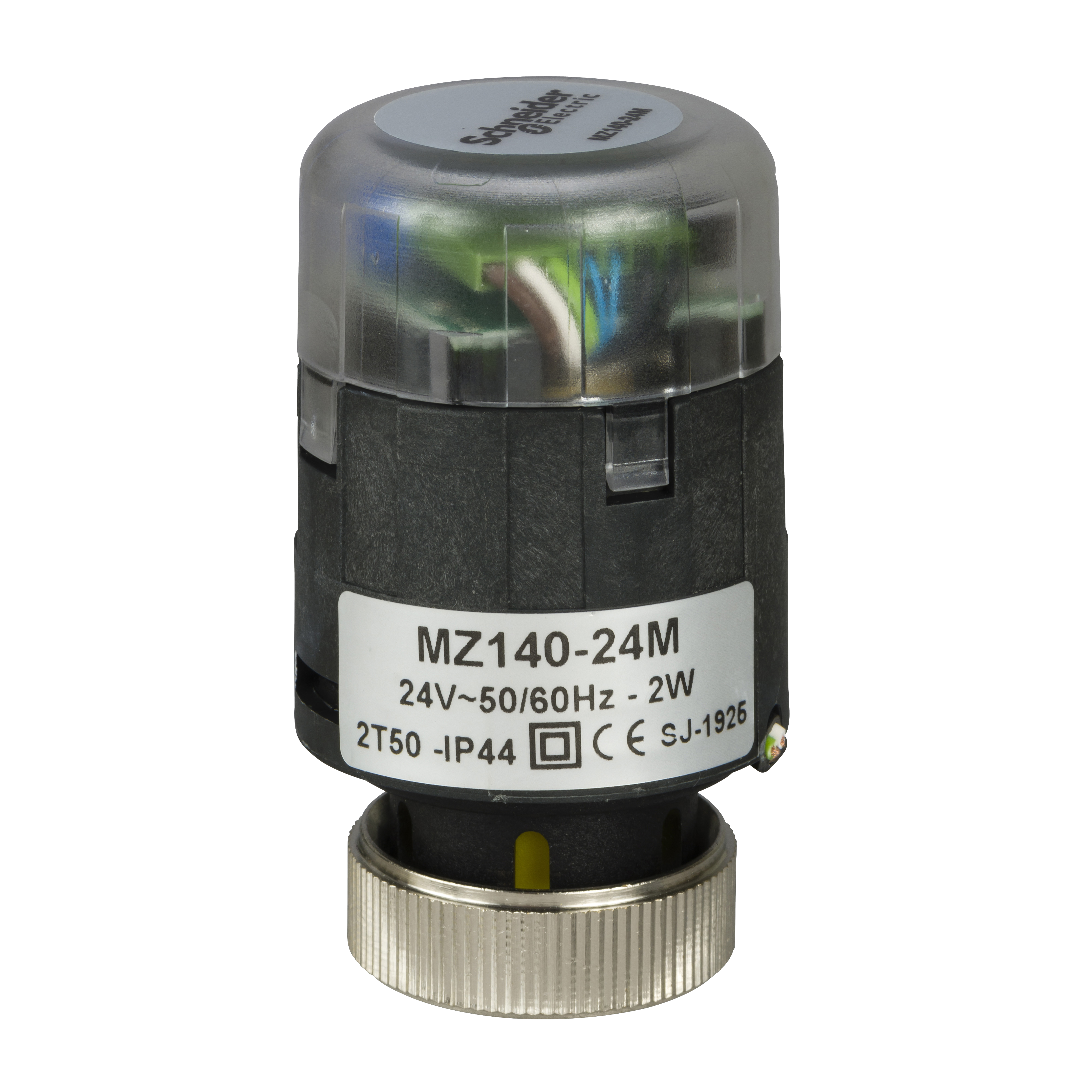

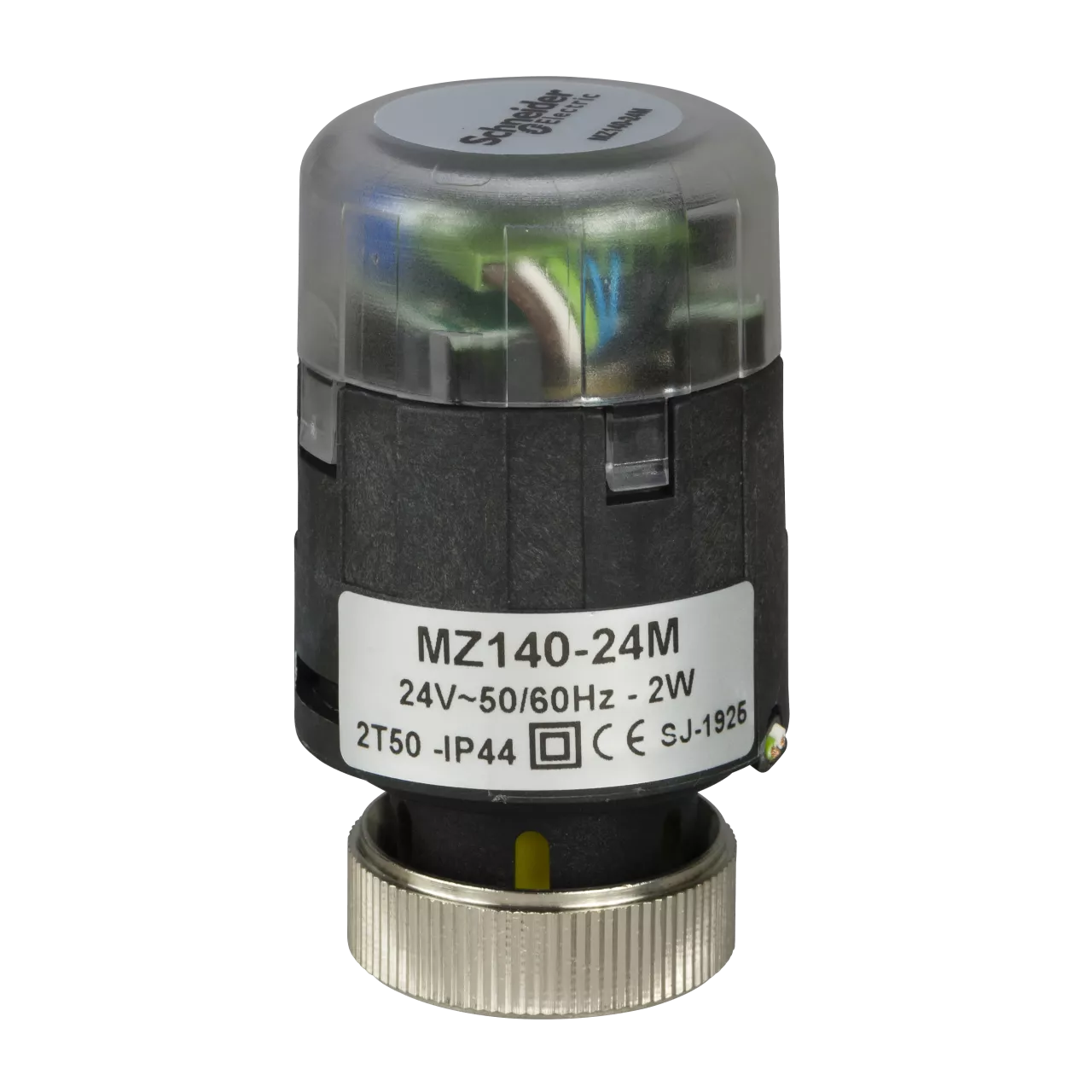

MZ140, siłownik zaworu, elektrotermiczny, 140 N, sterowanie 0-10V, zasilanie 24 VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MZ140-24M |
| GTIN(EAN) | 3606489660499 |
| Price unit | piece |
| Catalog price | 854,85 zł (695,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MZ140-24M to siłownik termoelektryczny zaprojektowany do sterowania modulacją wraz z zaworem strefy VZ*08*. Siłownik MZ140-24M przy wyłączaniu zasilania lub sygnale sterującym Vdc zapewnia zamknięcie zaworu strefy VZ*08*. Przy sygnale sterującym 10 Vdc siłownik całkowicie otworzy zawór. Przy sygnale sterującym 1 Vdc siłownik całkowicie otworzy zawory. Znamionowe Zasilanie 21,8...26,8 Vac. Siła trzonka 140N. Klasa ochrony IP44 do montażu pionowego, IP141 do montażu poziomego. Skok 2,5 mm. EMC 244/18/CE, LVD 266/95/CE.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 220 g |
| ETIM class: | Thermal servomotor |
| Auxiliary contacts: | yes |
| Cable length: | 1.5 m |
| With end contacts: | yes |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP44 |
| Automatic stroke recognition: | no |
| Protected against overvoltage: | no |
| Colour: | Black |
| Width: | 98 mm |
| Model: | Other |
| Connection to stop valve: | M30 x 1.5 |
| With position indicator: | no |
| Suitable for manual operation: | no |
| Control signal: | Other |
| Ambient temperature: | 2 - 50 °C |
| Nominal power: | 2 VA |
| Height: | 54 mm |
| First open: | no |
| Stroke length: | 2.5 mm |
| Operating time: | 360 s |
| Length: | 128 mm |
| Function: | Deactivated when closed NC |
| Diameter: | 42 mm |
| Supply voltage: | 24 V AC |
