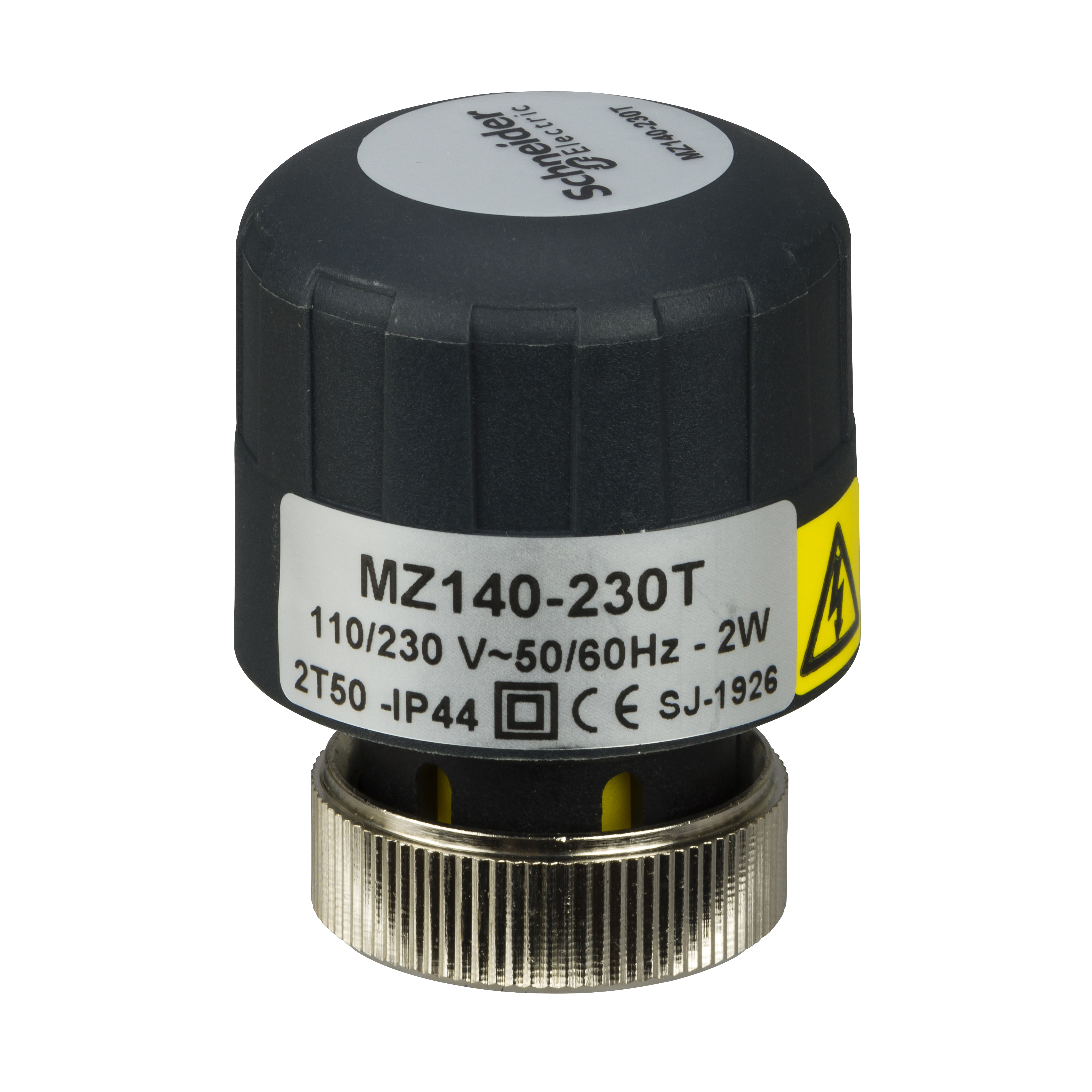

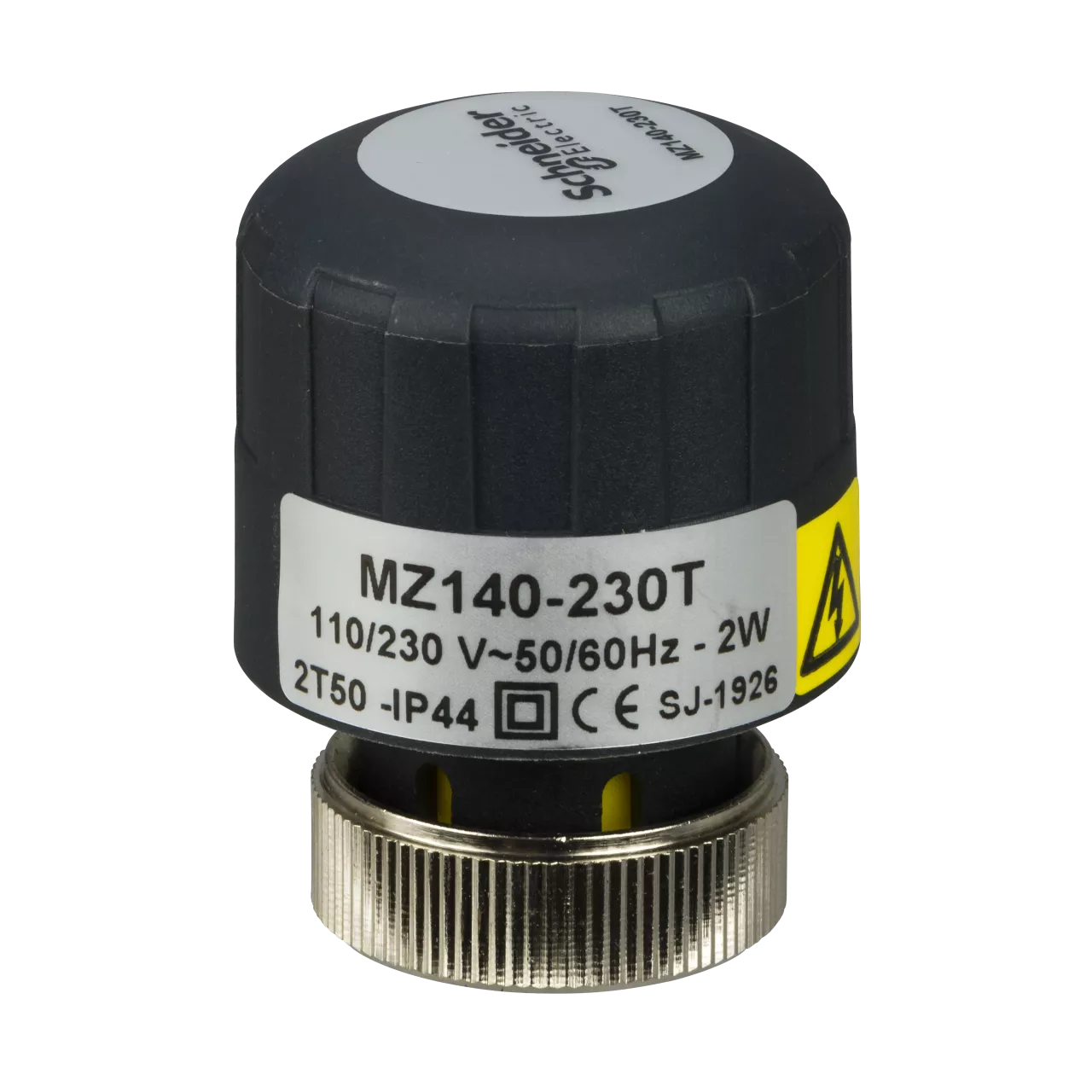

MZ140, siłownik zaworu, elektrotermiczny, 140 N, sterowanie on/off, zasilanie 230 VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | MZ140-230T |
GTIN(EAN) | 3606489660482 |
Price unit | piece |
Catalog price | 356,70 zł (290,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MZ140-T to siłownik termoelektryczny zaprojektowany do sterowania dwoma pozycjami wł./wył. wraz z zaworami strefy VZ*08*. Siłownik bez zasilania jest wycofywany, aby zapewnić zamknięcie zaworu strefy. Przy włączonym zasilaniu trzpień siłownika jest wydłużany w celu otwarcia zaworu. Kompaktowa konstrukcja zapewnia niewielką powierzchnię. Zasilanie 110-230 Vac. Siła trzonka 140N. Klasa ochrony IP44 do montażu pionowego. Maks. skok 4 mm. EMC 24/18/CE, LVD 26/95/CE.
Additional features:
Information | Value |
---|---|
Gross weight: | 180 g |
ETIM class: | Thermal servomotor |
Auxiliary contacts: | no |
Cable length: | 1.5 m |
With end contacts: | no |
Self-adjusting travel length: | no |
Degree of protection (IP): | IP44 |
Automatic stroke recognition: | no |
Protected against overvoltage: | no |
Colour: | Black |
Width: | 98 mm |
Model: | Other |
Connection to stop valve: | M30 x 1.5 |
With position indicator: | no |
Suitable for manual operation: | no |
Control signal: | Two-point |
Ambient temperature: | 2 - 50 °C |
Nominal power: | 2 VA |
Height: | 53 mm |
First open: | no |
Stroke length: | 4 mm |
Operating time: | 230 s |
Length: | 129 mm |
Function: | Deactivated when closed NC |
Diameter: | 42 mm |
Supply voltage: | 230 V AC |
