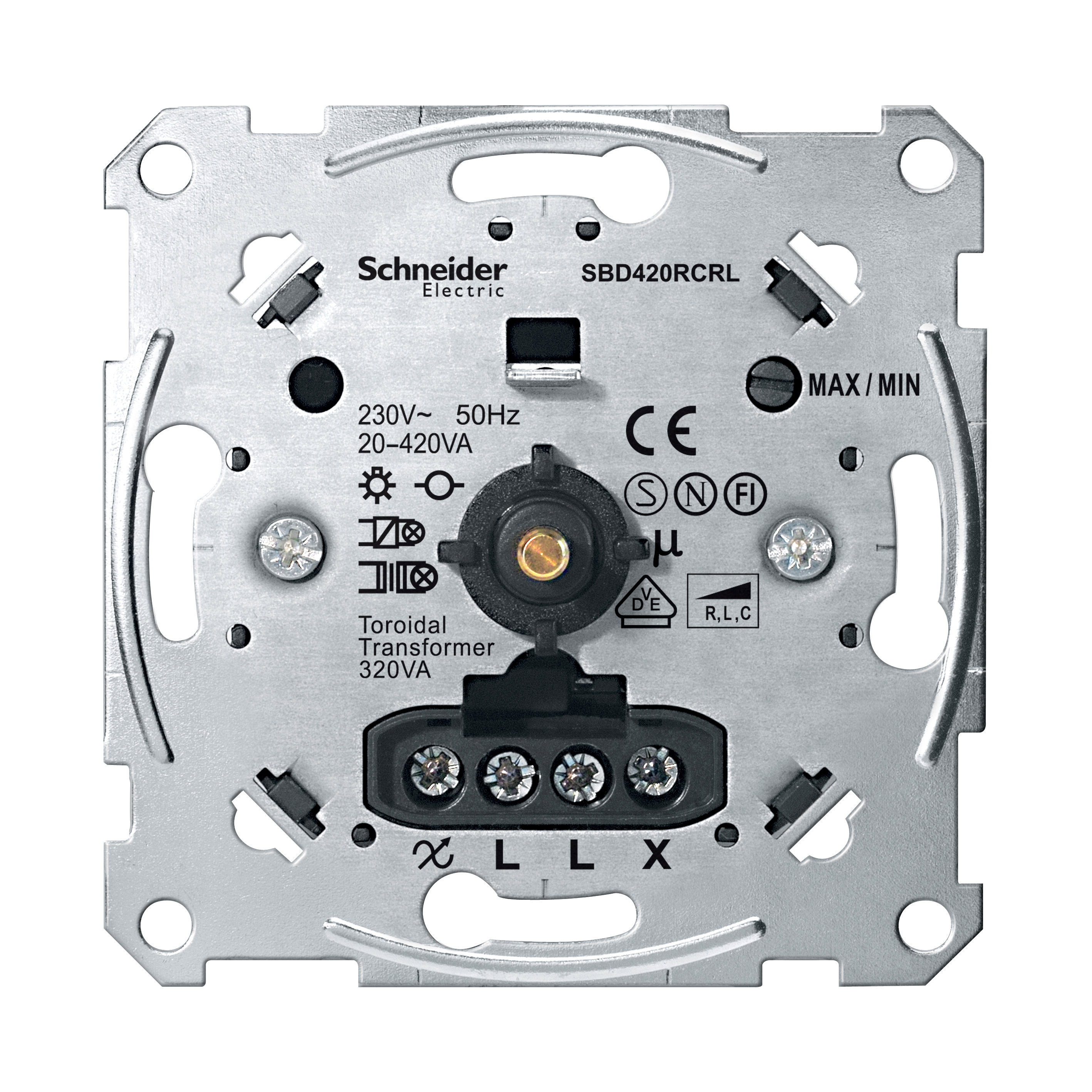

Merten, mechanizm ściemniacza obrotowego RL, RC 230V AC 20-420VA
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MTN5138-0000 |
| GTIN(EAN) | 3606480298073 |
| Price unit | piece |
| Catalog price | 850,18 zł (691,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Merten, mechanizm ściemniacza obrotowego RL, RC 230V AC 20-420VA, to osprzęt serii Merten marki Schneider Electric. Mechanizm ściemniacza obrotowego charakteryzuje się stopniem ochrony IP20. Do produkcji elementu wykorzystano metal i plastik. Produkt jest montowany podt ynkowo i posiada następujące wymiary: szerokość 71 mm, wysokość 71 mm, głębokość zagnieżdżenia 29 mm. Mechanizm łączy się z płytką centralną ściemniacza obrotowego.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 55 |
| Gross weight: | 108 g |
| ETIM class: | Dimmer |
| IFTTT support available: | no |
| Dimming phase cut-on: | yes |
| Dimming phase cut-off: | yes |
| Serial dimmer: | no |
| Frequency: | 50 - 50 Hz |
| Type of load: | Universal |
| Type of fastening: | Mounting with claw and screw |
| Nominal power capacitive load: | 20 - 420 VA |
| Halogen free: | yes |
| Nominal power inductive load: | 20 - 420 VA |
| Nominal power resistive load: | 20 - 420 W |
| Transparent: | no |
| Core cross section: | 1.5 - 2.5 mm² |
| Assembly arrangement: | Basic element |
| Applicable with time switch/timer: | no |
| Device height: | 71 mm |
| Method of operation: | Turn/push button |
| Applicable with button: | no |
| Min. depth of built-in installation box: | 40 mm |
| Device width: | 71 mm |
| Device depth: | 60 mm |
| Suitable for degree of protection (IP): | IP20 |
| Impact strength: | IK01 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Applicable with infrared button: | no |
| Applicable with transmission button: | no |
| Applicable with presence indicator: | no |
| Light value memory: | no |
| Applicable with movement sensor: | no |
| App control via Bluetooth: | no |
| Connection type: | Screwed terminal |
| Substation input: | no |
| Mounting method: | Flush-mounted |
| Nominal voltage: | 230 - 230 V |
| Material: | Other |
| Material quality: | Other |
