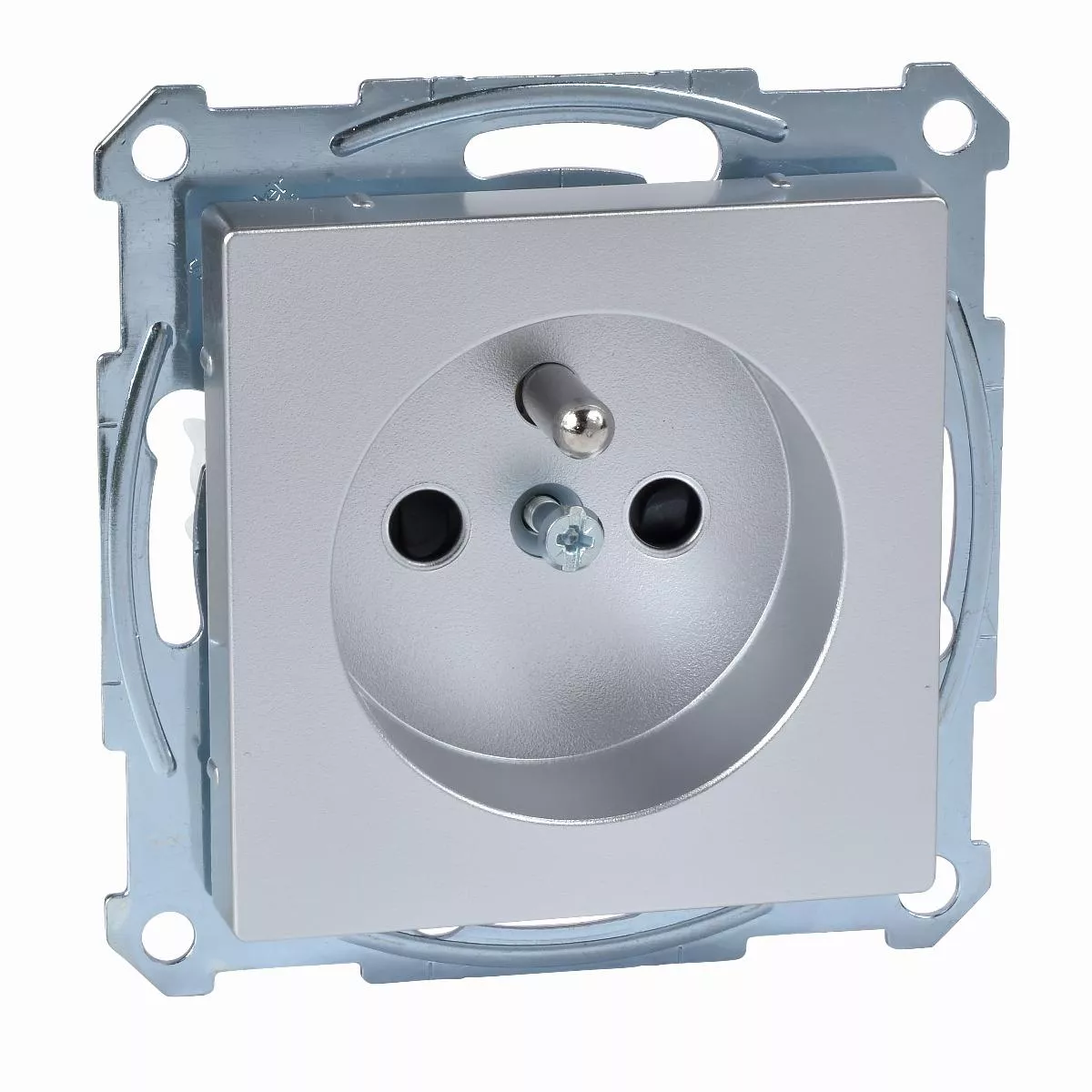

Gniazdo wtykowe z uziemieniem i przesłoną, b.śrub., alu, Sys M
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MTN2500-0460 |
| GTIN(EAN) | 3606480306006 |
| Price unit | piece |
| Catalog price | 84,62 zł (68,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Merten, System M, gniazdo wtykowe z uziemieniem i przesłoną torów prądowych, zaciski bezśrubowe, aluminium, to osprzęt serii Merten marki Schneider El ectric. Gniazdo wtykowego ma matowe wykończenie powierzchni w kolorze aluminium. Gniazdo charakteryzuje się stopniem ochrony IP 20, prądem 16A / 250VAC. Do produkcji gniazda wykorzystano tworzywo termoplastyczne o zwiększonej odporności na promieniowanie UV. Produkt jest montowany podtynkowo i posiada zaciski bezśrubowe. Sposób montowania przez wkręty i szczypce.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 5 |
| Gross weight: | 76 g |
| ETIM class: | Socket outlet |
| Surface protection: | Lacquered |
| Frequency: | 50 - 50 Hz |
| Type of fastening: | Mounting with claw and screw |
| Material: | Plastic |
| Halogen free: | yes |
| With enhanced contact protection: | yes |
| Transparent: | no |
| Device height: | 71 mm |
| Colour: | Aluminium |
| Device width: | 71 mm |
| Number of socket outlets switchable: | 0 |
| Device depth: | 37 mm |
| Insulated mounting: | yes |
| Suitable for degree of protection (IP): | IP20 |
| Impact strength: | IK03 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Anti-bacterial treatment: | no |
| Compatible with Amazon Alexa: | no |
| With hinged lid: | no |
| Rotated central insert: | no |
| Nominal current: | 16 A |
| Over voltage protection: | no |
| Nominal voltage: | 250 V |
| Fault current protection: | no |
| Special power supply: | No special power supply |
| Mounting method: | Flush-mounted |
| Connection type: | Push-in clamp |
| With on/off switch: | no |
| Eject-mechanism: | no |
| Number of modules (module system): | 0 |
| Number of units: | 1 |
| Number of phases: | 1 |
| Number of active contacts (flat): | 0 |
| With signal lamp: | no |
| Number of active contacts (round): | 1 |
| Lockable: | no |
| With miniature fuse: | no |
| IFTTT support available: | no |
| With loop through function: | yes |
| Label space/information surface: | no |
| Surface finishing: | Matt |
| With function lighting: | no |
| With orientation lighting: | no |
| Min. depth of built-in installation box: | 40 mm |
| Metallic colour: | no |
| Rated fault current: | 0 mA |
| Material quality: | Thermoplastic |
| For heavy conditions according to VDE: | no |
| Model: | Earthing pin |
| Imprint/indication: | None |
| With built-in USB power supply: | no |
| Protective contact: | yes |
| Protective earth pin round: | yes |
