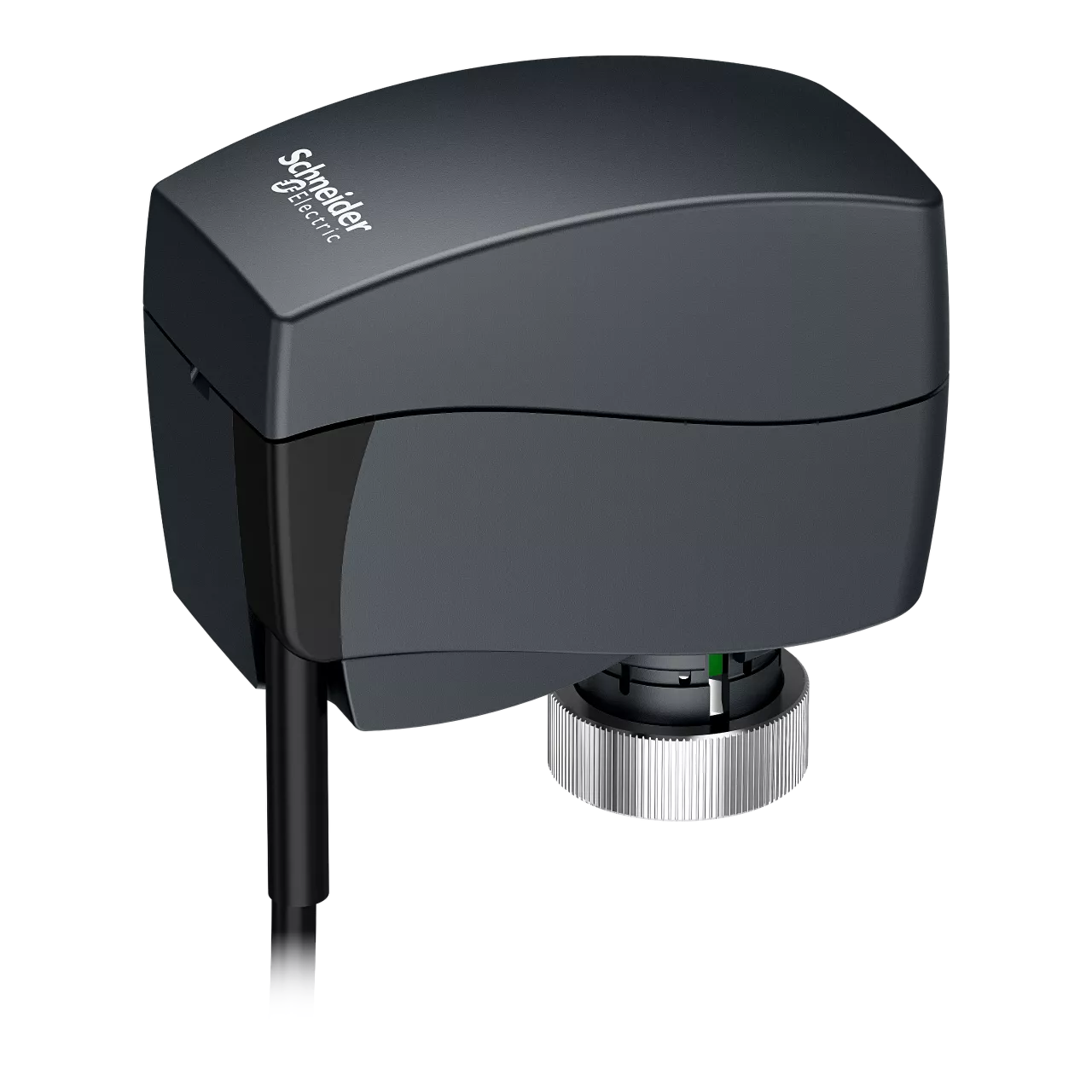

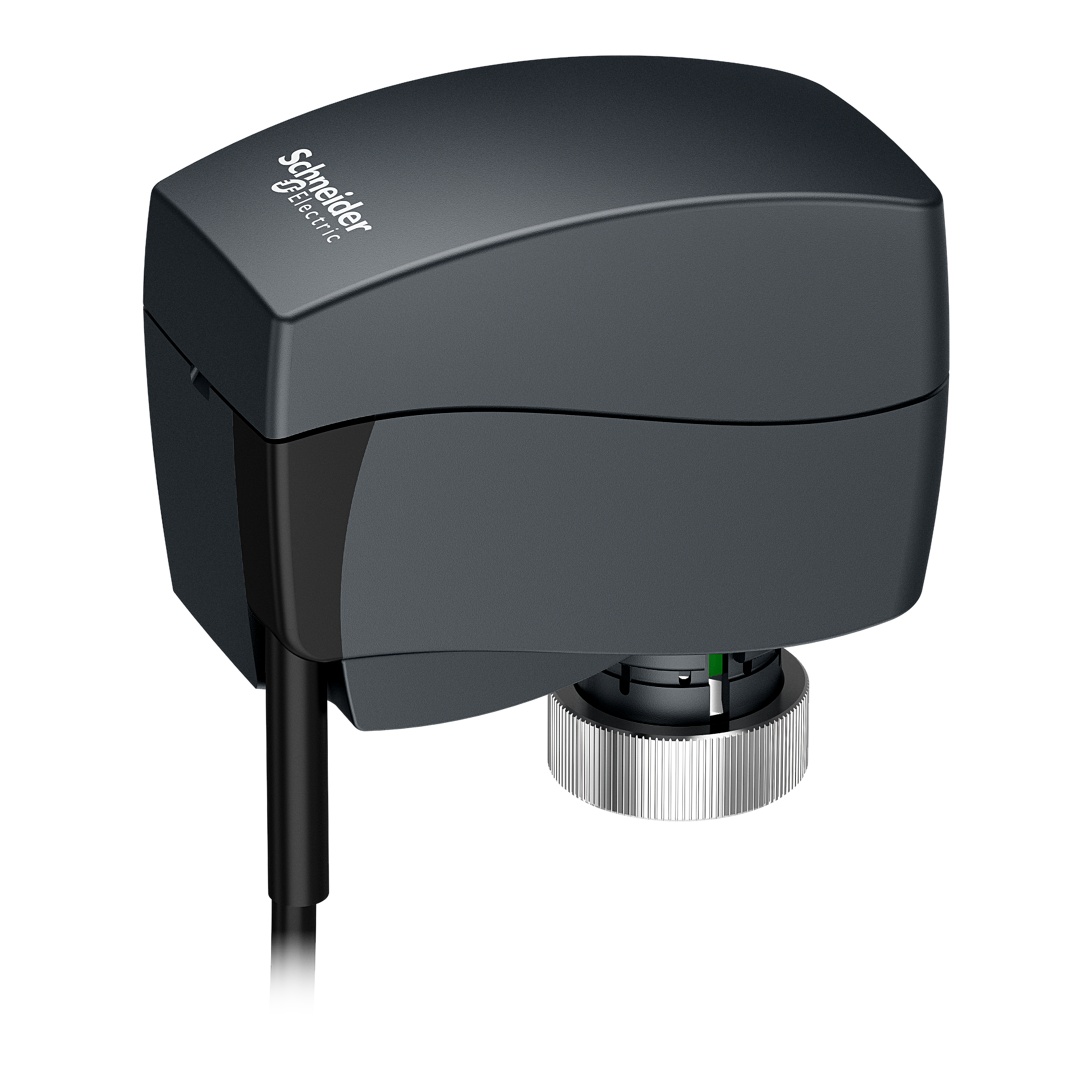

MP130, siłownik zaworu, 130 N, sterowanie 0-10V/4-20mA, zasilanie 24 VAC, sygnał zwrotny, kabel 1,5 m
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MP130-24MP |
| GTIN(EAN) | 7332552014154 |
| Price unit | piece |
| Catalog price | 1 045,50 zł (850,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MP130-24M to siłowniki proporcjonalne do automatycznych zaworów równoważących i sterujących PIBCV Spacelogic (DN10-32). Ten siłownik jest używany z wężownicami wentylatorowymi, urządzeniami indukcyjnymi, małymi grzałkami, chłodnicami i instalacjami strefowymi, w których czynnikiem kontrolowanym jest woda gorąca/zimna. Wykrywanie szczelin w pozycji górnej trzpienia, sterowanie modulacyjne, wyłączanie siły w pozycji dolnej trzpienia zapobiega przeciążeniu siłownika i zaworu. Bezobsługowy czas eksploatacji. Zasilanie 24 Vac +10%...-15%. Zamknięcie siły: 130 N. Kod ochrony IP42, III klasa bezpieczeństwa dla zabezpieczeń nadnapięciowych. Maks. Skok 5 mm. LVD: 26/95/WE.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 365 g |
| ETIM class: | Electric servomotor |
| Transmission: | Magnetic |
| Auxiliary contacts: | no |
| Explosion-proof: | no |
| Housing material: | Other |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 130 N |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP42 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Energy consumption in operation: | 0.4 W |
| Allowable relative humidity: | 0 - 80 % |
| Principle of operation safety function: | Other |
| Suitable for air accessory: | yes |
| Type of safety function: | Other |
| Automatic stroke recognition: | no |
| With safety function: | yes |
| Depth: | 50 mm |
| Connection cable length: | 1.5 m |
| Width: | 121 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Linear |
| Deactivated when closed: | no |
| Max. electric power input: | 1.5 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | no |
| Suitable for manual operation: | no |
| Control signal: | Other |
| Potential free switch contact: | no |
| Ambient temperature: | 0 - 55 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | no |
| Height: | 55 mm |
| Stroke length: | 5 mm |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 3 |
