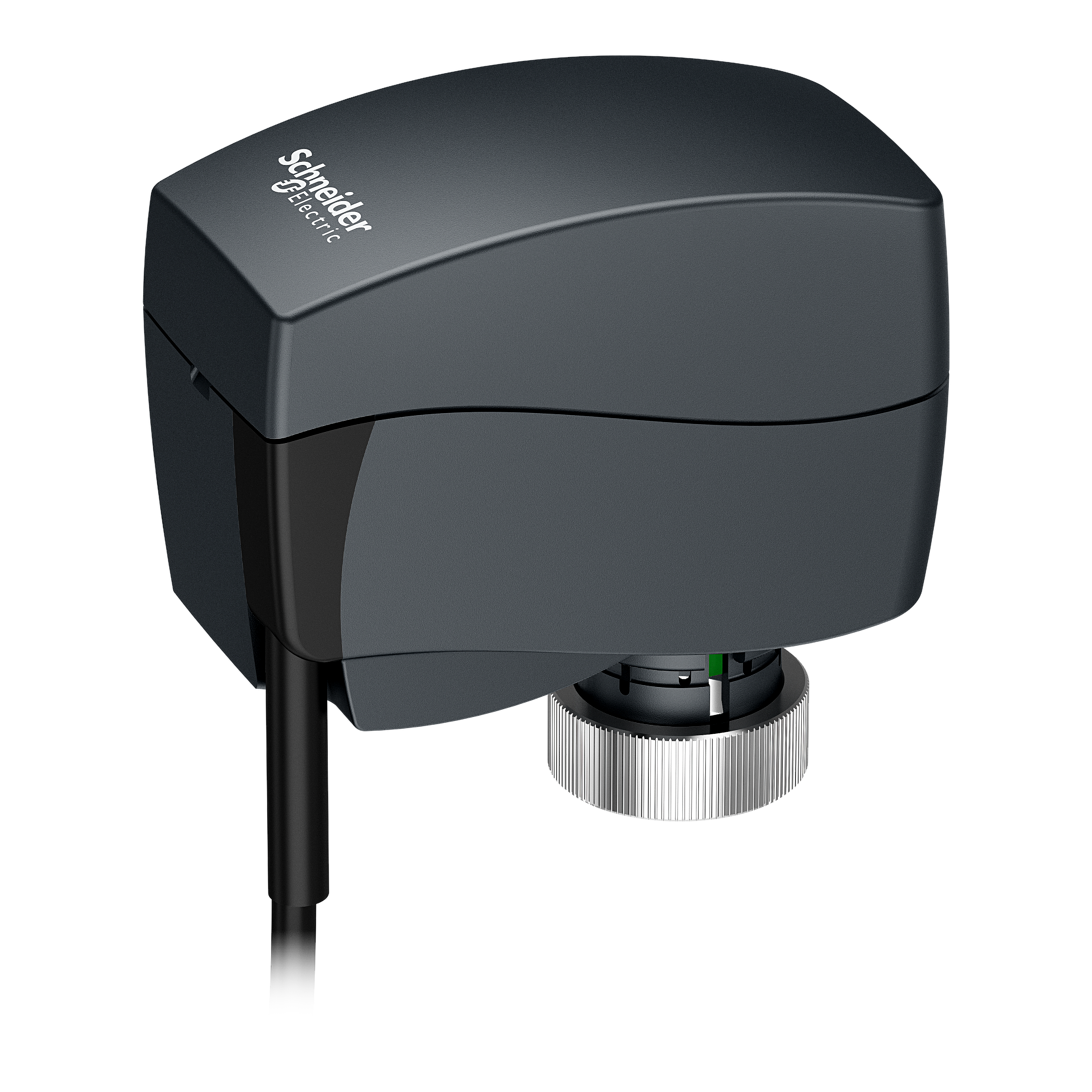

MP130, siłownik zaworu, 130 N, sterowanie 3-punktowe, zasilanie 24 VAC, długość kabla 1,5 m
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MP130-24F |
| GTIN(EAN) | 7332552014109 |
| Price unit | piece |
| Catalog price | 811,80 zł (660,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MP130-24F to 3-żyłowe siłowniki pływakowe stosowane razem z zaworami PIBCV (DN1...32) do automatycznego równoważenia i sterowania Spacelogic. Typowe zastosowania obejmują sterowanie temperaturą w zaciskach (wężownicach wentylatorowych, sufitach lodowych) i małych centralach wentylacyjnych. Wykrywanie przerwy w położeniu górnym, wersja 3-punktowa, Wymuszenie wyłączenia w położeniu dolnym zapobiega przeciążeniu siłownika i zaworu. Bezobsługowy czas eksploatacji. Zasilanie 24 Vac +10%...-15%. Zamknięcie siły: 130 N. Kod ochrony IP42, III klasa bezpieczeństwa dla zabezpieczeń nadnapięciowych. Maks. Skok 5,5 mm. LVD: 26/95/WE.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 340 g |
| ETIM class: | Electric servomotor |
| Auxiliary contacts: | no |
| Explosion-proof: | no |
| Housing material: | Other |
| With top flange direct mount according to ISO 5211: | no |
| Adjusting force: | 130 N |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP42 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | no |
| Allowable relative humidity: | 0 - 80 % |
| Principle of operation safety function: | Other |
| Suitable for air accessory: | yes |
| Type of safety function: | Other |
| Automatic stroke recognition: | no |
| With safety function: | yes |
| Depth: | 50 mm |
| Connection cable length: | 1.5 m |
| Width: | 121 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Linear |
| Deactivated when closed: | no |
| Max. electric power input: | 1 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | no |
| Suitable for manual operation: | no |
| Control signal: | Other |
| Potential free switch contact: | no |
| Ambient temperature: | -40 - 70 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | no |
| Regulation type on/off: | no |
| Height: | 55 mm |
| Stroke length: | 5.5 mm |
| Position reporting system: | None |
| Supply voltage: | 24 V AC |
| Degree of protection (NEMA): | 3 |
