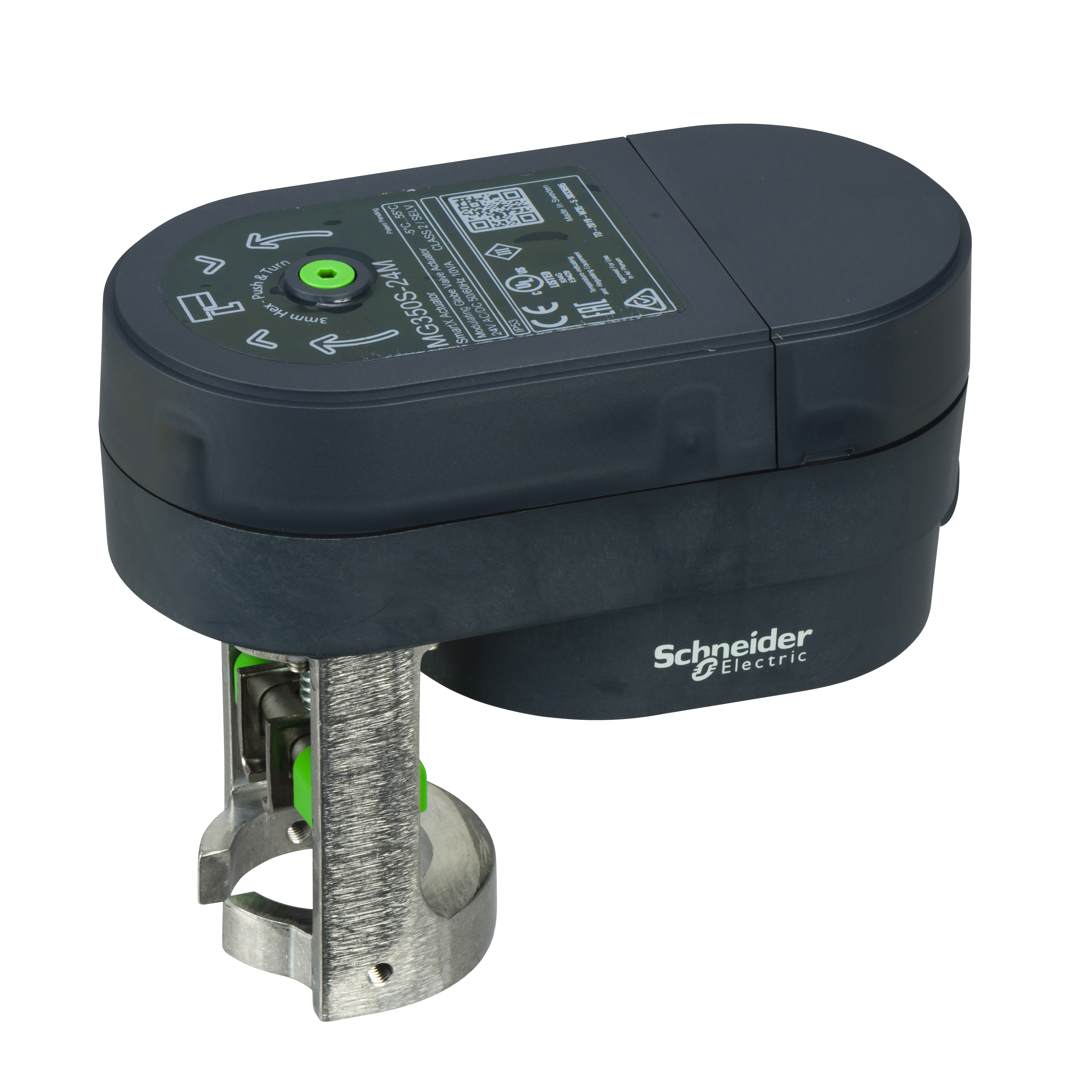

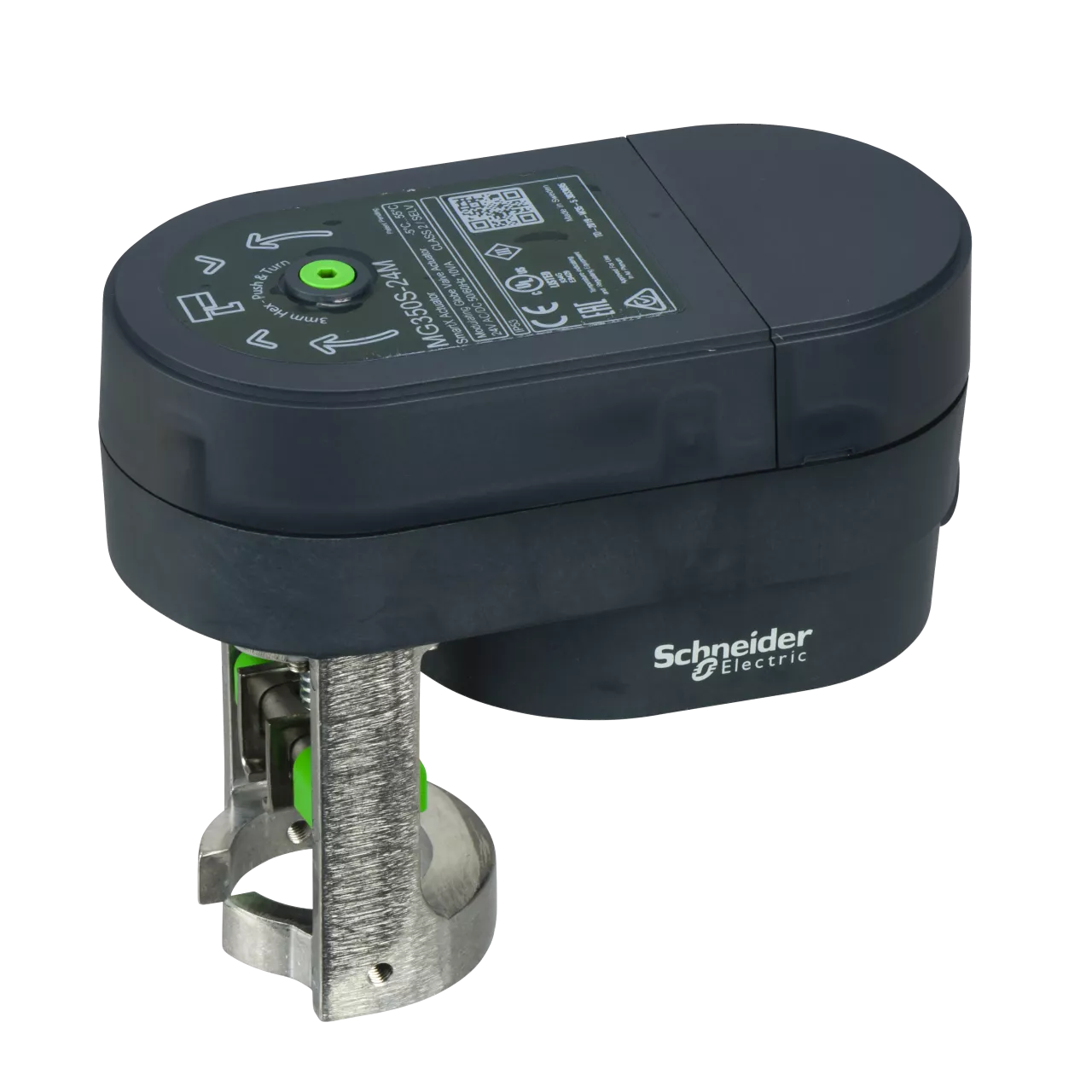

MG350S, siłownik zaworu, 350 N, sterowanie 0-10V, zasilanie 24 VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | MG350S-24M |
GTIN(EAN) | 7332552010934 |
Price unit | piece |
Catalog price | 2 214,00 zł (1 800,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Siłownik zaworu kulowego MG350S to bardzo kompaktowe, pozbawione sprężyny siłowniki elektromechaniczne na powrocie, służące do sterowania: Zawory kulowe VZX i MZX.
Additional features:
Information | Value |
---|---|
Gross weight: | 724,8 g |
ETIM class: | Electric servomotor |
Transmission: | Magnetic |
Auxiliary contacts: | no |
Explosion-proof: | no |
With top flange direct mount according to ISO 5211: | no |
Adjusting force: | 350 N |
Self-adjusting travel length: | no |
Degree of protection (IP): | IP53 |
End contacts: | None |
Auxiliary contacts optional: | no |
Adjustable operating range: | yes |
Energy consumption at rest: | 3 W |
Allowable relative humidity: | 5 - 95 % |
Suitable for air accessory: | no |
Automatic stroke recognition: | no |
With safety function: | no |
Suitable for valve: | yes |
With mechanical setting indicator: | no |
Model: | Linear |
Deactivated when closed: | no |
Max. electric power input: | 7.2 VA |
Connection to stop valve: | None |
Return at zero supply voltage: | no |
Adjustable position feedback signal: | yes |
Suitable for manual operation: | yes |
Control signal: | Other |
Potential free switch contact: | no |
Ambient temperature: | -5 - 55 °C |
Regulation type splitrange: | no |
Regulation type modulating: | yes |
Regulation type on/off: | no |
Stroke length: | 0.9375 mm |
Operating time: | 102 s |
Position reporting system: | None |
Supply voltage: | 24 V AC/DC |
Degree of protection (NEMA): | 3 |
