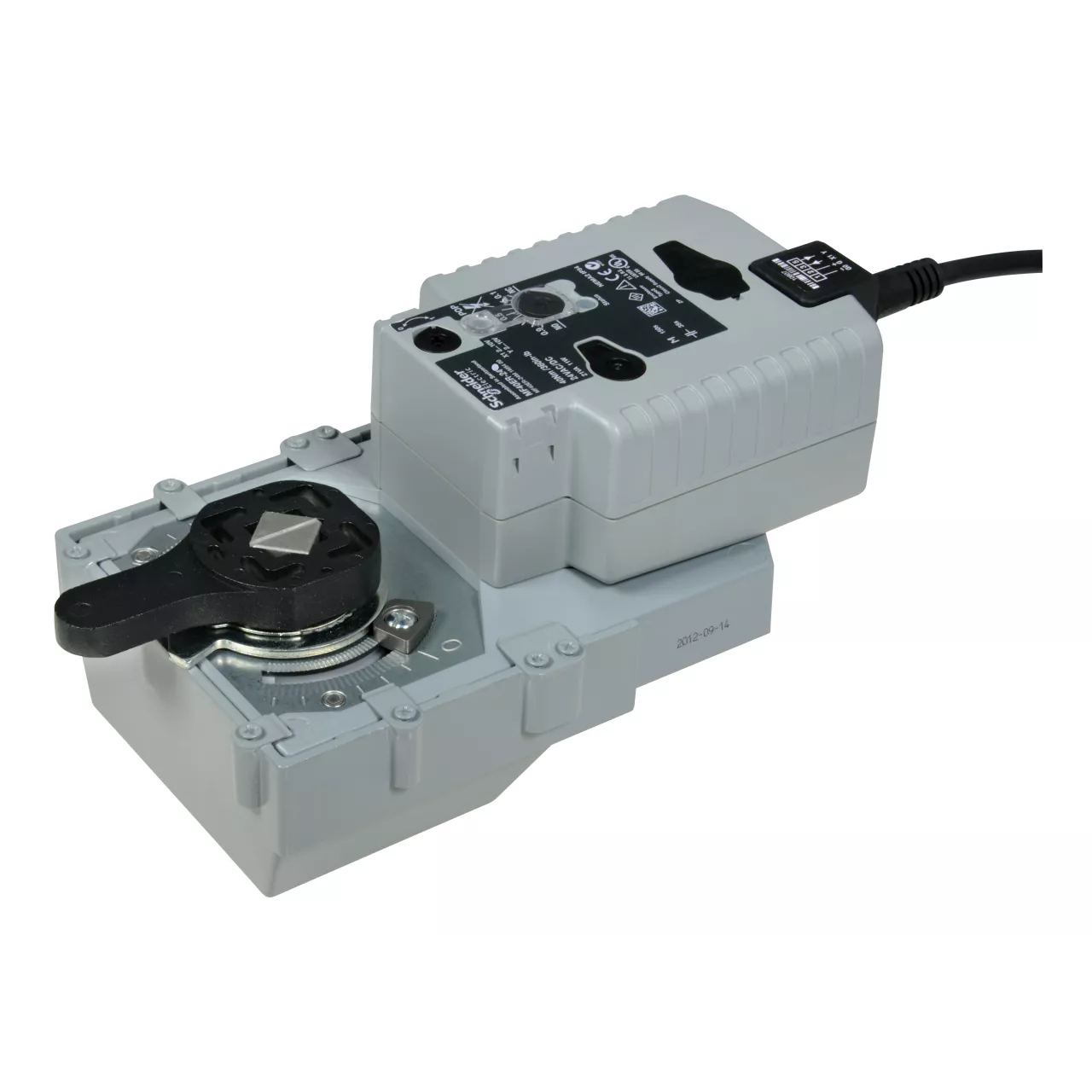

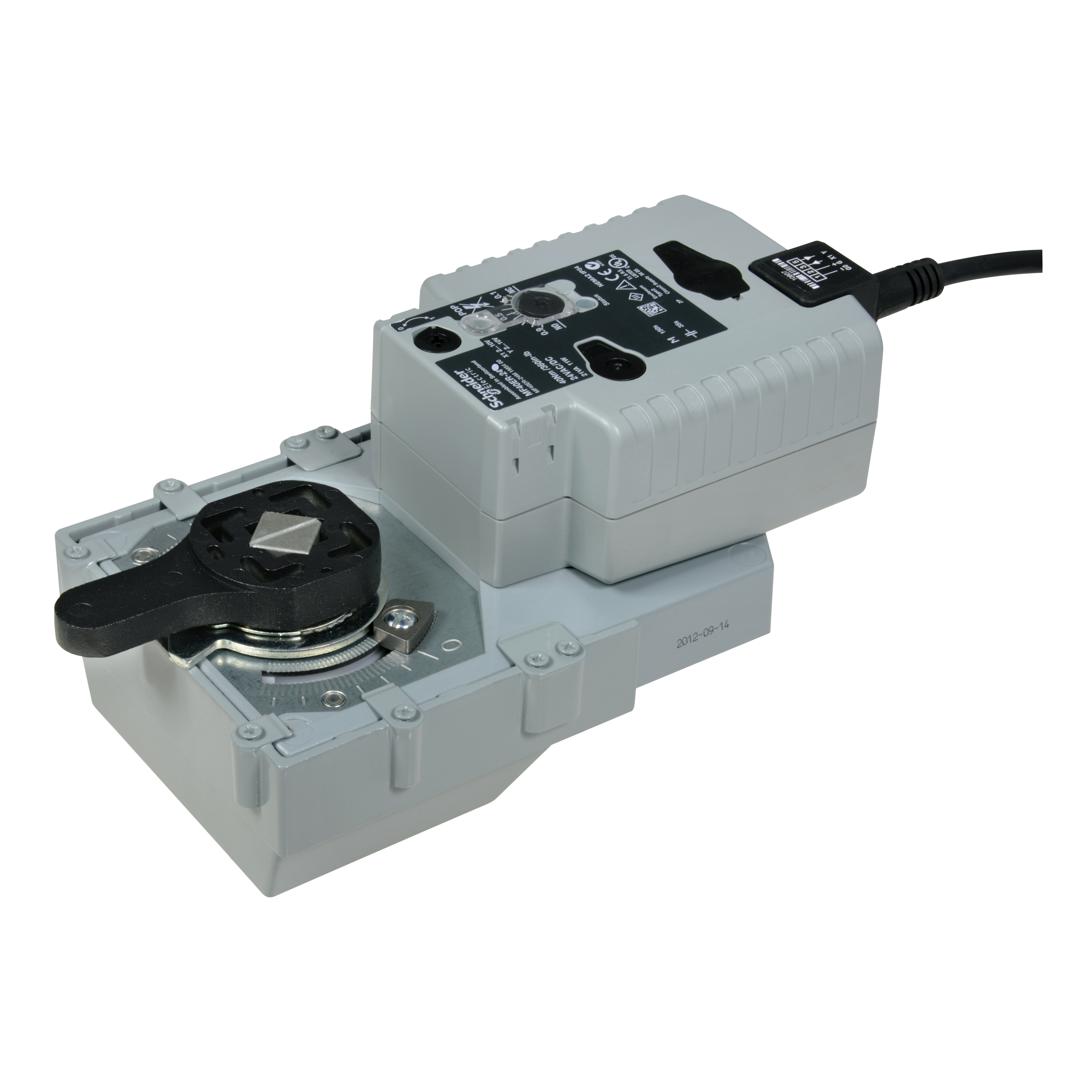

MF40ER, siłownik zaworu, elektronicznie zasilany powrót, 40 Nm, sterowanie on/off, zasilanie 24 VAC/DC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MF40ER-24T |
| GTIN(EAN) | 3606481538611 |
| Price unit | piece |
| Catalog price | 5 535,00 zł (4 500,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MF40 ER to solidny, niezawodny siłownik obrotowy do sterowania motylkowymi zaworami VF208W DN125-200. Siłowniki MF40 ER wykorzystują technologię superkondensatorów do powrotu zasilania w przypadku awarii zasilania. Dwupozycyjne, 24 Vac/dc, 2-10 Position Feedback, Long Life SuperCaps. Zabezpieczenie klasy III - zasilanie skrajnie niskiego napięcia / UL klasy 2. Stopień ochrony IP54, NEMA 2, obudowa UL typu 2. Znamionowy moment obrotowy: 40 Nm.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 2,8 kg |
| ETIM class: | Electric servomotor |
| Auxiliary contacts: | no |
| Explosion-proof: | no |
| Housing material: | Other |
| With top flange direct mount according to ISO 5211: | no |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP54 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Energy consumption at rest: | 3 W |
| Energy consumption in operation: | 11 W |
| Allowable relative humidity: | 0 - 95 % |
| Suitable for air accessory: | no |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Depth: | 235 mm |
| Connection cable length: | 3 m |
| Width: | 134 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | yes |
| Model: | Rotating |
| Deactivated when closed: | no |
| Max. electric power input: | 21 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | no |
| Suitable for manual operation: | yes |
| Control signal: | Two-point |
| Potential free switch contact: | no |
| Ambient temperature: | 0 - 50 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | no |
| Regulation type on/off: | no |
| Height: | 125 mm |
| Operating time: | 150 s |
| Position reporting system: | None |
| Torque: | 40 Nm |
| Supply voltage: | 24 V AC/DC |
| Degree of protection (NEMA): | 3 |
