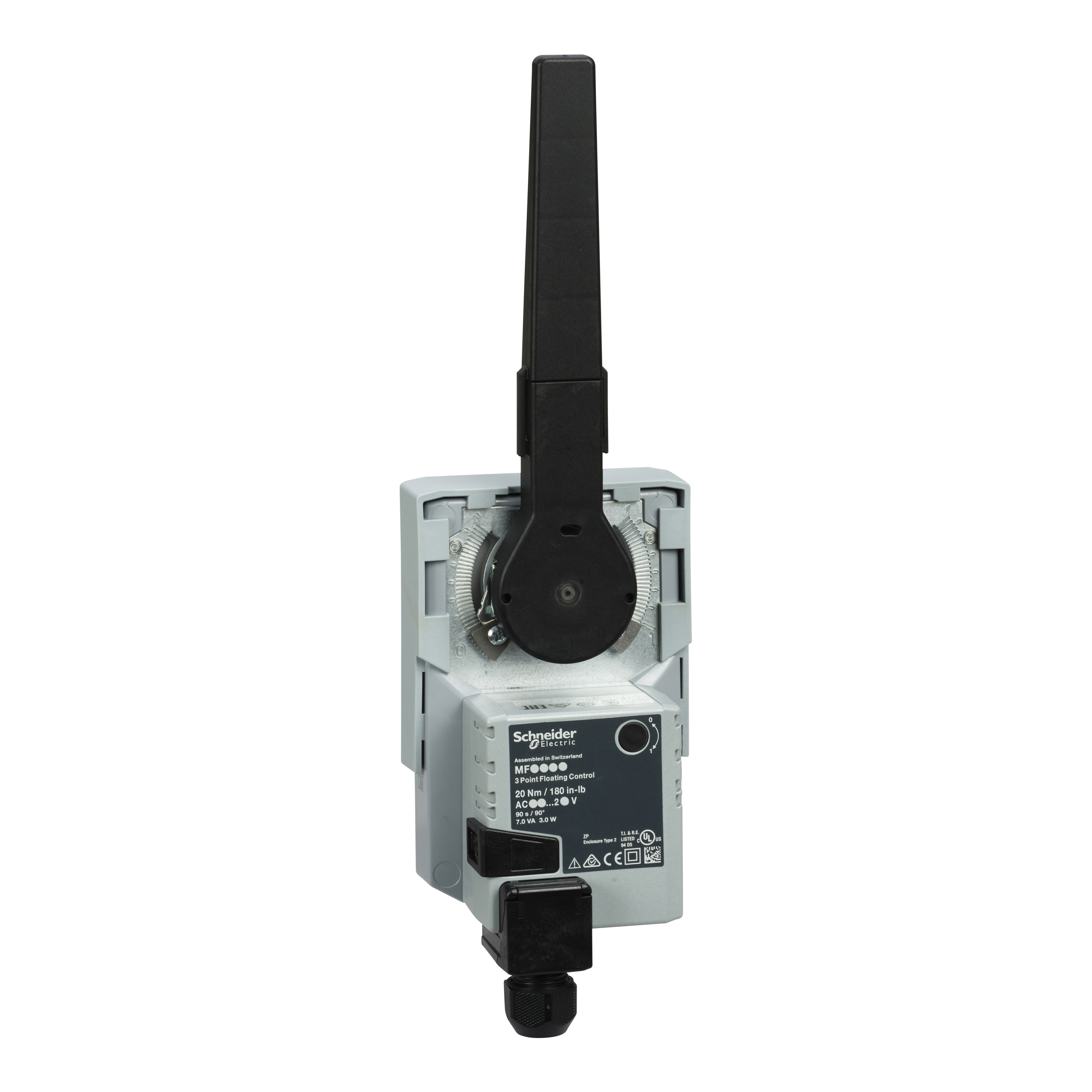

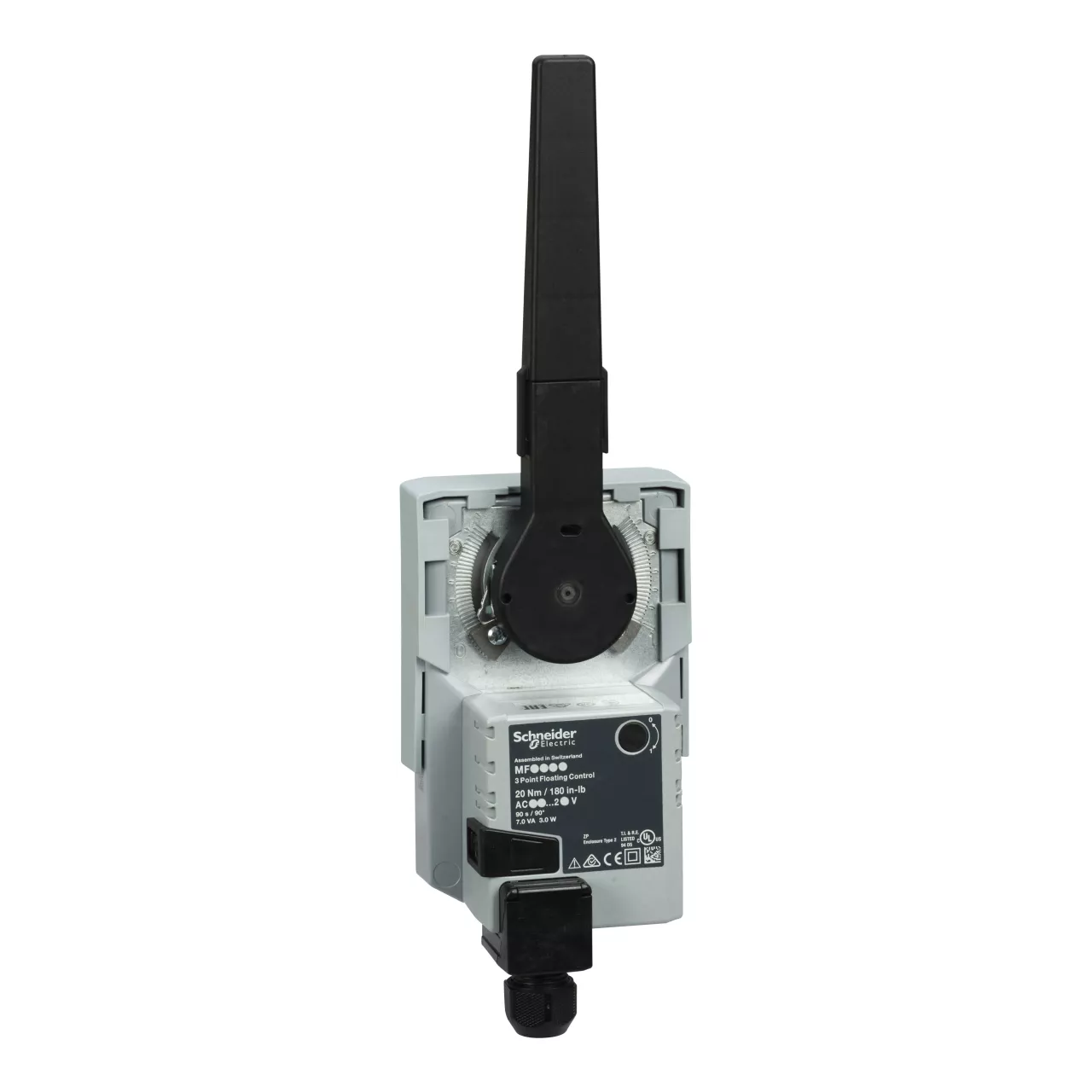

MF20, siłownik zaworu, 20 Nm, sterowanie on/off lub 3-punktowe, zasilanie 24 VAC/DC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MF20-24F |
| GTIN(EAN) | 3606489660352 |
| Price unit | piece |
| Catalog price | 2 091,00 zł (1 700,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MF20 to solidny i niezawodny siłownik do sterowania motylkowymi zaworami VF208W. Zawór bez zestawów połączeniowych można zamontować za pomocą siłownika, a następnie podłączyć za pomocą listew zaciskowych, co upraszcza i skraca czas instalacji. Przełącznik pomocniczy jest dostępny jako wyposażenie dodatkowe. Zasilanie 24 Vac/Vdc. Sygnał Sterowania On-Off/3P. Moment dokręcenia: 2 Nm. Odpowiedni dla DN25...1. Czas pracy: 9 s.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,3 kg |
| ETIM class: | Electric servomotor |
| Auxiliary contacts: | yes |
| Explosion-proof: | no |
| Housing material: | Other |
| With top flange direct mount according to ISO 5211: | no |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP54 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Energy consumption at rest: | 0.2 W |
| Energy consumption in operation: | 2.5 W |
| Allowable relative humidity: | 0 - 95 % |
| Suitable for air accessory: | no |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Depth: | 77 mm |
| Connection cable length: | 1 m |
| Width: | 195 mm |
| Suitable for valve: | yes |
| With mechanical setting indicator: | no |
| Model: | Rotating |
| Deactivated when closed: | no |
| Max. electric power input: | 5.5 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | no |
| Suitable for manual operation: | no |
| Control signal: | Three-point |
| Potential free switch contact: | no |
| Ambient temperature: | 0 - 50 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | no |
| Regulation type on/off: | yes |
| Height: | 148 mm |
| Operating time: | 90 s |
| Position reporting system: | None |
| Torque: | 20 Nm |
| Supply voltage: | 24 V AC/DC |
| Degree of protection (NEMA): | 3 |
