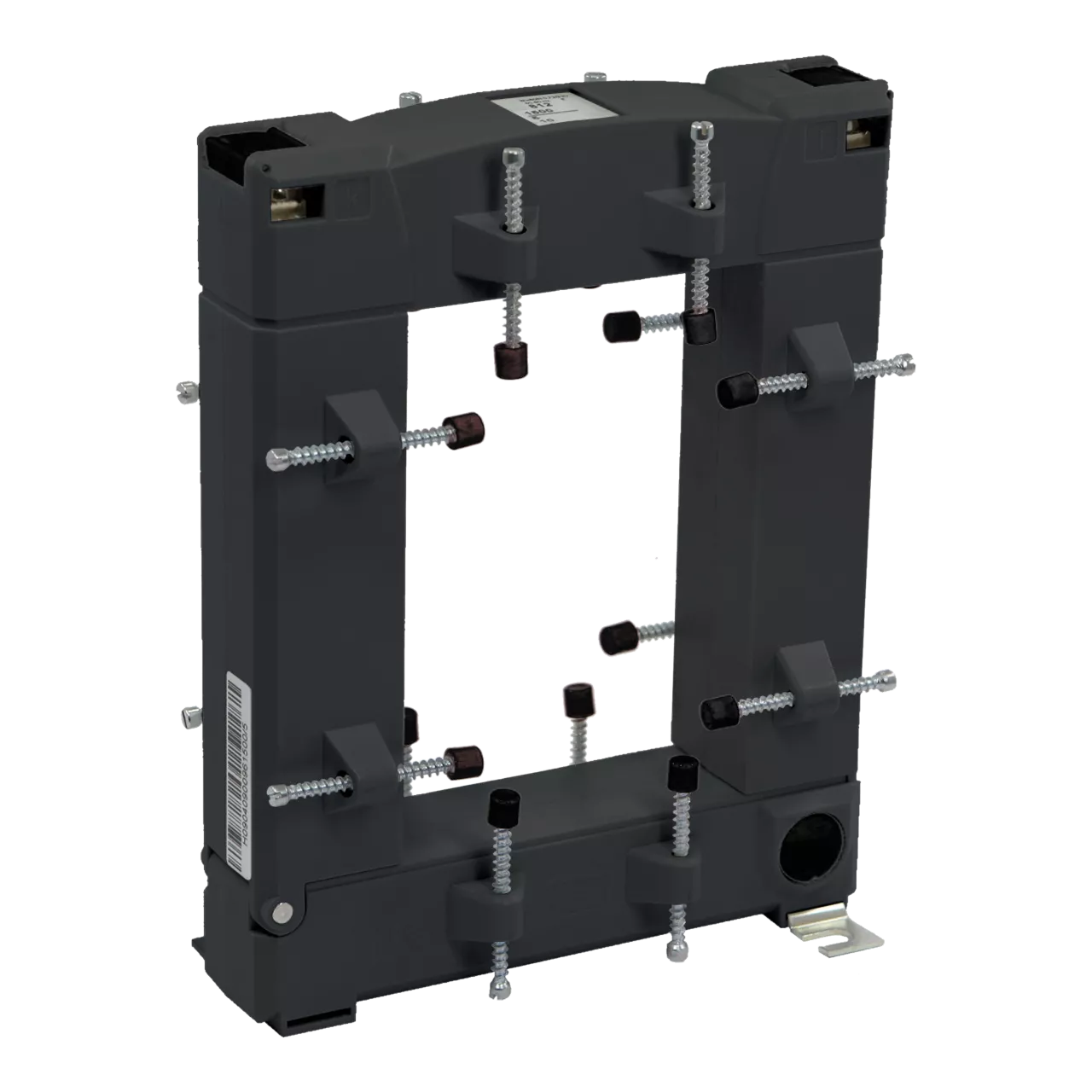

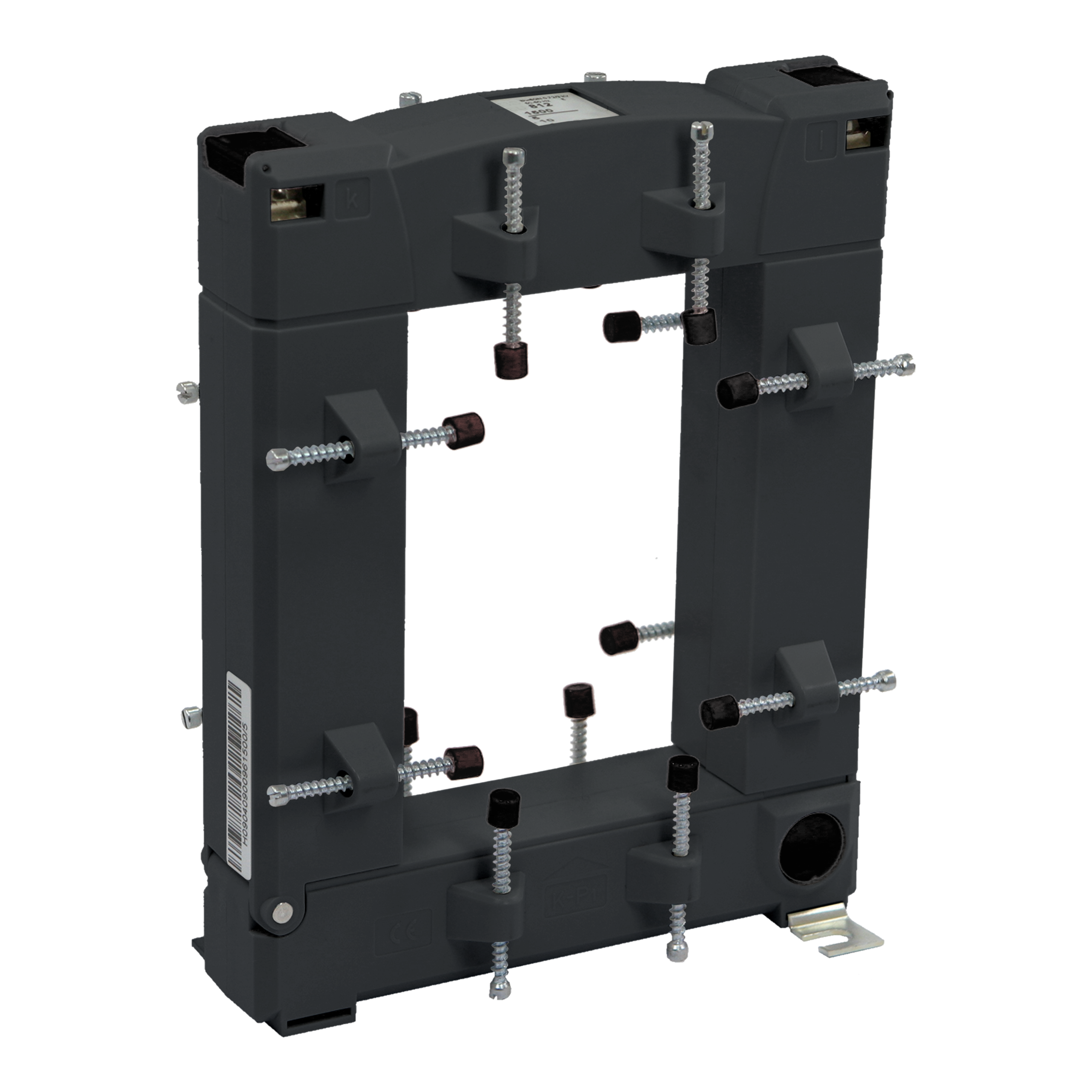

PowerLogic Przekładnik z otwieranym rdzeniem 600/5A 2,5VA klasa 0,5
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | METSECT5GG060 |
| GTIN(EAN) | 3606489607975 |
| Price unit | piece |
| Catalog price | 2 474,76 zł (2 012,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekładnik ten, standardowy dla szyn zbiorczych, ma prąd znamionowy linii 600 A i prąd wtórny 5 A. Przekładnik ten posiada otwór 85 mm x 125 mm. Kompatybilność z pojedynczym wyjściem dla pręta: 80 mm x 120 mm. Klasa obciążenia i dokładności: klasa 0.5 moc maksymalna: 2,5 VA.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,46 kg |
| ETIM class: | Current transformer |
| Overcurrent limiting factor: | FS 5 |
| Width opening: | 85 - 85 mm |
| Height opening: | 125 - 125 mm |
| Accuracy class: | 0.5 |
| With shock protection: | no |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 2.5 VA |
| Opening diameter: | 0 mm |
| With copper rail: | no |
| Number of primary inputs: | 1 |
| Calibrated: | no |
| Secondary connection: | Screw connection |
| Model: | Through-feed current converter |
| Rated primary current: | 600 A |
| Snap mounting: | no |
