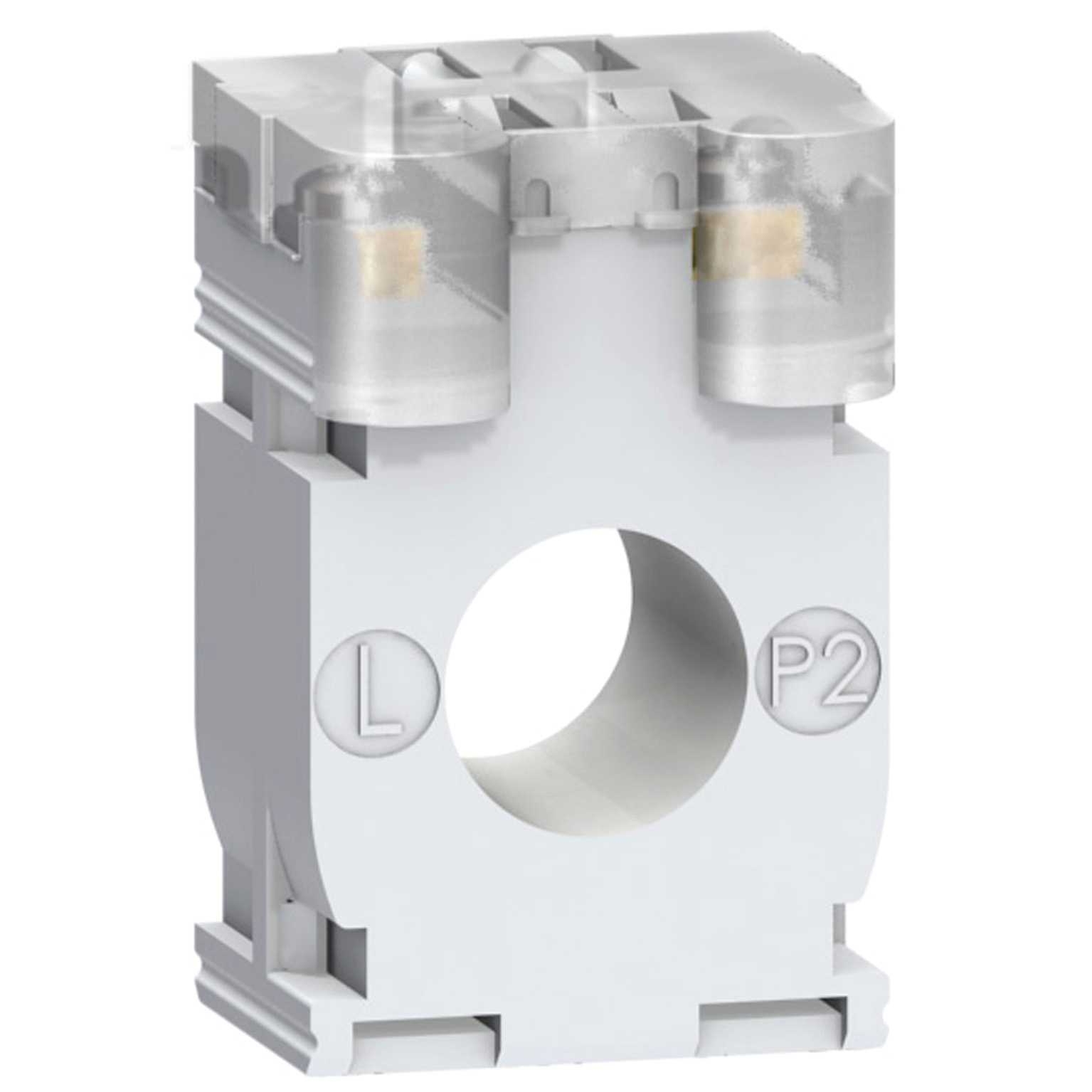

PowerLogic Przekładnik prądowy DIN 75/5 kabel śr21
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | METSECT5CC008 |
GTIN(EAN) | 3303431123421 |
Price unit | piece |
Catalog price | 270,60 zł (220,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten transformator prądowy, tropikalizowany dla kabli, ma prąd znamionowy linii 75 A i prąd wtórny 5 A. Ten przekładnik prądowy umożliwia uzyskanie maksymalnej średnicy zewnętrznej kabla wynoszącej 21 mm. Klasa obciążenia i dokładności: klasa 1 moc maksymalna: 1,5 VA, maksymalna moc klasy 3: 2,5 VA.
Additional features:
Information | Value |
---|---|
Gross weight: | 194 g |
ETIM class: | Current transformer |
Overcurrent limiting factor: | FS 5 |
Width opening: | 0 - 0 mm |
Height opening: | 0 - 0 mm |
Accuracy class: | 1 |
With shock protection: | no |
Rated secondary current: | 5 A |
Rated secondary apparent power: | 2.5 VA |
Opening diameter: | 21 mm |
With copper rail: | no |
Number of primary inputs: | 1 |
Calibrated: | no |
Secondary connection: | Screw connection |
Model: | Through-feed current converter |
Rated primary current: | 75 A |
Snap mounting: | no |
