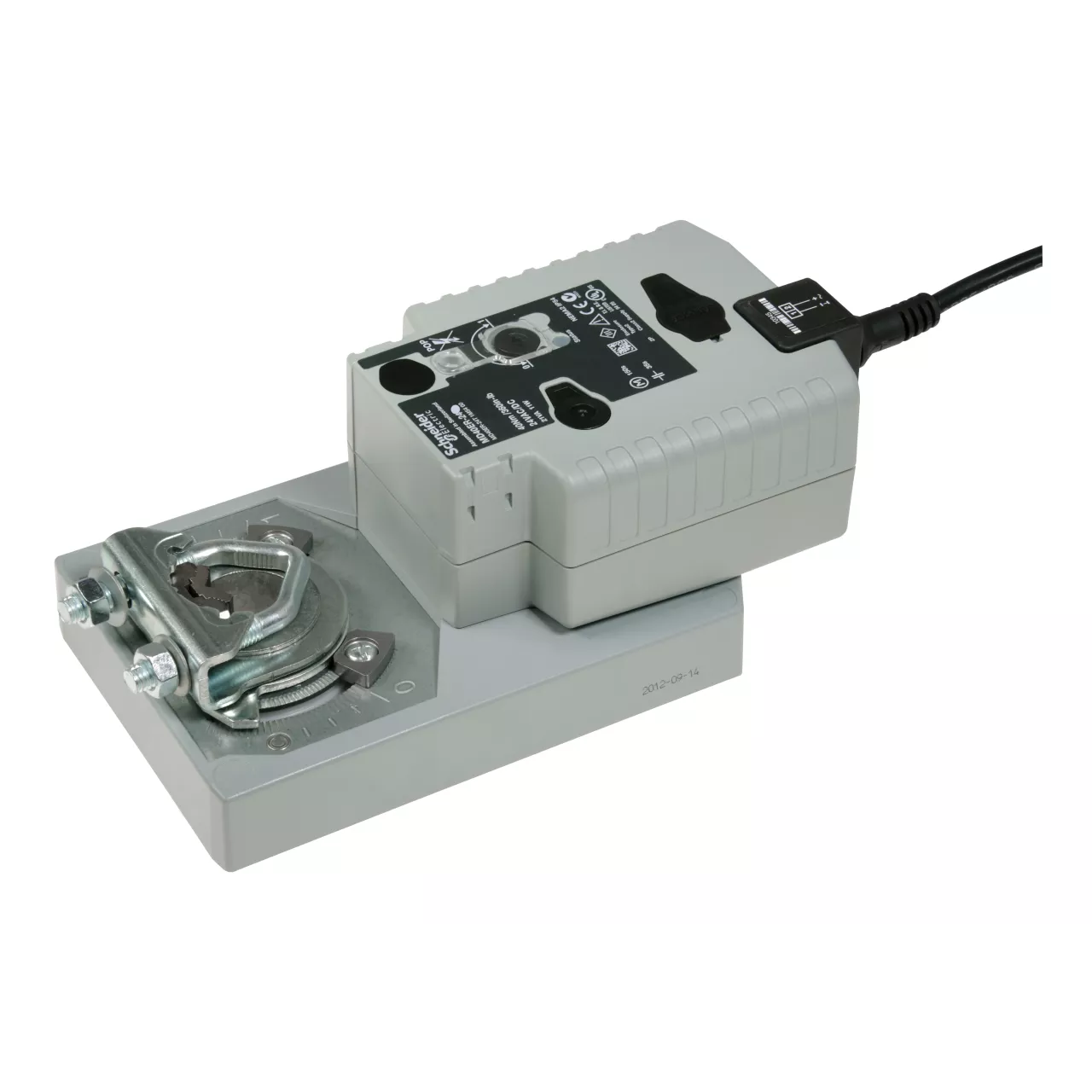

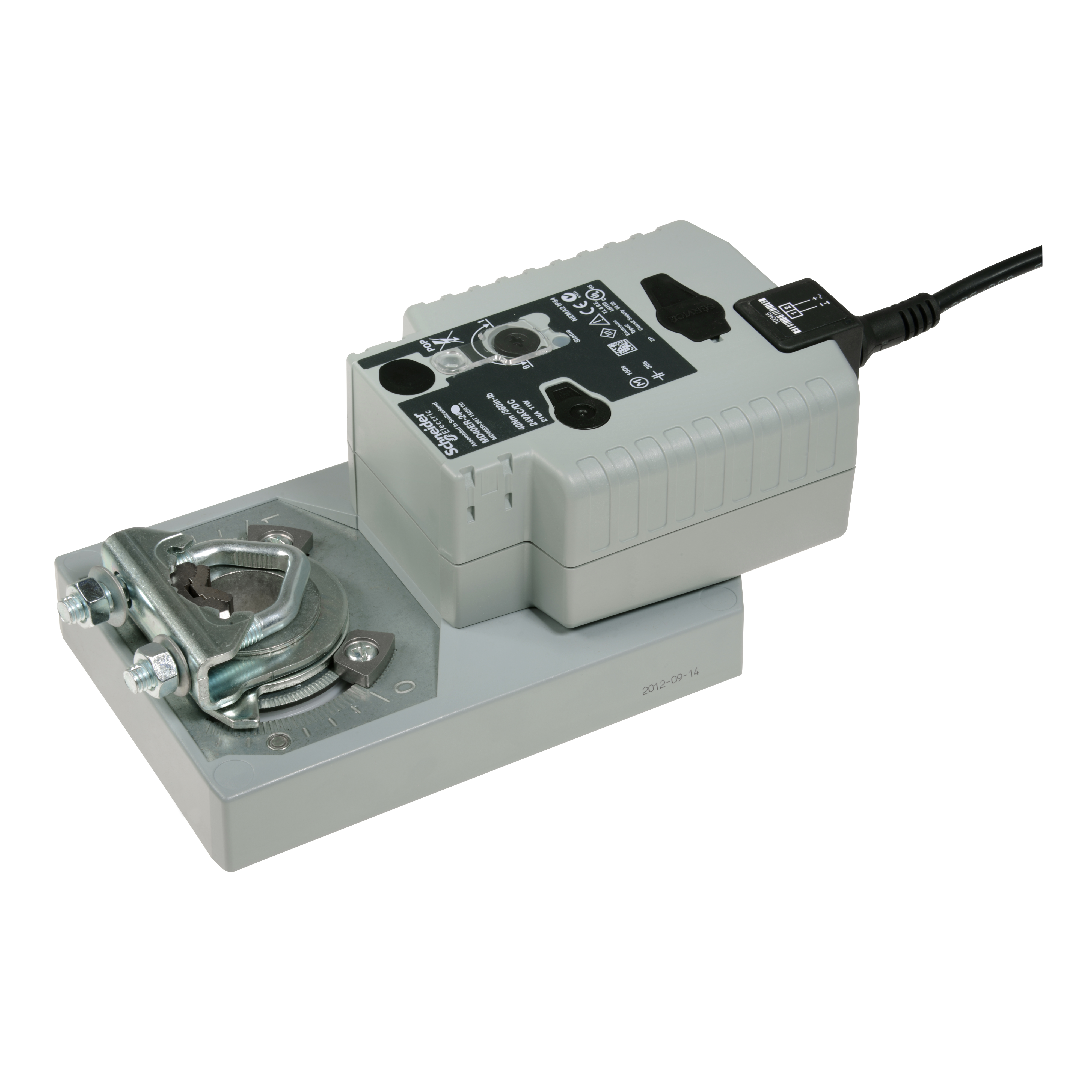

MD40ER, siłownik przepustnicy, elektronicznie zasilany powrót, 40 Nm, sterowanie 2-10V, zasilanie 24 VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | MD40ER-24M |
GTIN(EAN) | 3606481515155 |
Price unit | piece |
Catalog price | 6 642,00 zł (5 400,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MD40ER-24M 1M54 00.
Additional features:
Information | Value |
---|---|
Gross weight: | 2,16 kg |
ETIM class: | Electric servomotor |
Transmission: | Hydraulic |
Auxiliary contacts: | no |
Explosion-proof: | yes |
Housing material: | Other |
Max. angle of rotation: | 95 ° |
With top flange direct mount according to ISO 5211: | no |
Degree of protection (IP): | IP54 |
End contacts: | None |
Auxiliary contacts optional: | no |
Adjustable operating range: | no |
Allowable relative humidity: | 0 - 95 % |
Principle of operation safety function: | Other |
Suitable for air accessory: | no |
Type of safety function: | Other |
Automatic stroke recognition: | no |
With safety function: | yes |
Depth: | 60 mm |
Connection cable length: | 1 m |
Width: | 116 mm |
Suitable for valve: | no |
With mechanical setting indicator: | yes |
Model: | Rotating |
Deactivated when closed: | no |
Max. electric power input: | 21 VA |
Connection to stop valve: | None |
Return at zero supply voltage: | no |
Adjustable position feedback signal: | yes |
Suitable for manual operation: | no |
Control signal: | 2-10 V |
Potential free switch contact: | no |
Ambient temperature: | -30 - 50 °C |
Regulation type splitrange: | no |
Regulation type modulating: | yes |
Regulation type on/off: | no |
Height: | 179 mm |
Operating time: | 150 s |
Torque: | 40 Nm |
Supply voltage: | 24 V AC |
Degree of protection (NEMA): | 2 |
