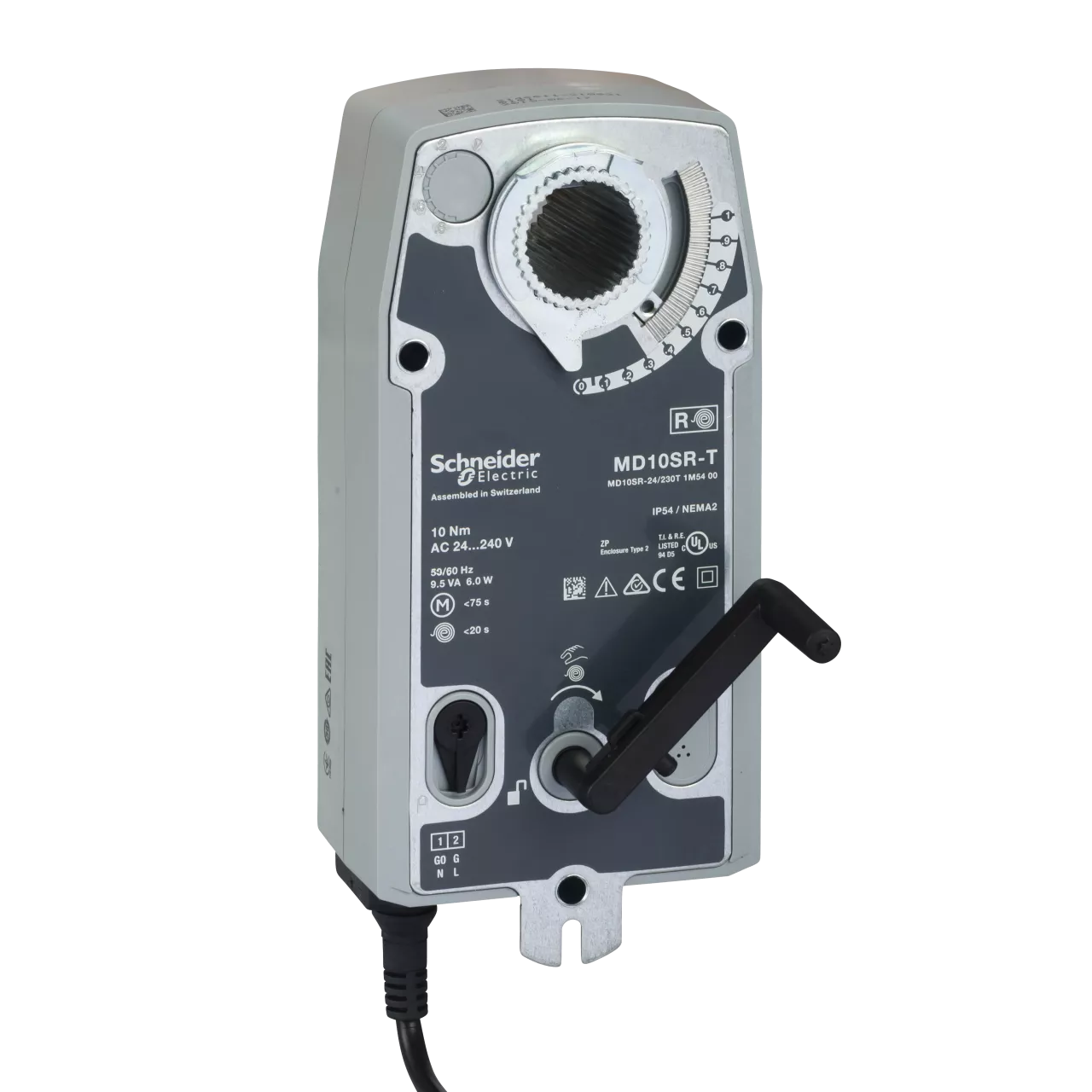

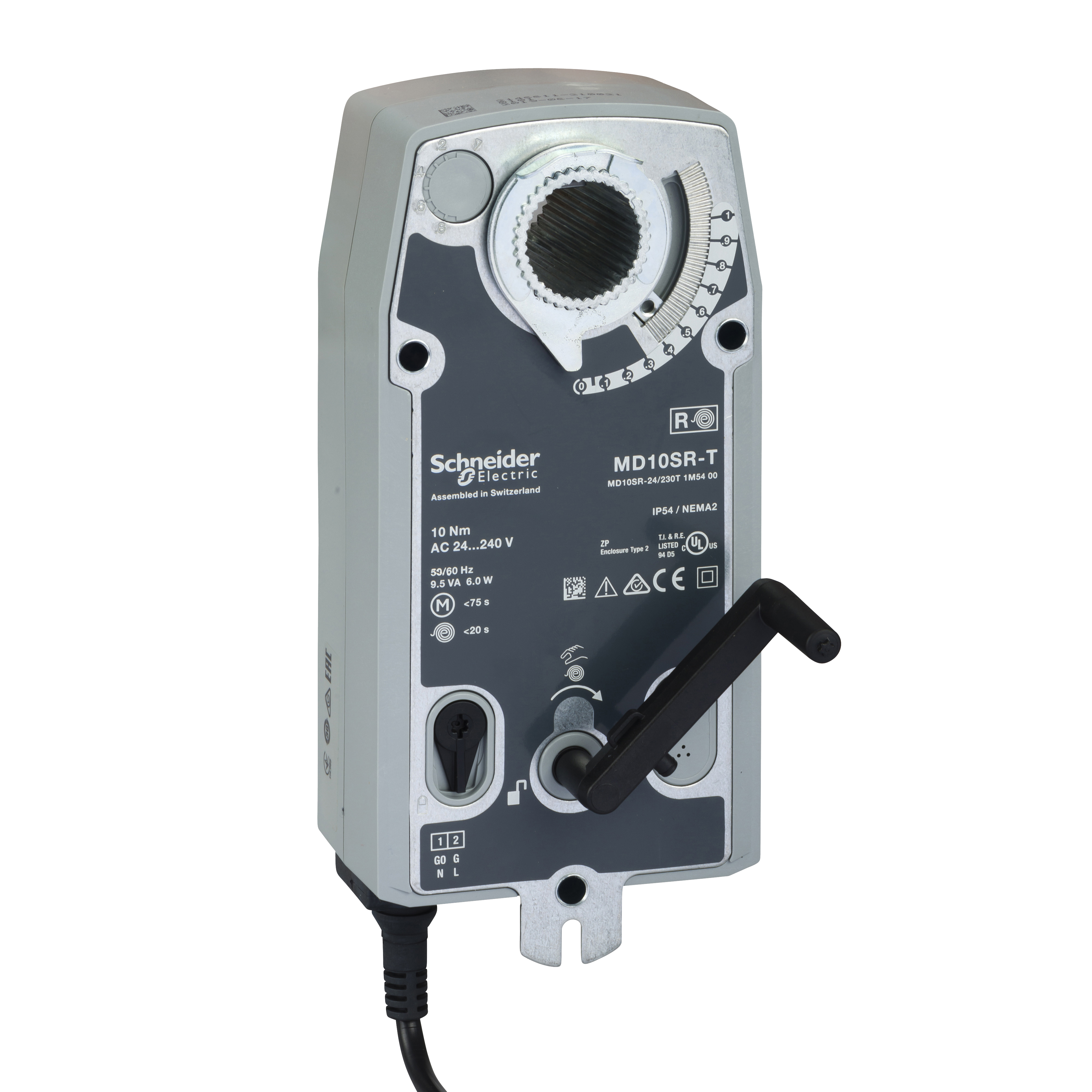

MD10SR, siłownik przepustnicy, sprężyna powrotna, 10 Nm, sterowanie on/off, zasilanie 24 VAC/DC, przekaźniki
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | MD10SR-24TS |
| GTIN(EAN) | 3606489660291 |
| Price unit | piece |
| Catalog price | 1 660,50 zł (1 350,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
MD10 SR to kompaktowy siłownik przepustnicy sprężynowej na powrocie do pracy przepustnic wentylacyjnych do 2 m² w instalacjach serwisowych budynku. Zasilanie 24 Vac/Vdc. Sygnał Sterowania Wł./Wył. Moment dokręcenia: 1 Nm, stopień ochrony IP 54. III Bardzo niskie napięcie. Regulowany kąt obrotu: ...maks. 95°.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 2,24 kg |
| ETIM class: | Electric servomotor |
| Transmission: | Magnetic |
| Auxiliary contacts: | yes |
| Explosion-proof: | no |
| Housing material: | Other |
| Max. angle of rotation: | 95 ° |
| With top flange direct mount according to ISO 5211: | no |
| Self-adjusting travel length: | no |
| Degree of protection (IP): | IP54 |
| End contacts: | None |
| Auxiliary contacts optional: | no |
| Adjustable operating range: | yes |
| Energy consumption in operation: | 6 W |
| Allowable relative humidity: | 0 - 95 % |
| Suitable for air accessory: | yes |
| Type of safety function: | Spring |
| Automatic stroke recognition: | no |
| With safety function: | no |
| Depth: | 93 mm |
| Connection cable length: | 1 m |
| Width: | 126 mm |
| Suitable for valve: | no |
| With mechanical setting indicator: | yes |
| Model: | Rotating |
| Deactivated when closed: | no |
| Max. electric power input: | 8.5 VA |
| Connection to stop valve: | None |
| Return at zero supply voltage: | no |
| Adjustable position feedback signal: | yes |
| Suitable for manual operation: | yes |
| Control signal: | Two-point |
| Potential free switch contact: | no |
| Ambient temperature: | -30 - 50 °C |
| Regulation type splitrange: | no |
| Regulation type modulating: | yes |
| Regulation type on/off: | yes |
| Height: | 107 mm |
| Operating time: | 75 s |
| Position reporting system: | 2-10 V |
| Torque: | 10 Nm |
| Supply voltage: | 24 V AC/DC |
| Degree of protection (NEMA): | 2 |
