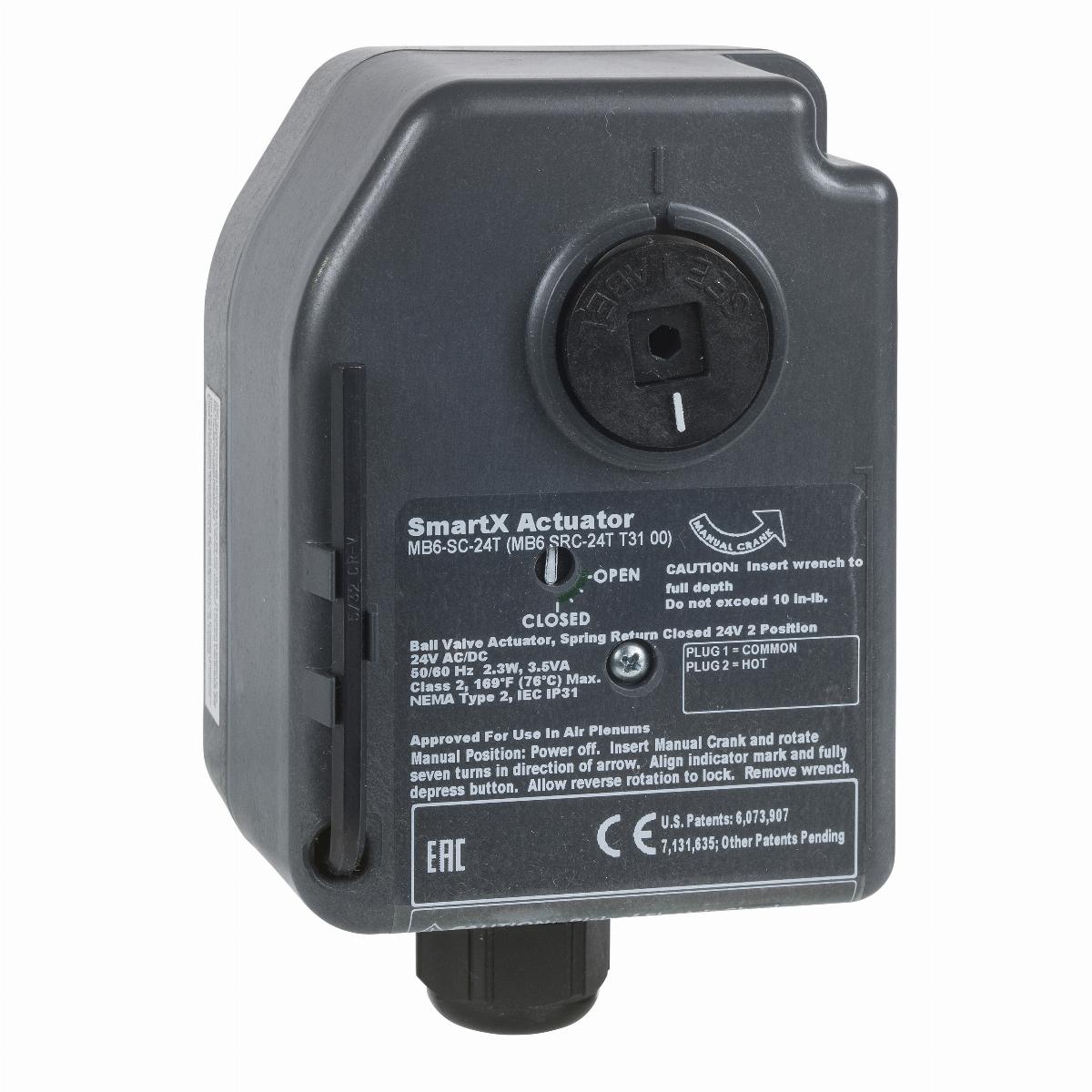

MB6, siłownik zaworu, sprężyna powrotna, 6 Nm, sterowanie on/off, zasilanie 24 VAC, NC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | MB6-SC-24T |
GTIN(EAN) | 711426559163 |
Price unit | piece |
Catalog price | 1 180,80 zł (960,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Siłownik zaworu kulowego do zaworów kulowych VB200, VB210, VB300 i VB310. Górne złącze siłownika zapewnia szybkie i proste (bez użycia narzędzi) podłączenie siłownika do korpusu zaworu. sterowanie dwoma pozycjami. Sprężynowy zawór powrotny zamknięty.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,5 kg |
ETIM class: | Electric servomotor |
Auxiliary contacts: | no |
Explosion-proof: | no |
Housing material: | Other |
With top flange direct mount according to ISO 5211: | no |
Self-adjusting travel length: | no |
Degree of protection (IP): | IP53 |
End contacts: | None |
Auxiliary contacts optional: | no |
Adjustable operating range: | no |
Energy consumption in operation: | 2.3 W |
Allowable relative humidity: | 5 - 95 % |
Suitable for air accessory: | no |
Automatic stroke recognition: | no |
With safety function: | no |
Suitable for valve: | yes |
With mechanical setting indicator: | yes |
Model: | Rotating |
Deactivated when closed: | no |
Max. electric power input: | 3.5 VA |
Connection to stop valve: | Other |
Return at zero supply voltage: | no |
Adjustable position feedback signal: | no |
Suitable for manual operation: | no |
Control signal: | Other |
Potential free switch contact: | no |
Ambient temperature: | 0 - 76 °C |
Regulation type splitrange: | no |
Regulation type modulating: | no |
Regulation type on/off: | yes |
Position reporting system: | None |
Torque: | 6 Nm |
Supply voltage: | 24 V AC/DC |
Degree of protection (NEMA): | 3 |
