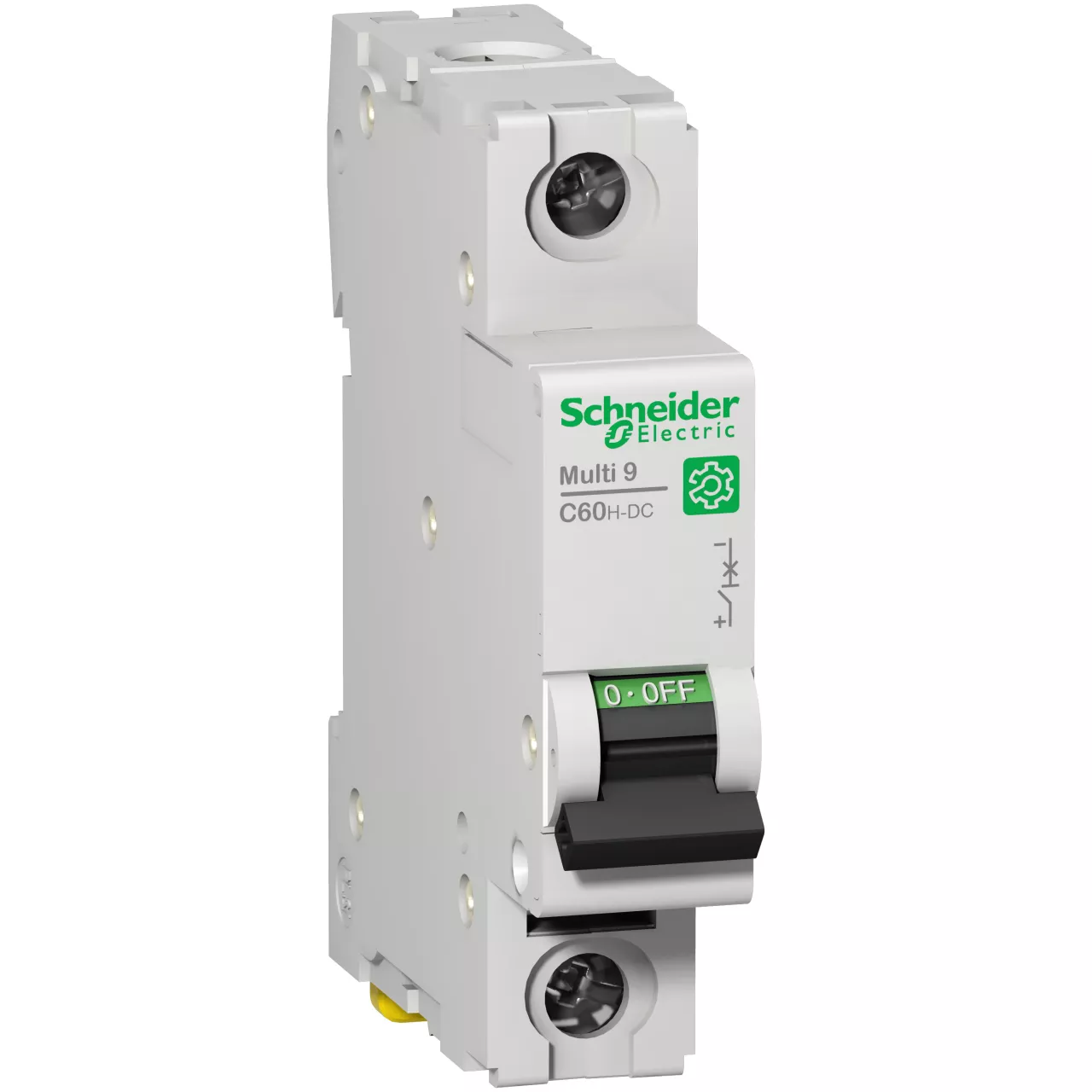

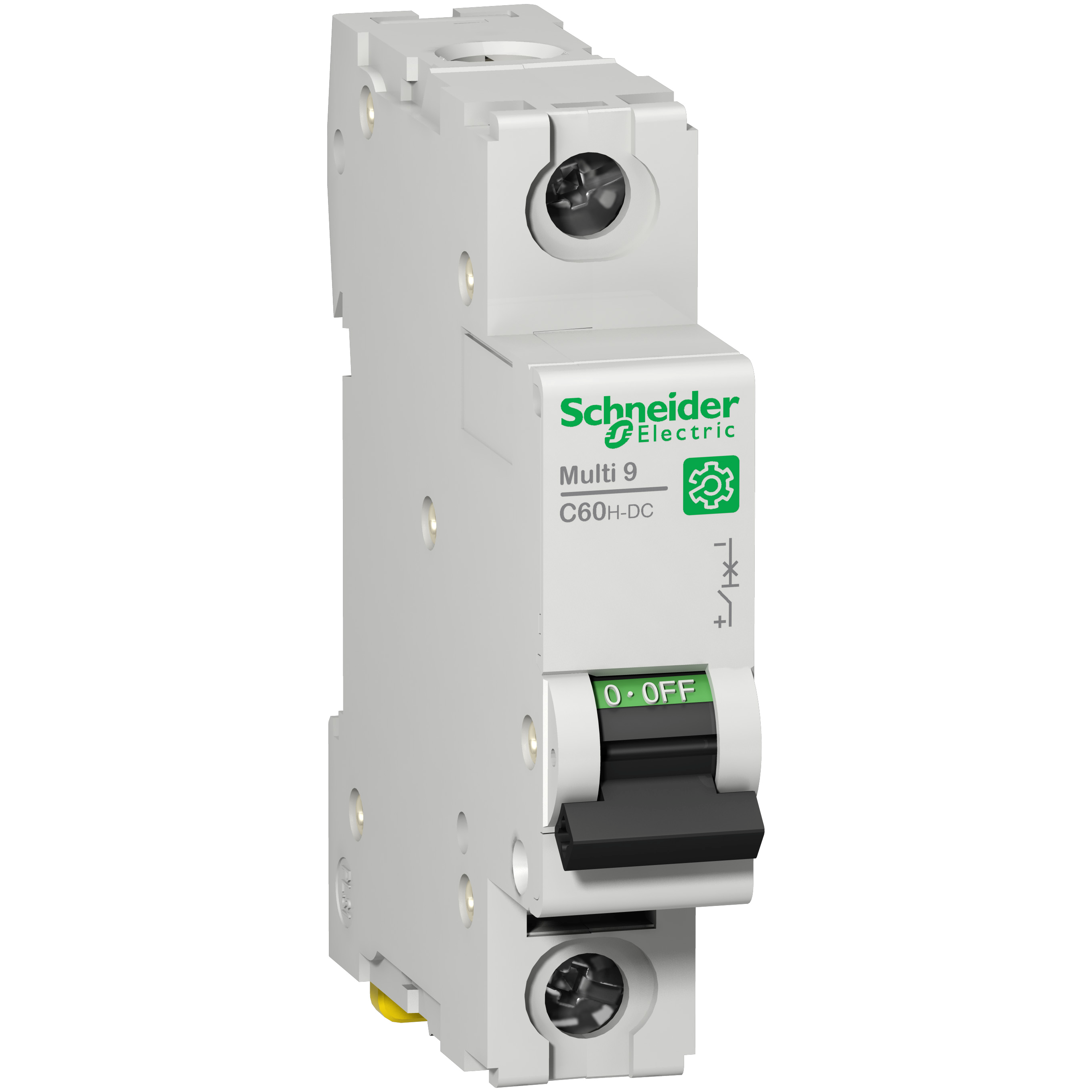

Wyłącznik nadprądowy Multi9 C60H-DC-C6-1
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | M9U21106 |
| GTIN(EAN) | 3606480741623 |
| Price unit | piece |
| Catalog price | 355,47 zł (289,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 113 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Number of poles (total): | 1 |
| Built-in depth: | 44 mm |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Explosion-proof: | no |
| Additional equipment possible: | yes |
| Voltage type: | DC |
| Concurrently switching neutral conductor: | no |
| Degree of protection (IP): | IP20 |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Release characteristic: | C |
| Width in number of modular spacings: | 1 |
| Number of protected poles: | 1 |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -25 - 70 °C |
| Over voltage category: | 4 |
| Rated current: | 6 A |
| Rated voltage: | 250 V |
| Rated insulation voltage Ui: | 500 V |
| Connectable conductor cross section multi-wired: | 1 - 16 mm² |
| Pollution degree: | 3 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
