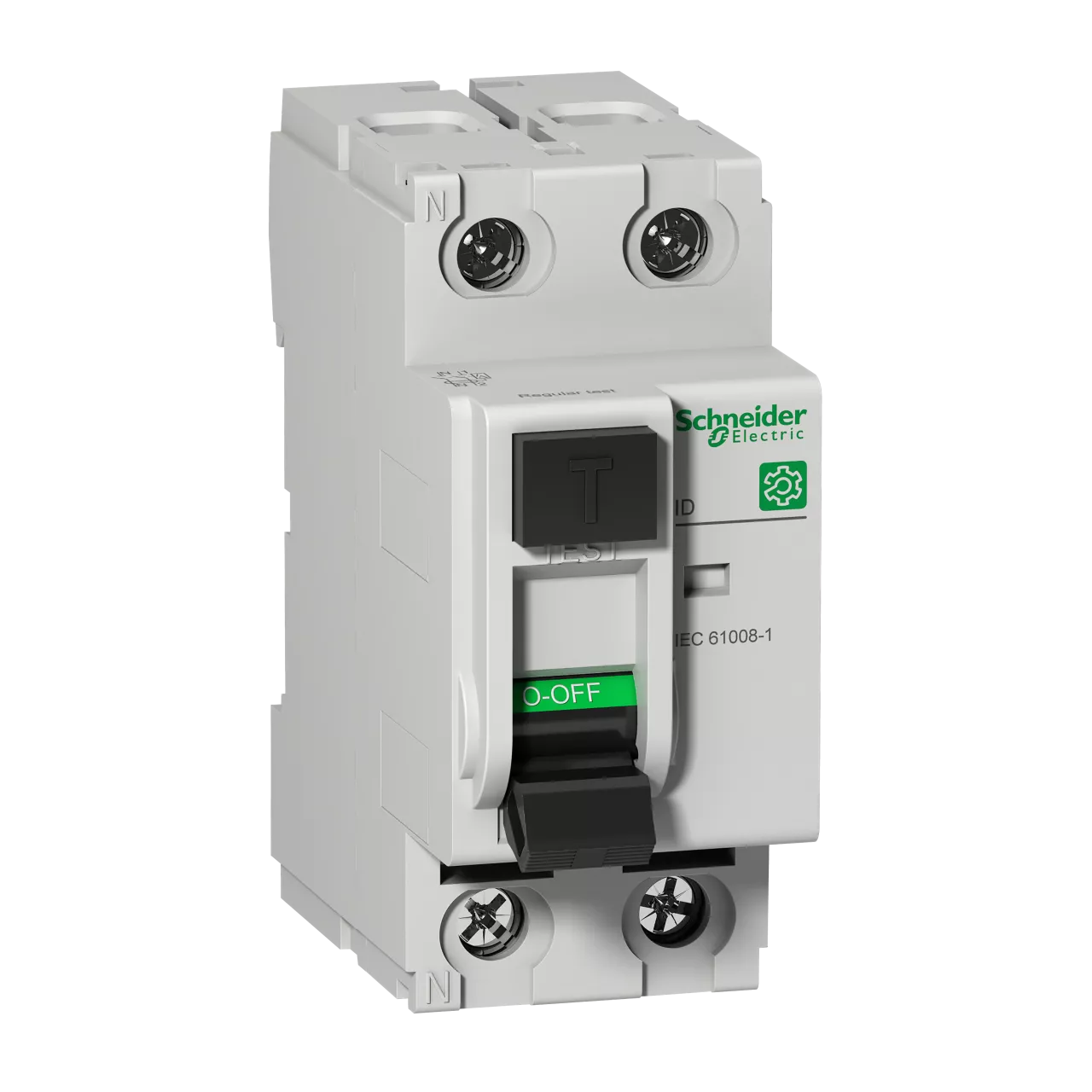

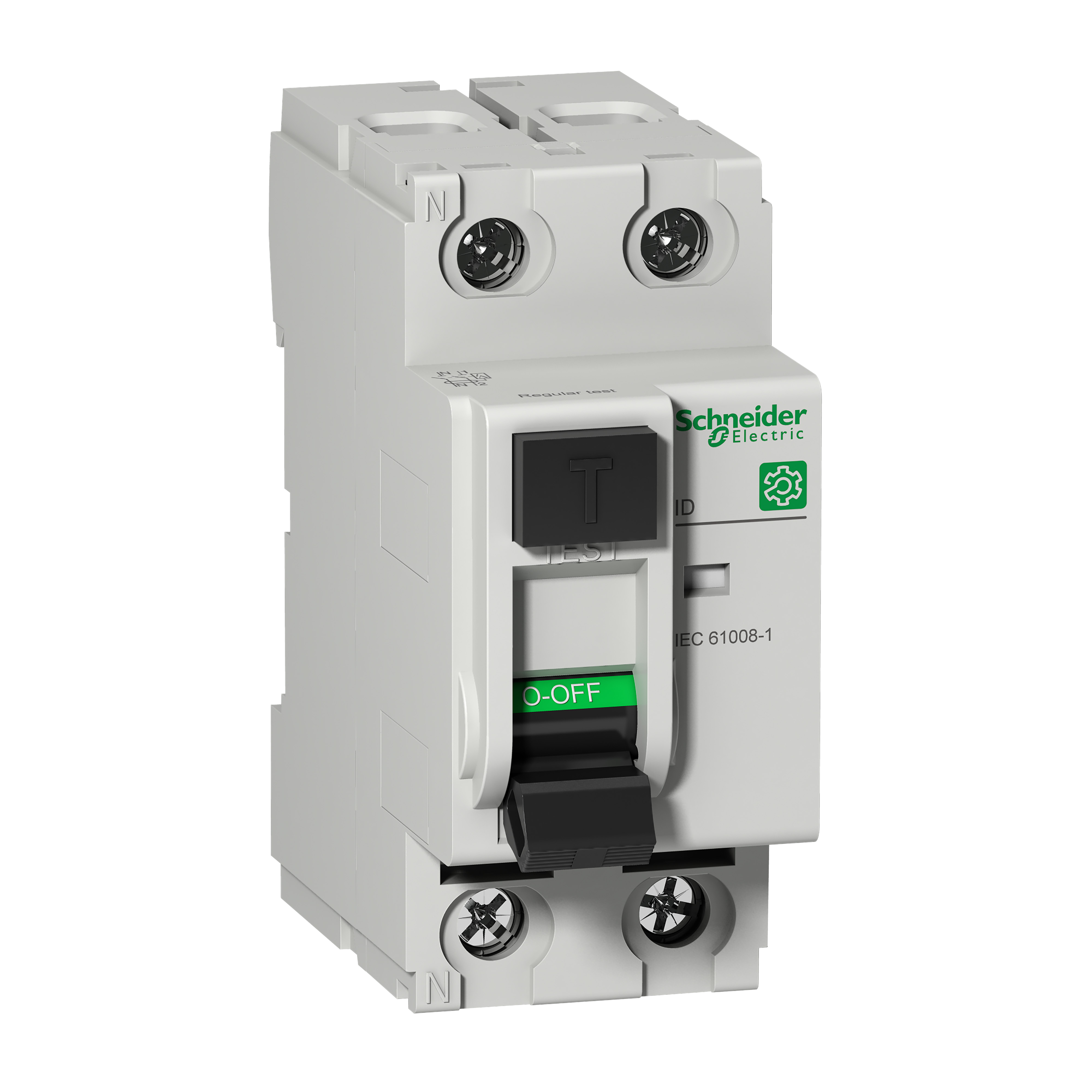

Wyłącznik różnicowoprądowy Multi9 - 2P - 40A - 300mA s - typ A-SI
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | M9R35240 |
| GTIN(EAN) | 3606480578366 |
| Price unit | piece |
| Catalog price | 972,93 zł (791,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 203,9 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Short-time delayed tripping: | yes |
| Built-in depth: | 44 mm |
| Selective protection: | yes |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Explosion-proof: | no |
| Leakage current type: | Other |
| Additional equipment possible: | no |
| Voltage type: | AC |
| Surge current capacity: | 3 kA |
| Degree of protection (IP): | IP20 |
| Number of poles: | 2 |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Width in number of modular spacings: | 2 |
| Rated fault current: | 0.3 A |
| Frequency: | 50 Hz |
| Mounting method: | DIN rail |
| Ambient temperature during operating: | -25 - 40 °C |
| Rated current: | 40 A |
| Rated voltage: | 240 V |
| Rated insulation voltage Ui: | 440 V |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Pollution degree: | 3 |
| With interlocking device: | no |
